11.1V 10Ah Low Temperature Lithium Ion Battery Design Solution of Intelligent Express Box

APR 19, 2019   Pageview:917

Intelligent express box is an equipment based on Internet of Things and can recognize, store, monitor and manage the express item. It combines intelligent delivery system with PC server. The PC server can manage all drop-in boxes in delivery system (such as the information of drop-in box, express item, users, etc.) and have integration analysis for all information. Couriers send the express items to designated site and store the items into drop-in box. Then the delivery system will send a massage for user automatically, including pick-up address and validate code. The user can take out the express items at any time when they are free to the drop-in box. This product aims to provide convenient time and place for users.


application environment

place

■indoor □outdoor

operating temperature/humidity

-20~60℃;40~60%RH

storage temperature/humidity

-20~60℃;50~70%RH

special performance

the requirements of charging and discharging under high-temperature & low-temperature

-20~55℃;-20~60℃

Charge at -20~55℃;

Discharge at -20~60℃

other requirements

expiration date

one year

explosive-proof grade

Ex Type/ equipment category/ gas group/ temperature group

waterproof grade

IP xx

dustproof grade

IP xx

dropping frequency

12 times

application features

operating voltage

9~12.6V

capacity

10000mAh

working hours

/

dimension

175*88*38mm

operating current

2.0A

maximum starting current

0.8A starting time:20ms

maximum continuous operating

5.0A

frequency and time

intermittent use(only use for payment)

capacity management

communication mode □SMBUS □I2C □HDQ

certification and environmental requirement of finished product

types

■ GB31241-2014(CQC)

■ CE

■ UL2054

■ UL60950

■ un38.3

■ RCM

■ KC

■ PSE

component verification

■ BIS

■ BMSI

■ REACH

■ RoHS

battery directive

halogen-free

other:

schematic

 design

project No.

06DQ036-01

specification

11582150/3S1P/11.4V/10000mAh

cell model

11582150/3.7V/10000mAh

guard plate and hardware configuration

IC

S-8254AAV-M6T1U

MOS

AO4407*4

PTC

/

NTC

10K±1%B=3435K±1%

other

/

encapsulation mode

fundamental protection□PVC+non-fundamental protection■housing+fundamental protection□housing+non-fundamental protection

key parameters

nominal voltage

11.4V

nominal capacity

10000mAh

dimension

175*88*38mm

internal resistance

≤ 50 m Ω

weight

800g

charging condition

2A

continuous discharge current

5A

protective current

15-25A

charging voltage

12.6V

End-off voltage

9V

cycle life

Charging and discharging requirements: charge at 0.5c, discharge at 0.5c

the cycle life is over 500 times.

charging temperature

-20~55℃

discharging temperature

-20~60℃

storage temperature

-20~60℃

temperature protection

/±/℃

key features

1、Have fundamental protective functions of overcharging, over discharging, overcurrent, short circuit, etc.

2、Ultra-low temperature charging and discharging function (at -20℃, 0.2C charging and discharging current, capacity retention ratio is about 90%

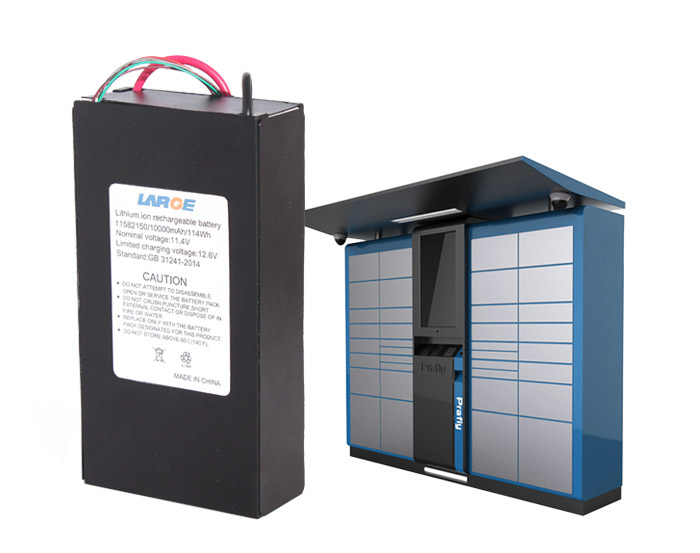

product pictures
