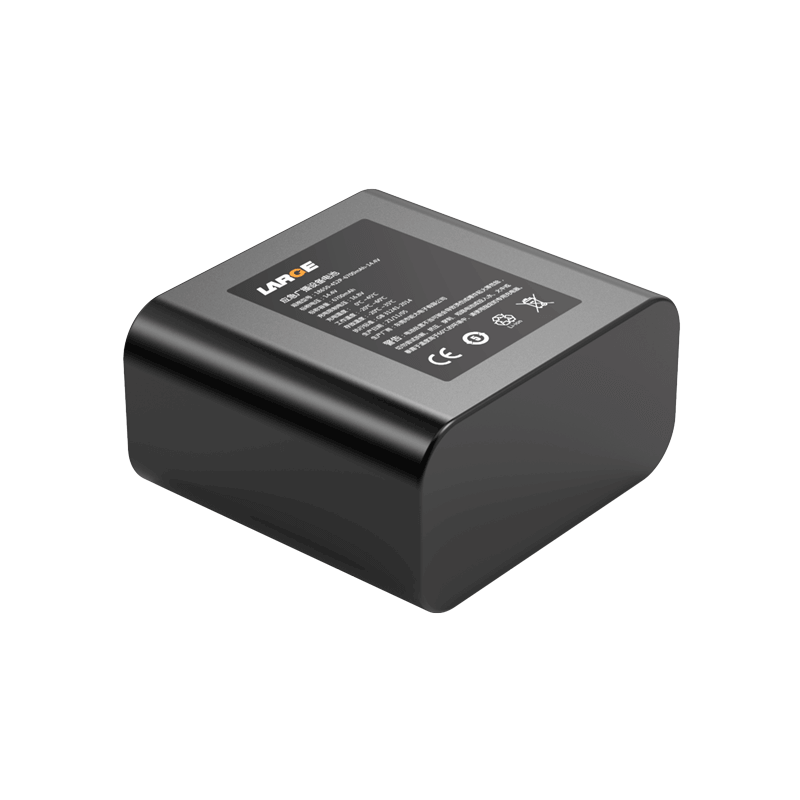

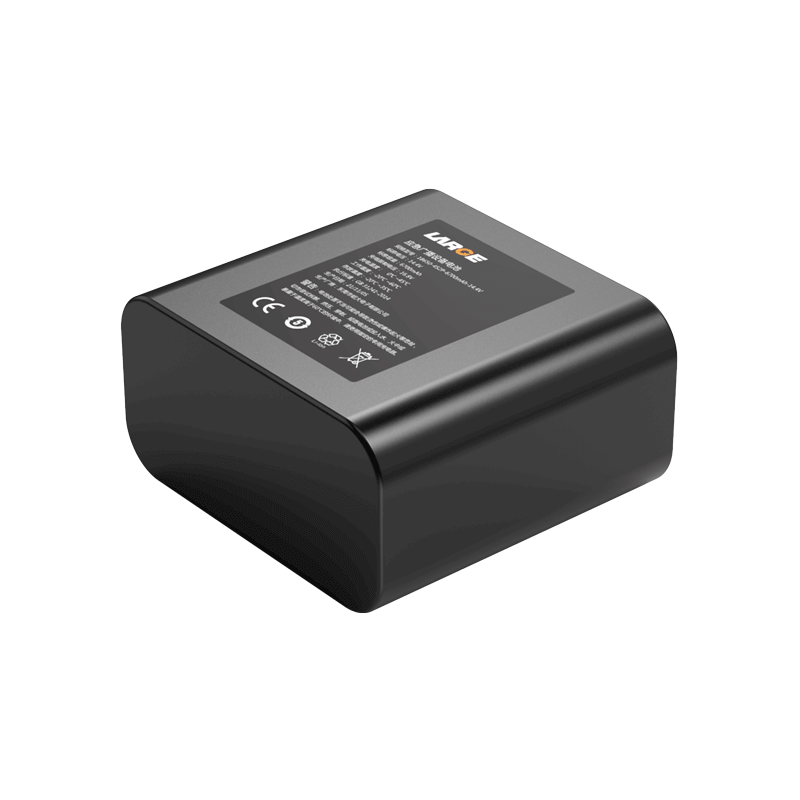

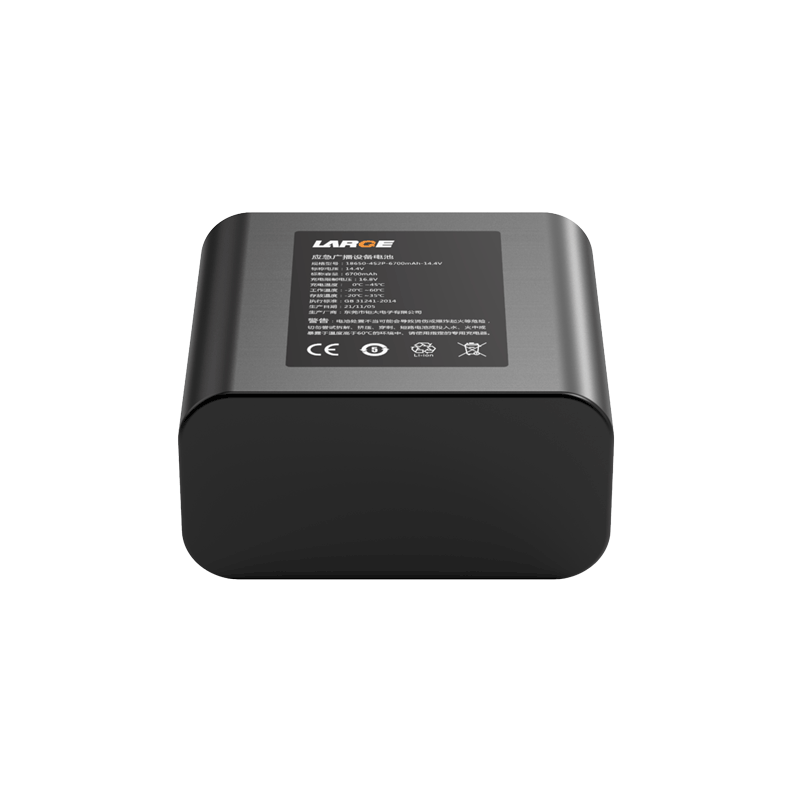

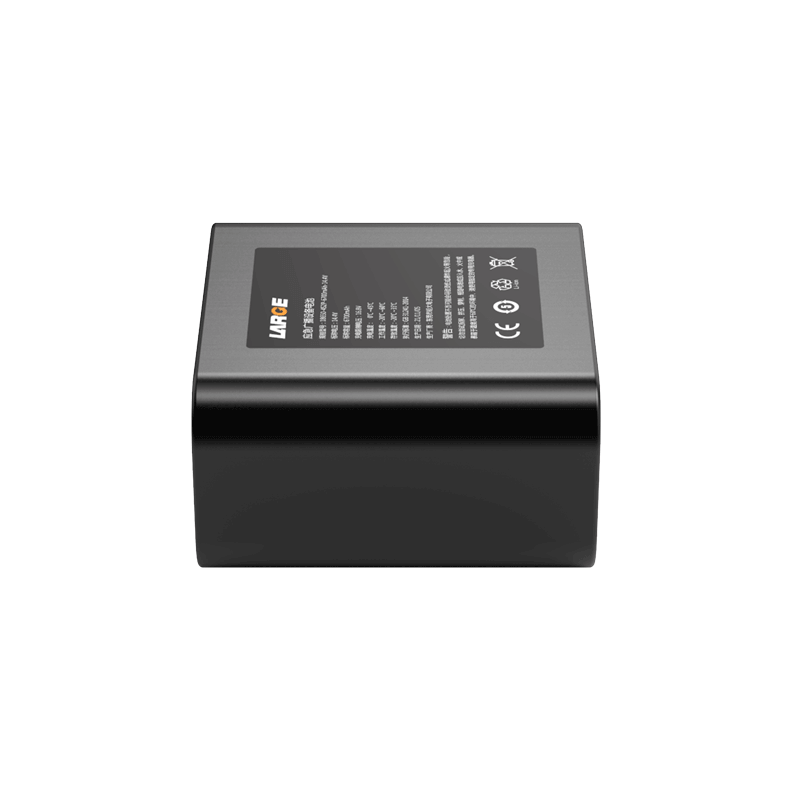

18650 6700mAh 14.4V Lishen Battery for Emergency Broadcasting Equipment

18650 6700mAh 14.4V Lishen Battery for Emergency Broadcasting Equipment
18650 6700mAh 14.4V Lishen Battery for Emergency Broadcasting Equipment
18650 6700mAh 14.4V Lishen Battery for Emergency Broadcasting Equipment
18650 6700mAh 14.4V Lishen Battery for Emergency Broadcasting Equipment

Product Detail

Product number: 08DQ0022-04T

Cell model: 18650-3350MAH-3.6V

Specification: 18650-4S2P-6700MAH-14.4V

Product size: 75*38.5*76mm (Max)

Nominal voltage: 14.4V

Nominal capacity: 6700mAh

Finished product internal resistance: ≤220mΩ

Charging voltage: 16.8V

Charging current: ≤3A

Discharge current: ≤6A

Discharge cut-off voltage: 11.2V

Battery weight: 310g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: Portable equipment, emergency set


Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.

2.Connector plug terminal: JST plug output mode is adopted to increase the conductivity reliability of the plug.

3.Battery protection management: Use special lithium battery protection chip with good stability, high precision monitoring, accurate control, temperature protection to eliminate security risks to the greatest extent.

4.Data communication management: TI-SMBus software management chip, SMBus communication precise data transmission, real-time battery status monitoring and control.

5.The battery pack is safe, has good discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
