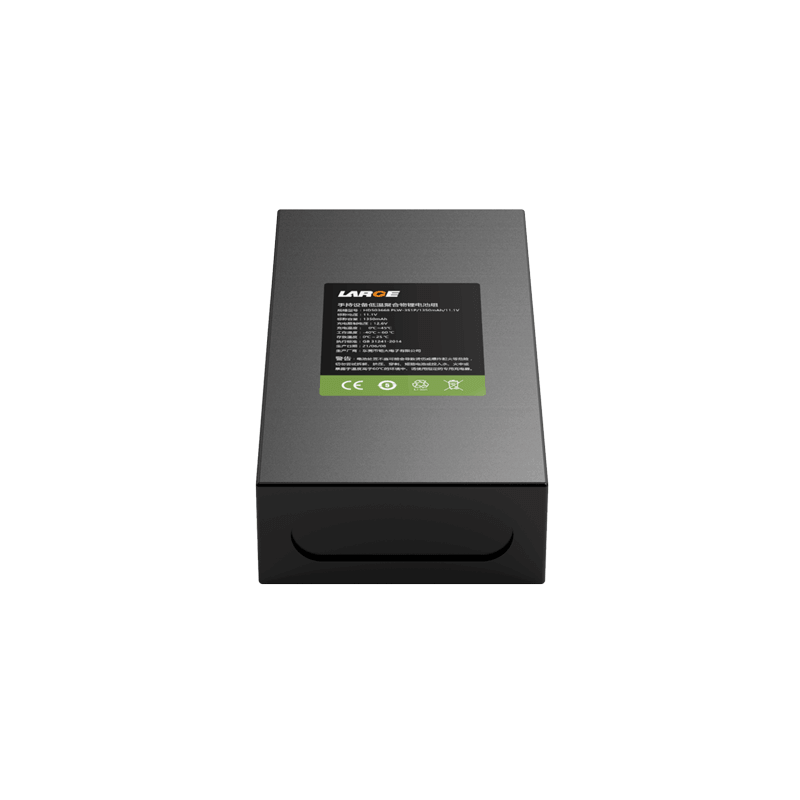

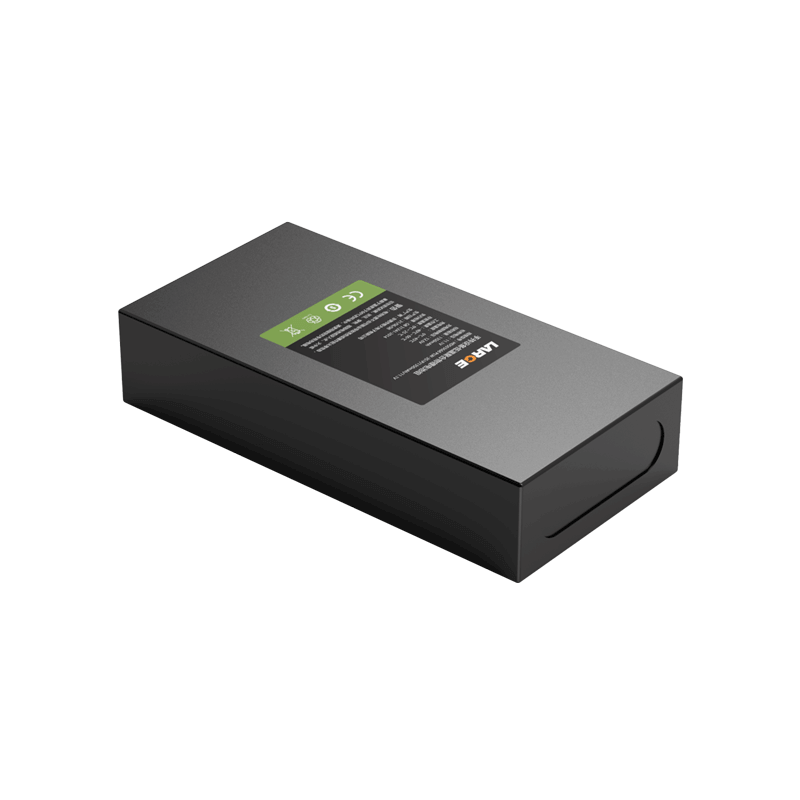

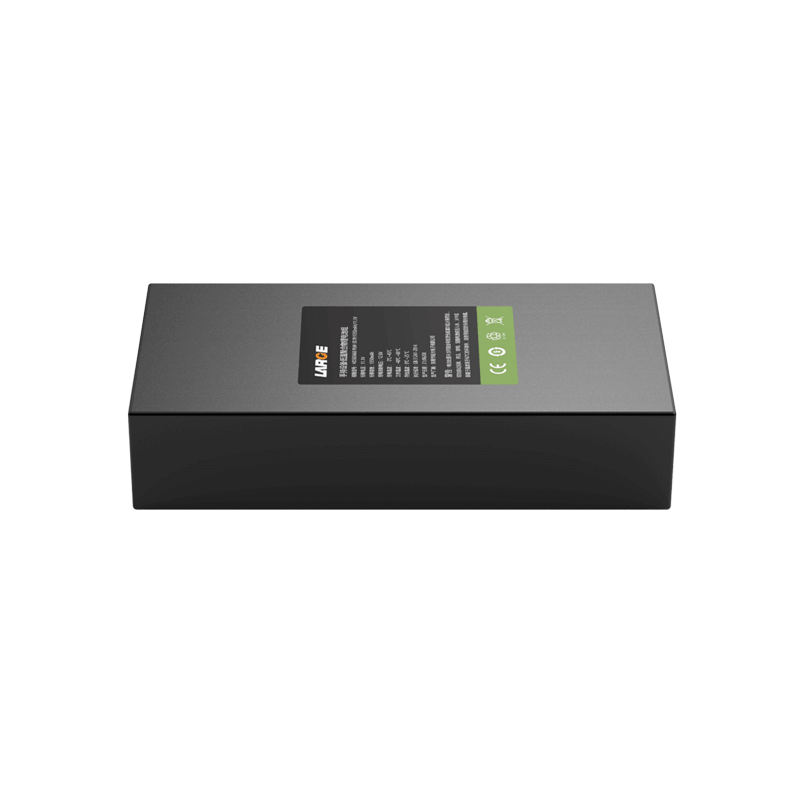

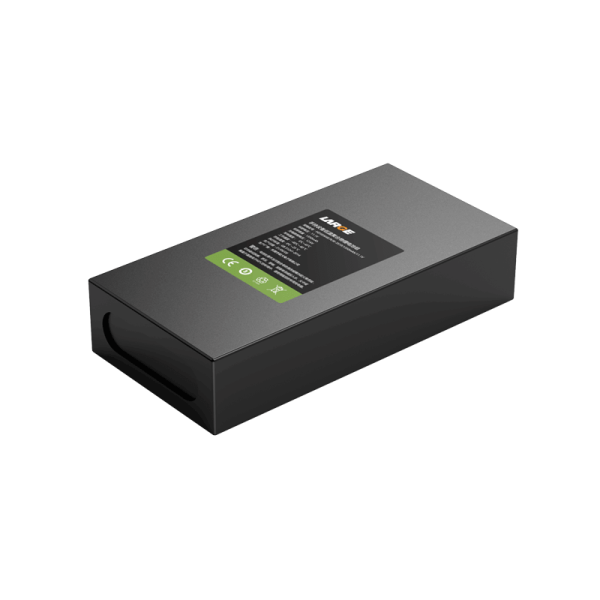

503668 11.1V 1350mAh Low Temperature Battery for Handheld Device

Product Detail

Project number: 01DQ0120-02

Cell model: 503668/1350mah /3.7V- low temperature

Battery specification: HD503668 PLW-3S1P/1350mAh/11.1V

Nominal voltage: 11.1V

Nominal capacity: 1350mAh

Charging voltage: 12.6V charging

Charging current: ≤675mA

Discharge current: 1350mA

Instantaneous discharge current: 2.7A

Discharge cut-off voltage: 3.0V

Internal resistance: ≤250mΩ

Battery weight: 100G

Product dimension: 15.5*36.5*73.0mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: 0 to 25 ° C

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Handheld devices

*
*
*
