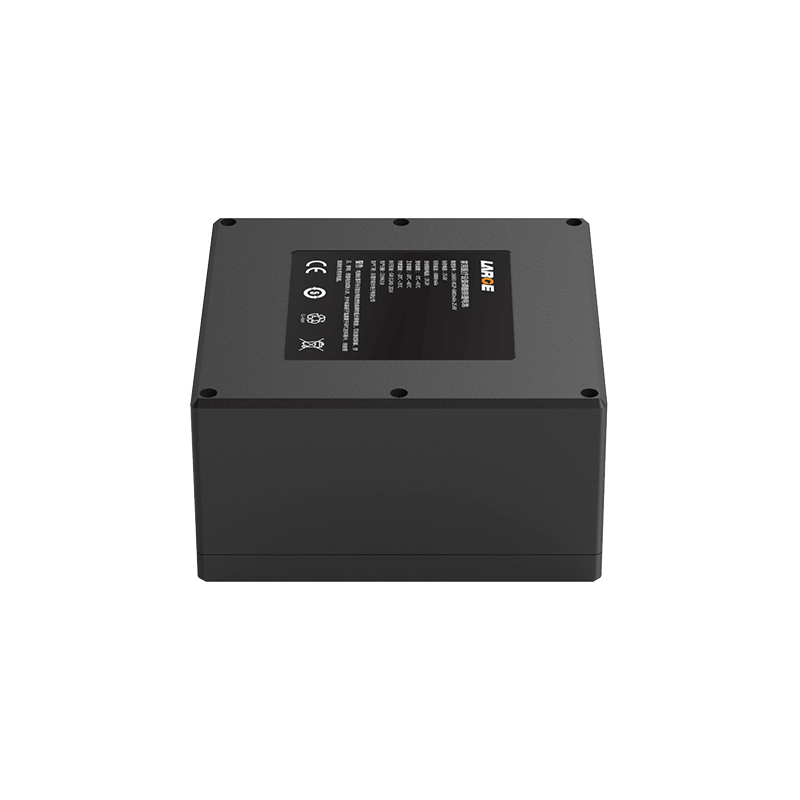

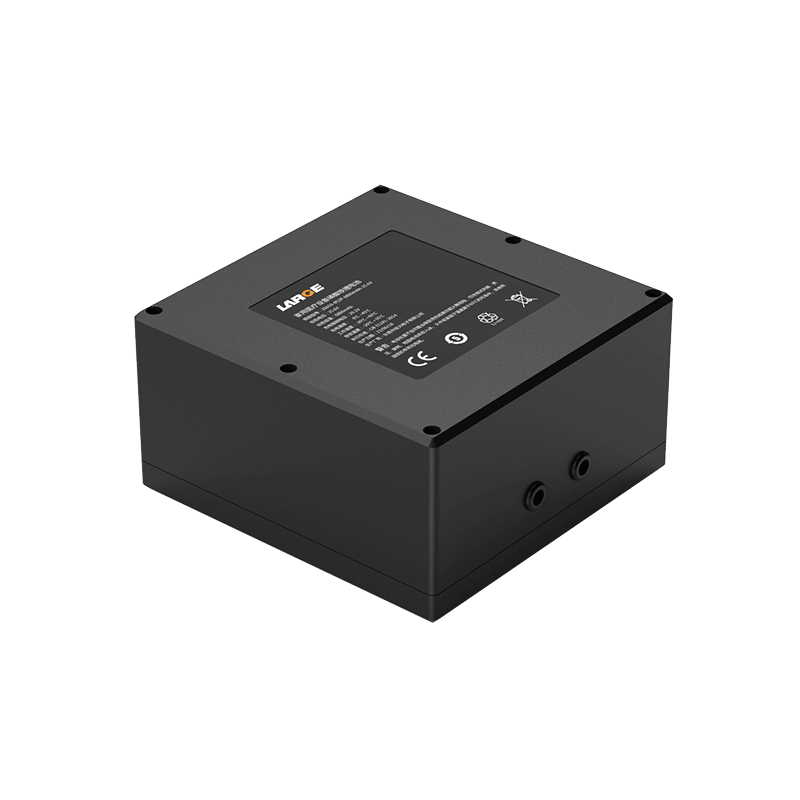

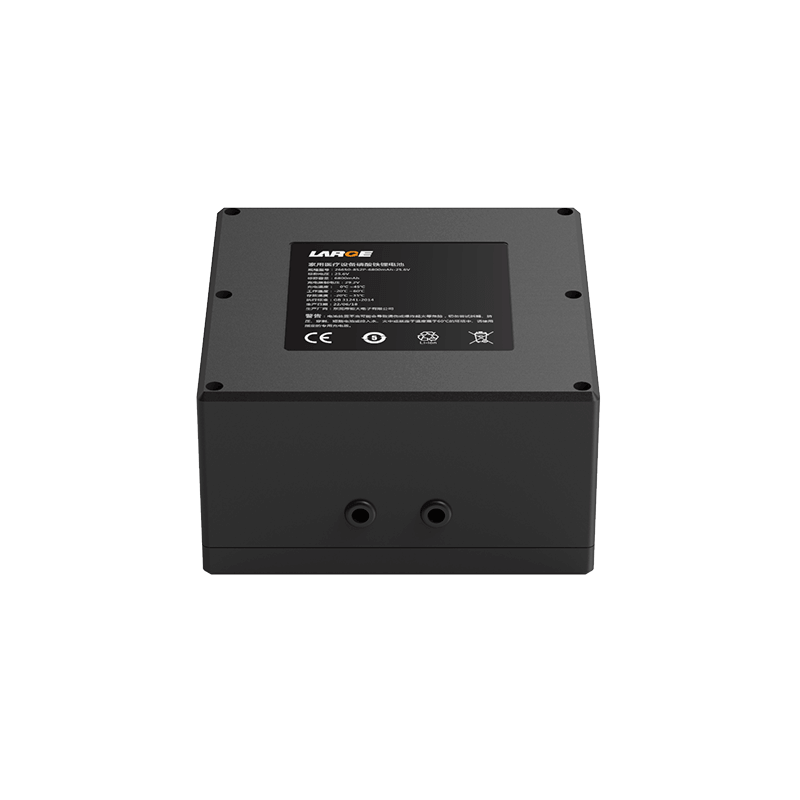

26650 25.6V 6800mAh LiFePO4 Battery for Household Medical Equipment

26650 25.6V 6800mAh LiFePO4 Battery for Household Medical Equipment
26650 25.6V 6800mAh LiFePO4 Battery for Household Medical Equipment
26650 25.6V 6800mAh LiFePO4 Battery for Household Medical Equipment
26650 25.6V 6800mAh LiFePO4 Battery for Household Medical Equipment

Product Detail

Product number: 08DQ0058-01

Cell model: 26650-3400mAh 3.2V

Battery specification: 26650-8S2P-6800mAh-25.6V

Product dimension: 140*136*74mm

Nominal voltage: 25.6V

Nominal capacity: 6800mAh

Finished internal resistance: ≤150mΩ

Charging voltage: 29.2V

Charging current: ≤5A

Discharge current: ≤8A

Discharge cut-off voltage: 18.4V

Battery weight: 2000g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery case: ABS+PC case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on

Application: Home medical equipment, portable medical equipment


Product Features

1.ABS+PC housing increases battery reliability and firmness;

2.The battery pack is assembled by special cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good vibration and impact resistance.

3.Connector plug output terminal: XT plug output mode increases the electrical reliability of the plug.

4.Battery protection management: Use special lithium battery protection chip, with good stability, high precision monitoring, accurate control, temperature protection and other functions, so as to maximize the elimination of safety hazards;

5.The battery pack has good safety, nice discharge performance,and long cycle life;

6.The battery pack has long cycle life, in line with the value of low carbon, energy saving, and environmental protection;

*
*
*
