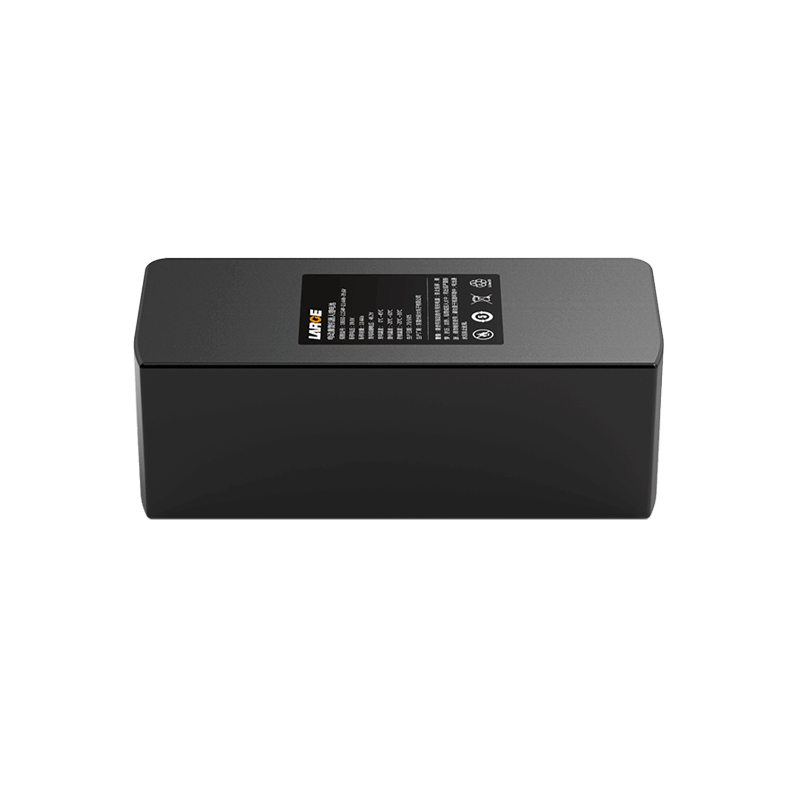

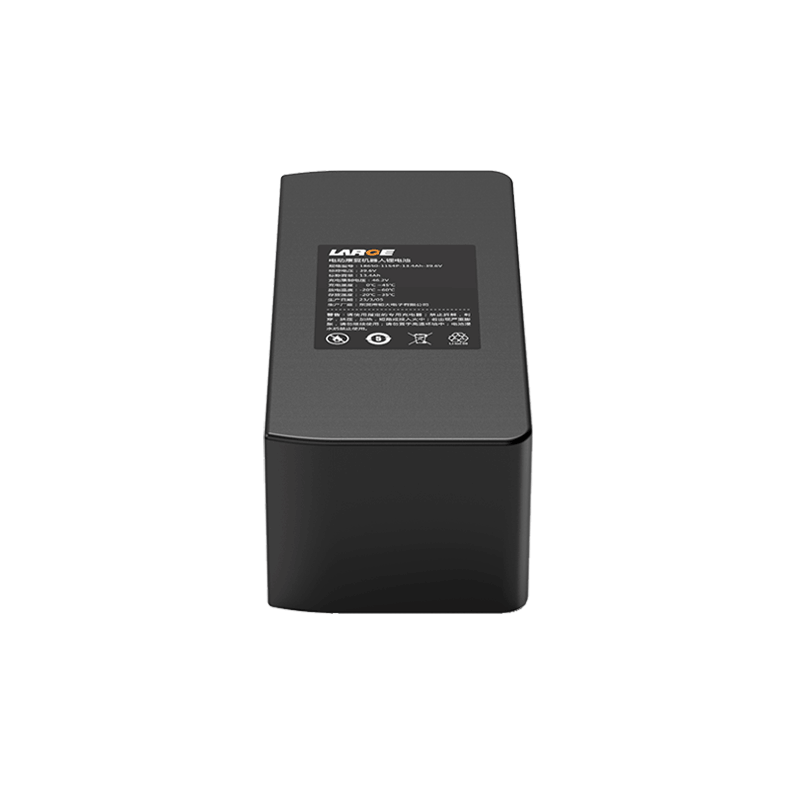

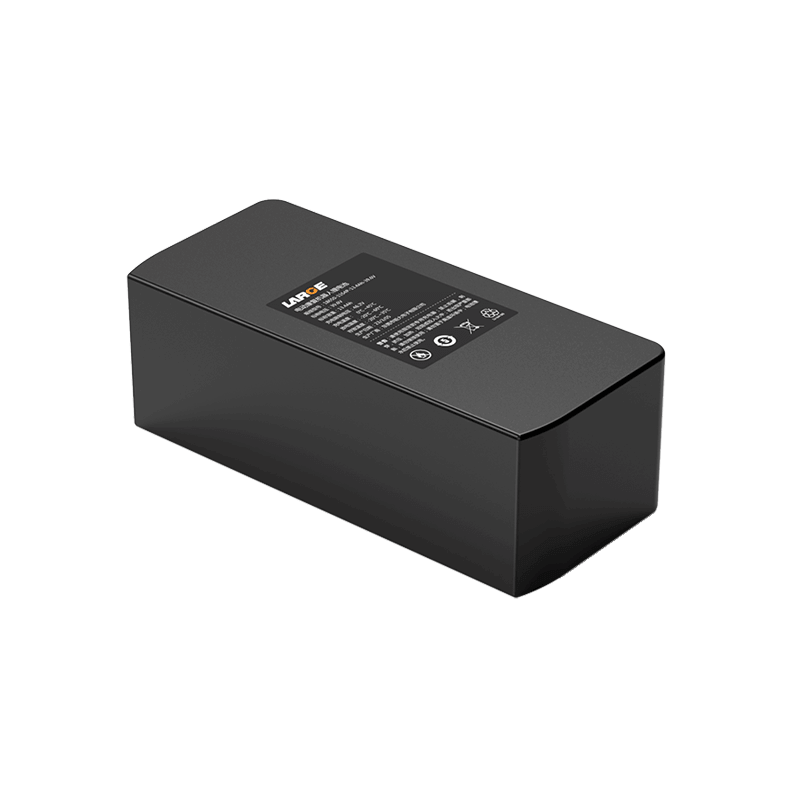

18650 39.6V 13.4Ah Electric Rehabilitation Robot Lithium-ion Battery

Product number: 01DQ0157-01

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-11S4P-13.4Ah-39.6V

Product size: 207*90*70mm (Max)

Nominal voltage: 39.6V

Nominal capacity: 13.4Ah

Finished internal resistance: ≤150mΩ

Charging voltage: 46.2V

Charging current: ≤6.2A

Discharge current: ≤20A

Discharge cut-off voltage: 30.8V

Battery weight: 2200g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: Electric robot, electric equipment, medical rehabilitation equipment

Product Features

1.Blue PVC heat shrink film package, simple and reliable,and easy to install;

2.The battery pack is assembled with special battery cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good shock and impact resistance.

3.National standard wire output mode:Solder joint and solder welding can increase conductive reliability;

4.Data communication management: Use 485 communication for accurate data transmission, accurate temperature control, real-time battery status monitoring and control to minimize safety risks

5.BMS communication uses optocoupler isolation, the product supports 485 bus for customer optional communication, support networking, communication baud rate of 9600bps

6.The battery pack has nice safety, good discharge performance and long cycle life;

7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
