Custom Lithium ion Battery Pack

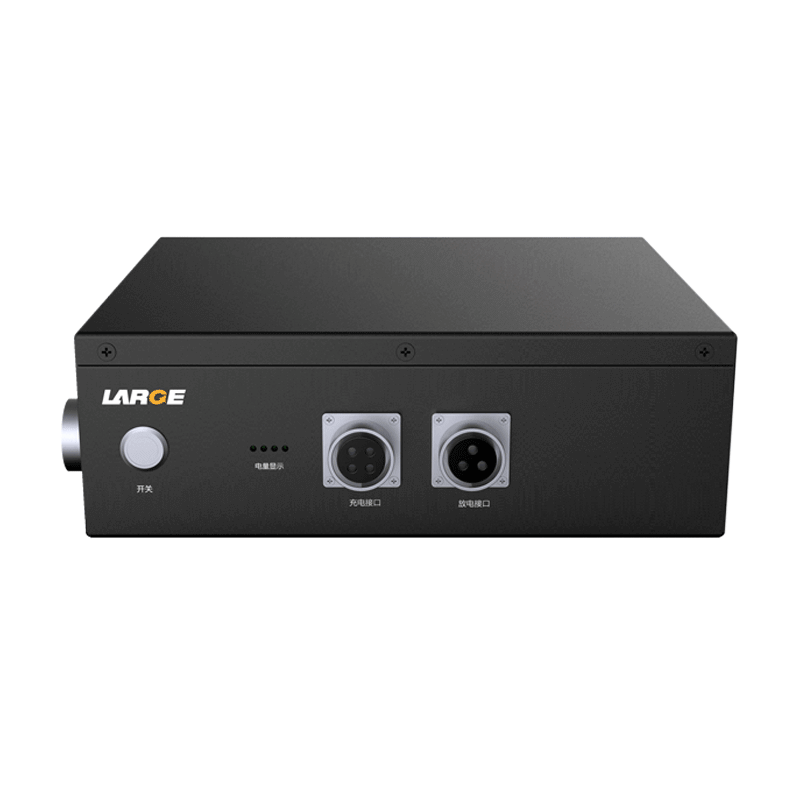

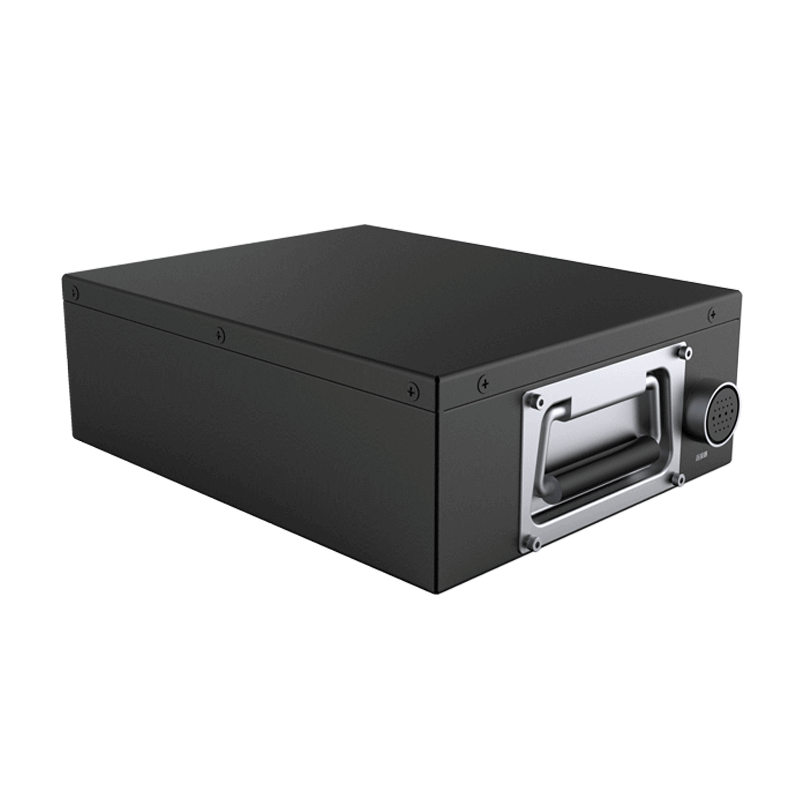

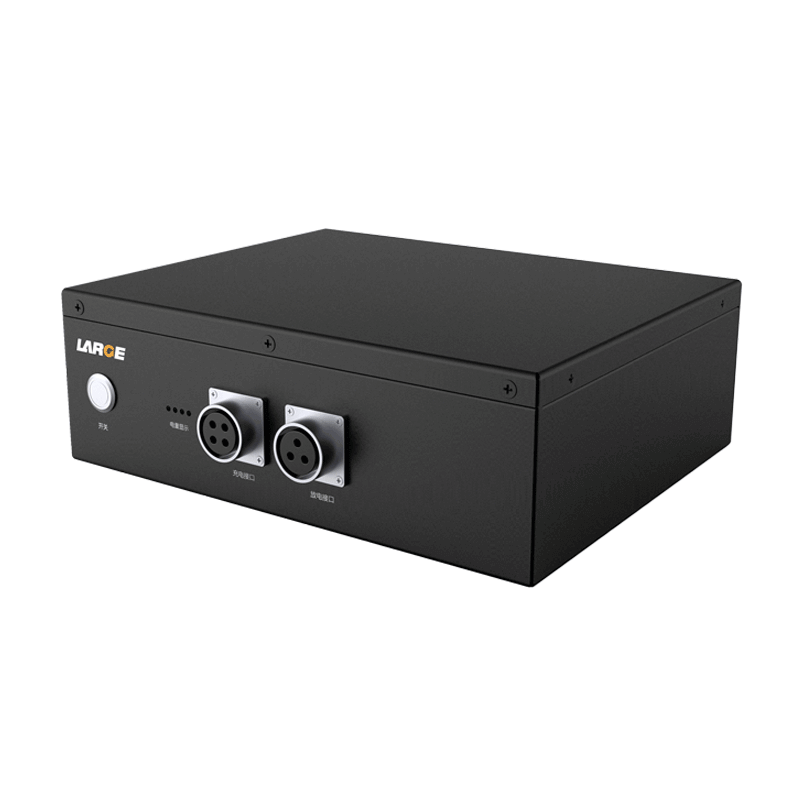

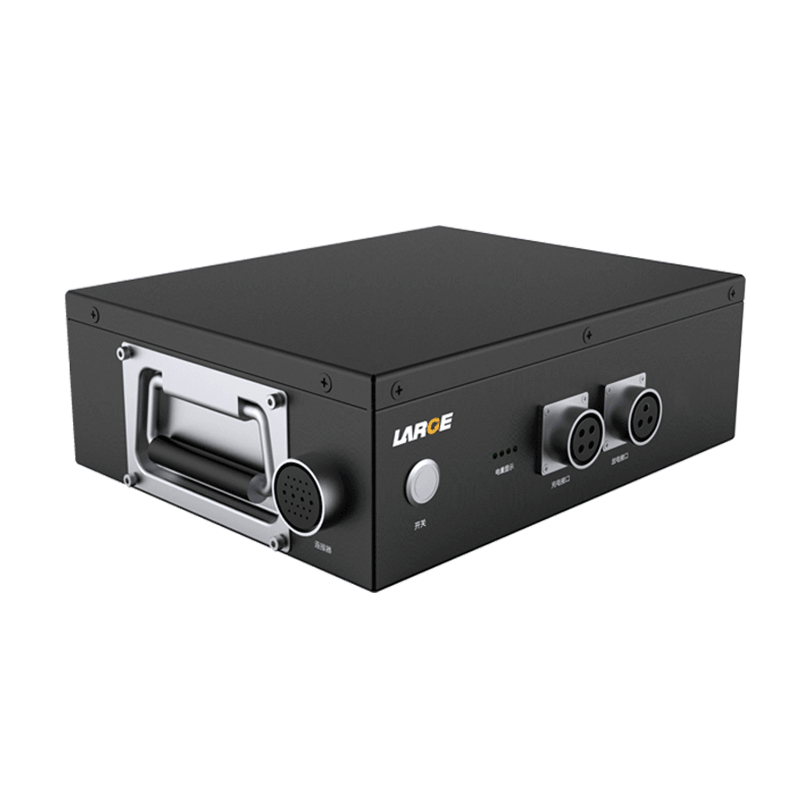

18650 46.8V 13Ah Energy Storage Battery Panasonic Battery for Rail Drilling Machine

  • Model number:32AQ005-01

  • Nominal voltage:46.8V

  • Nominal capacity:13000mAh

  • Battery cell:18650/3.6V/3.35Ah

  • Dimension:400×400×100(Max)

  • Application:drilling machine, robot, AGV, RGV

Product Detail

Product number: 32AQ005-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650/13S4P/46.8V/13Ah

Nominal voltage:46.8V

Nominal capacity:13Ah

Charging voltage: 54.6V

Charging current: ≤3A

Discharging current: 5A

Instant discharging current: 20A

End-off voltage: 36.4V

Internal resistance: ≤250m?

Battery weight: 5kg

Product dimension: 400×400×100(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~55 ℃

Temperature protection: /

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: drilling machine, robot, AGV, RGV


Product features

1. Dustproof and shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.

2. Large current: connect the battery by copper nickel compositing with nickel strap, which is safe and reliable.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
