Custom Lithium ion Battery Pack

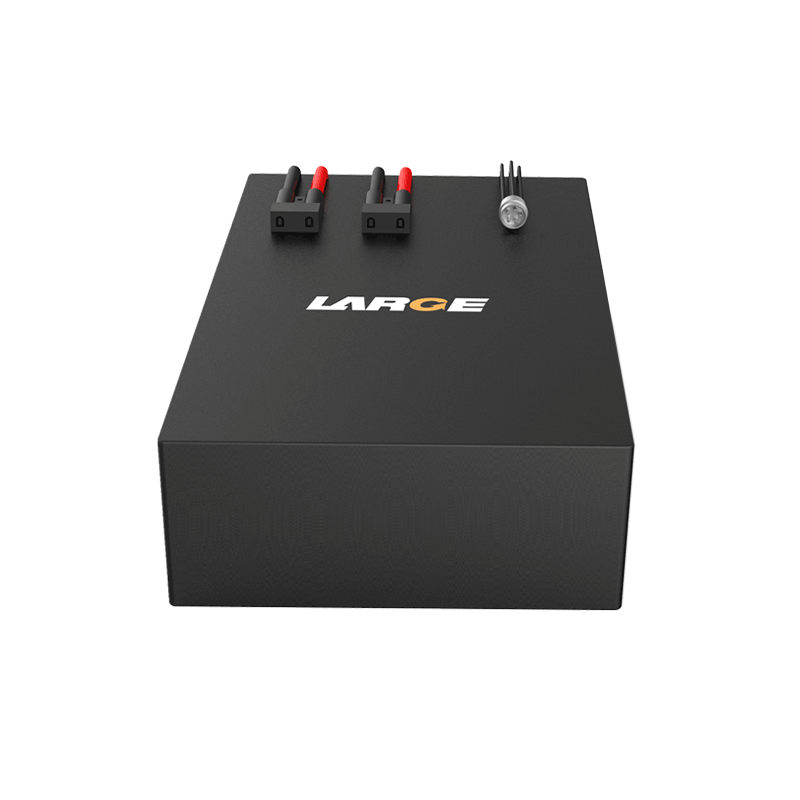

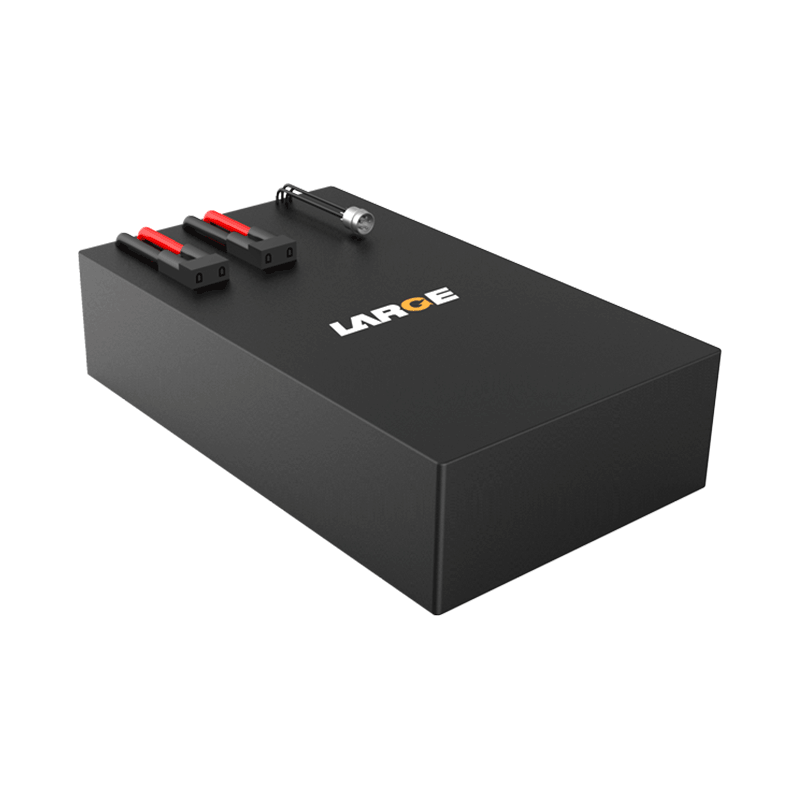

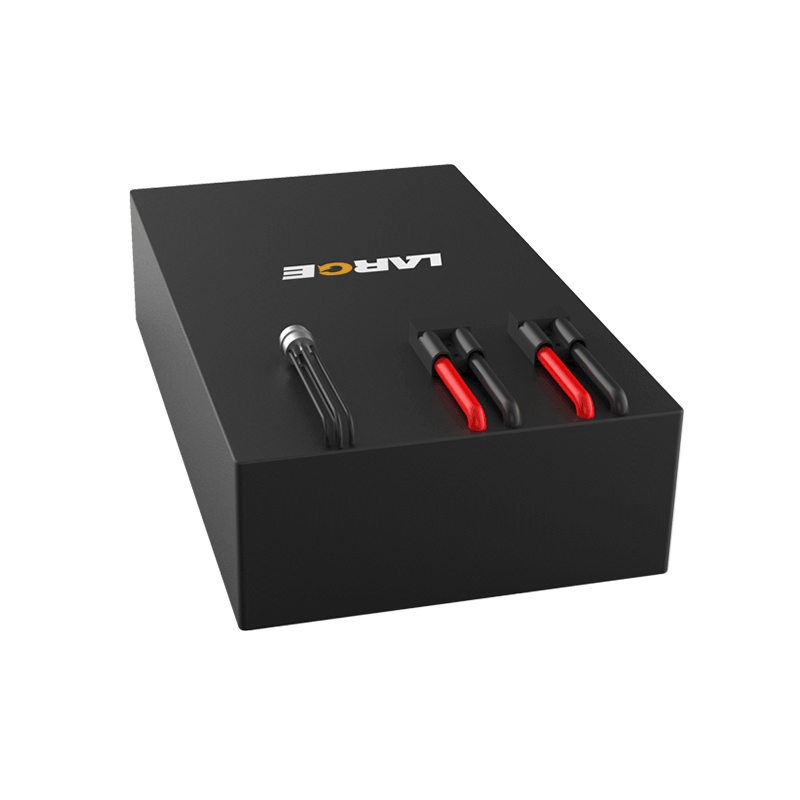

26650 48V 14Ah Lifepo4 Battery Fire-fighting Robot with RS485 Communication Port

  • Model number:04EQ029-01

  • Nominal voltage:48.0V

  • Nominal capacity:14000mAh

  • Battery cell:26650/3.2V/3.5Ah

  • Dimension:290×175×75(Max)

  • Application:robot, AGV, RGV

Product Detail

Product number: 04EQ029-01

Cell model:26650/3.2V/3.5Ah

Battery specification: 26650/15S4P/48V/14Ah

Nominal voltage:48V

Nominal capacity:14Ah

Charging voltage: 54.6V

Charging current: ≤10A

Discharging current: 40A

Instant discharging current: 100A

End-off voltage: 41.25V

Internal resistance: ≤200m?

Battery weight: 5.5kg

Product dimension: 290×175×75(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: thermal shrinkage of PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: robot, AGV, RGV


Product features

1. Copper nickel compositing with nickel strap: connect the batteries by copper nickel compositing with nickel strap, which is safe and reliable. It assures to work through large current.

2. Large current connector: apply Anderson large current connector, which has maximum current of 100A.

3. Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4. Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
