Custom Lithium ion Battery Pack

24V/5V DC-DC Battery 18650 24V 13Ah Lithium Power Battery Panasonic Battery for Laser Testing and Controlling

Product Detail

Product number: 04EQ038-01

Cell model:18650/24V/5V/6.7Ah

Battery specification: 18650/7S2P/24V/5V/6.7Ah

Nominal voltage:24V 5V two stable voltages

Nominal capacity:6.7Ah

Charging voltage:29.4V

Charging current: ≤3A

Discharging current: 5A

Instant discharging current: 10A

End-off voltage: 24V 5V stable voltage

Internal resistance: ≤450m?

Battery weight:1.2kg

Product dimension: 180×75×80(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~40 ℃

Temperature protection: /

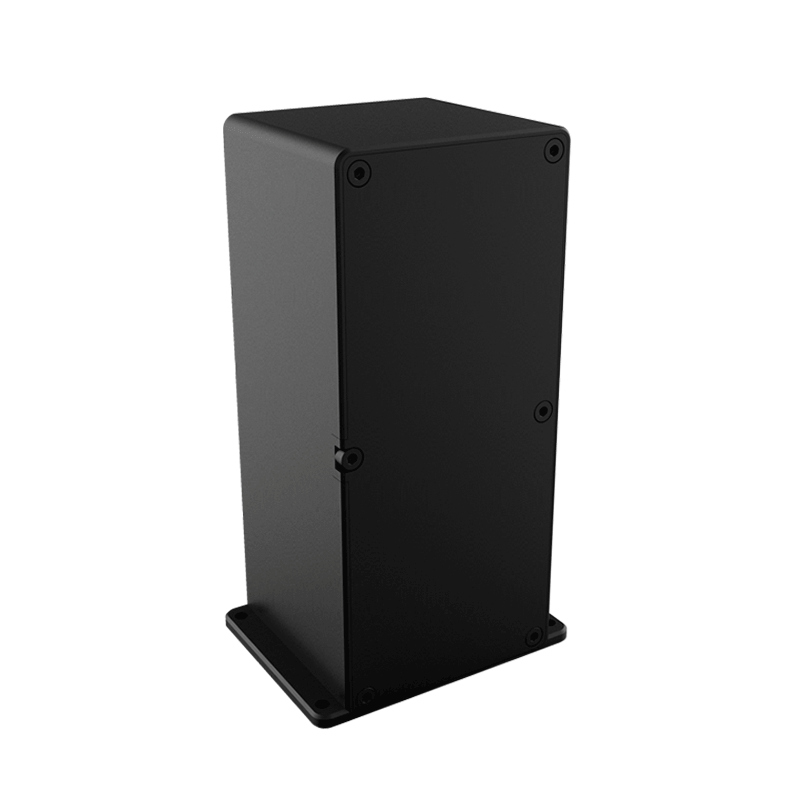

Battery case: 6061 aluminum alloy

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: laser device

Product features

1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the aluminum alloy housing to satisfy the requirements of good security and high reliability.

2. Output under stable voltage: output 24V/5V two stable voltages by DC-DC electric circuit to assure the power requirement of precision equipment.

3. Fast connect: apply push-pull self-locking aviation connector, which is efficient, safe and reliable.

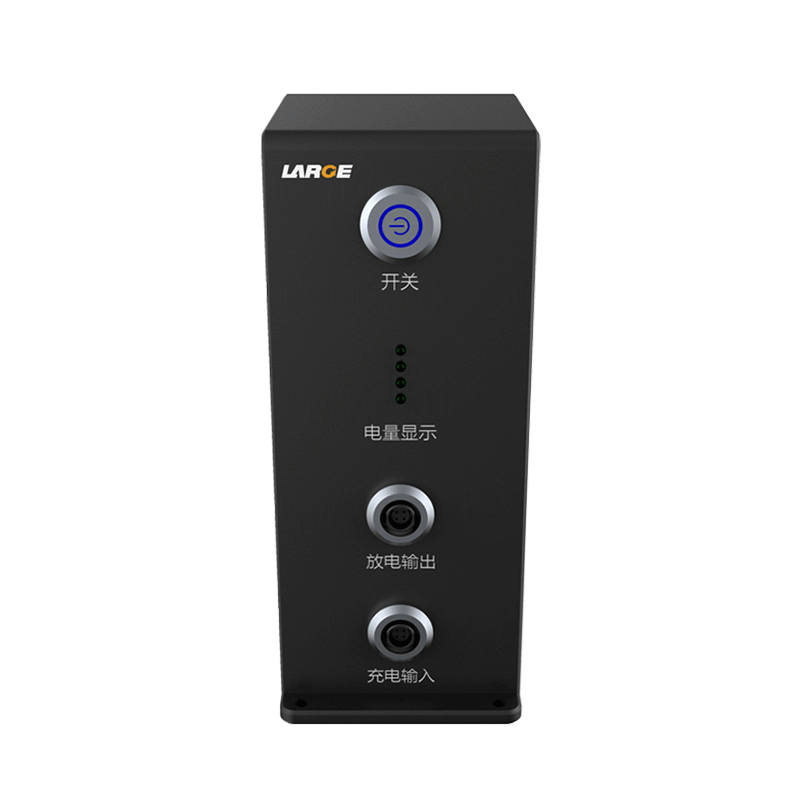

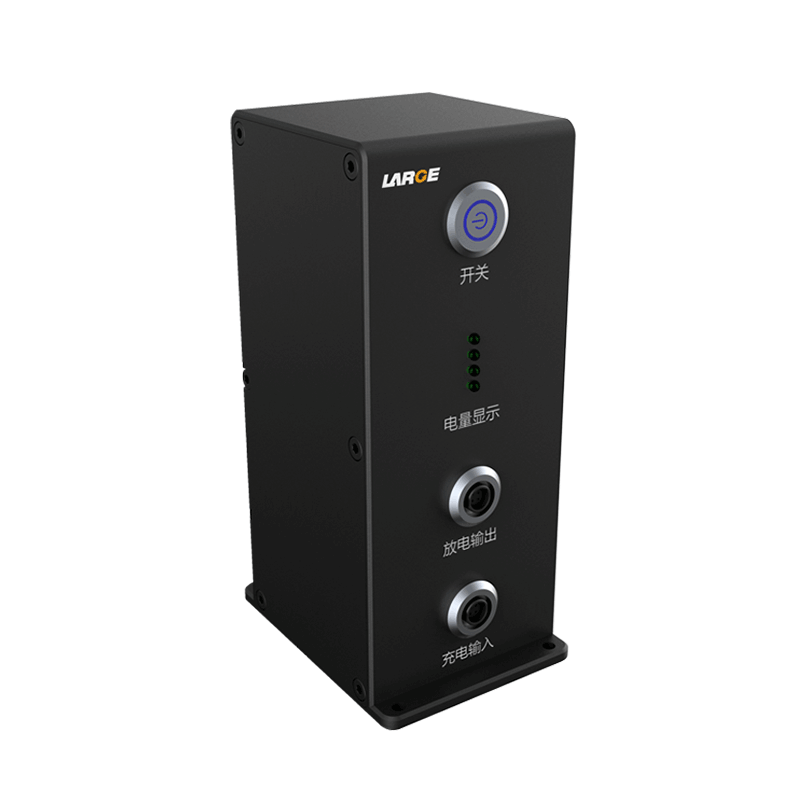

4. Capacity display: show the remaining capacity of the battery directly by 4 LED light.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
