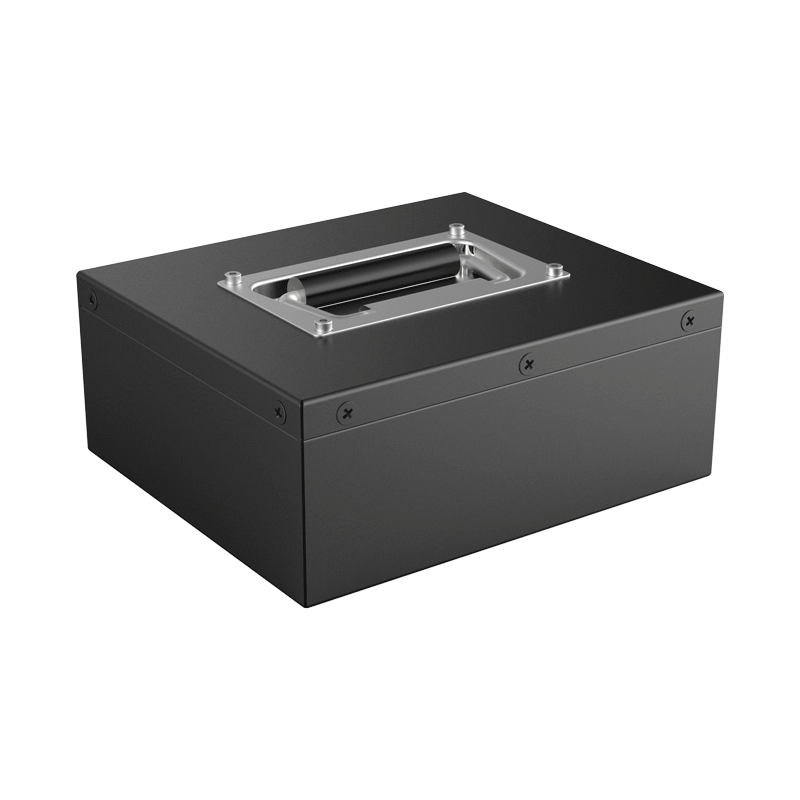

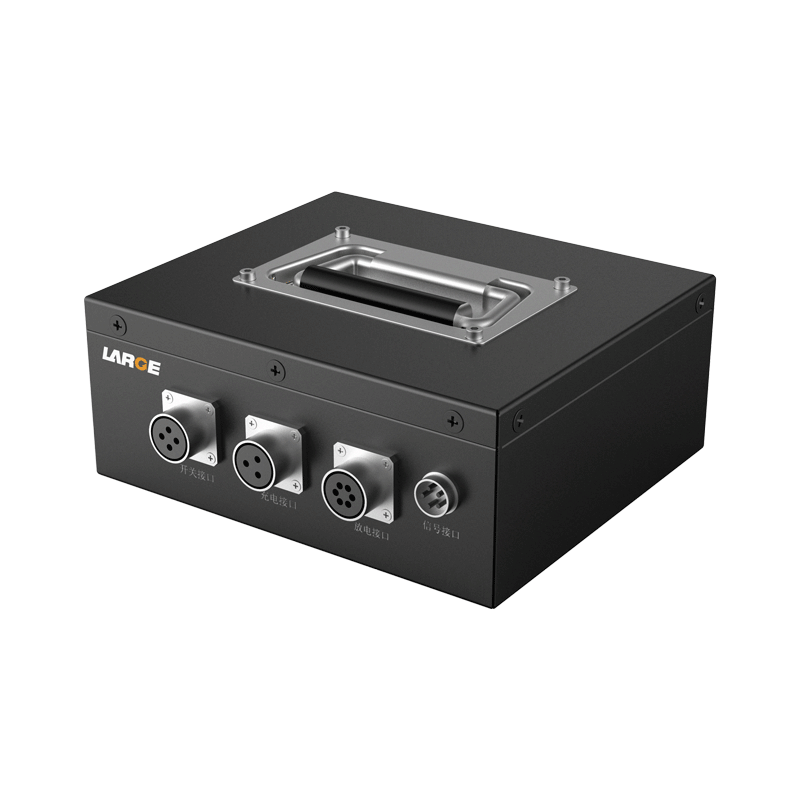

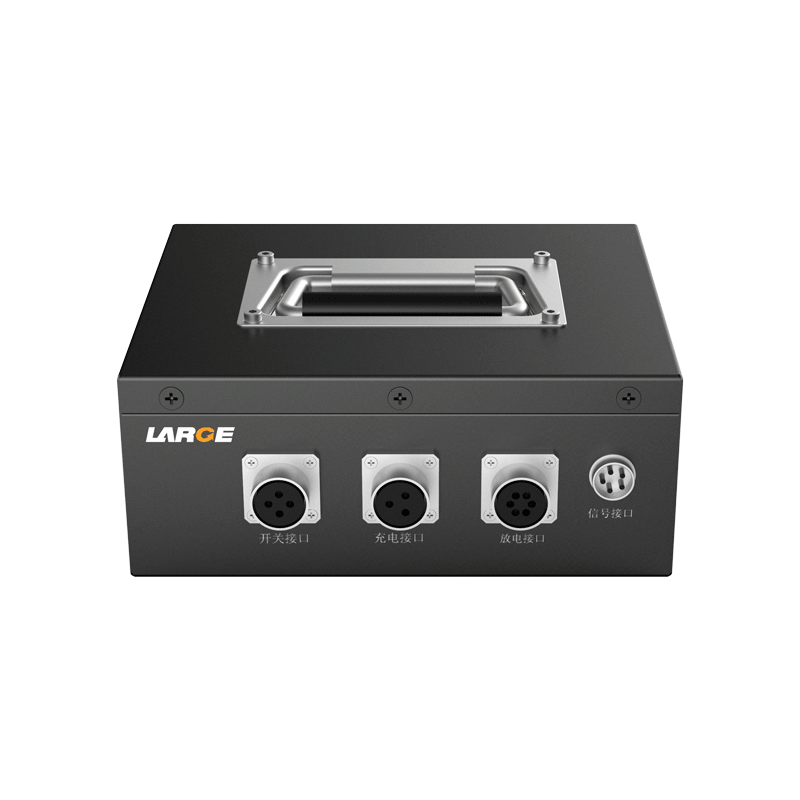

25.2V 30Ah 18650 Lithium-Ion Battery Panasonic Battery for Detector of High-speed Rail Contact Network

Product Detail

Product number: 34AQ038-01

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650/7S9P/25.2V/30Ah

Nominal voltage:25.2V

Nominal capacity:30Ah

Charging voltage: 29.4V

Charging current: ≤6A

Discharging current: 6A

Instant discharging current: 30A

End-off voltage: 19.6V

Internal resistance: ≤200mΩ

Battery weight: 7.5Kg

Product dimension: 210×180×80(Max)

Charging temperature:0~45℃

Discharging temperature: -20~50℃

Storage temperature: -20~40 ℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: high-speed locomotive, high-speed rail

*
*
*
