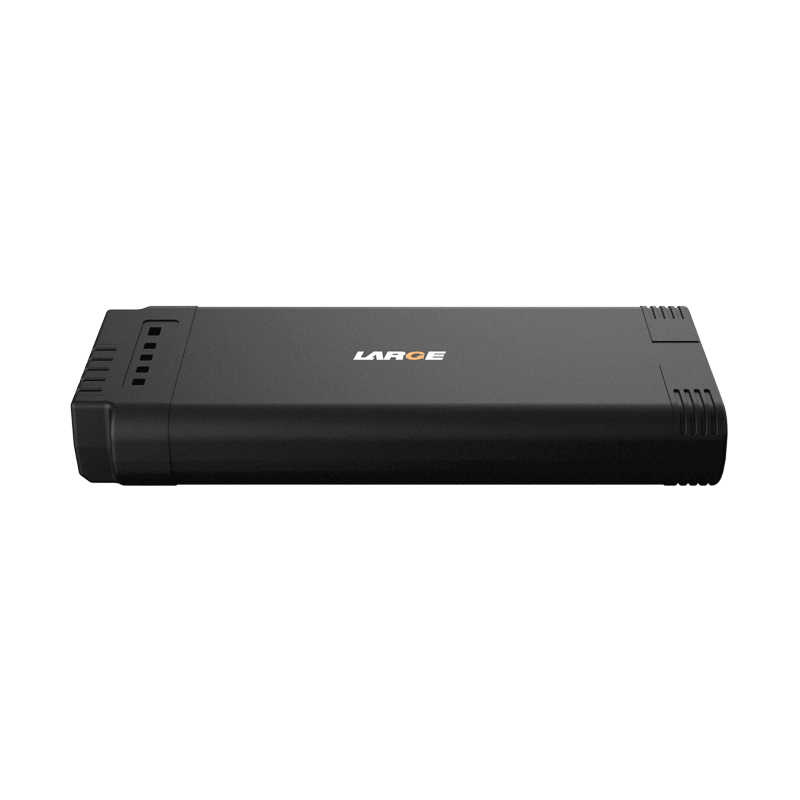

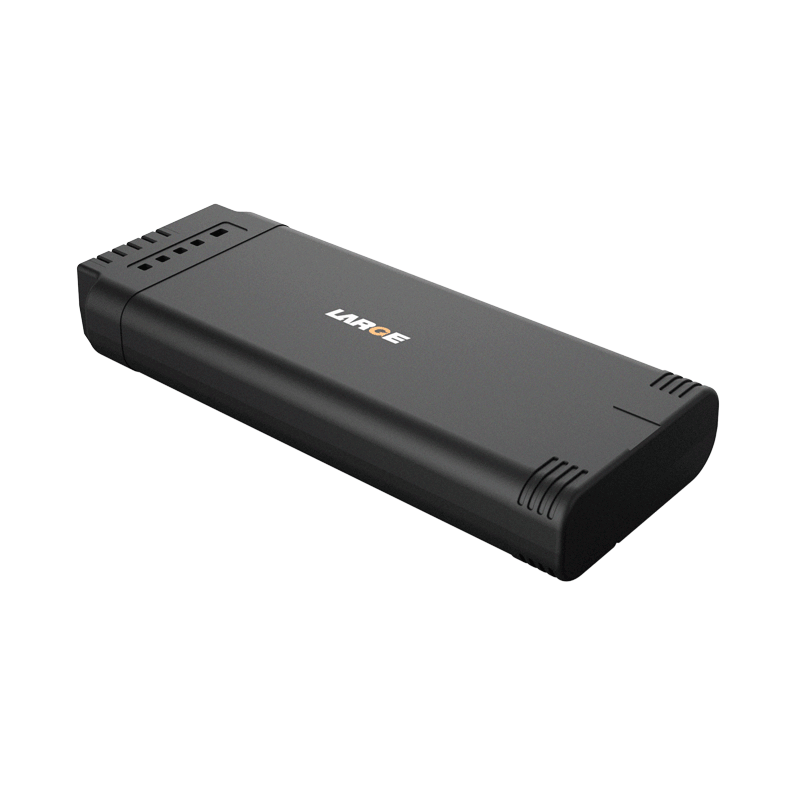

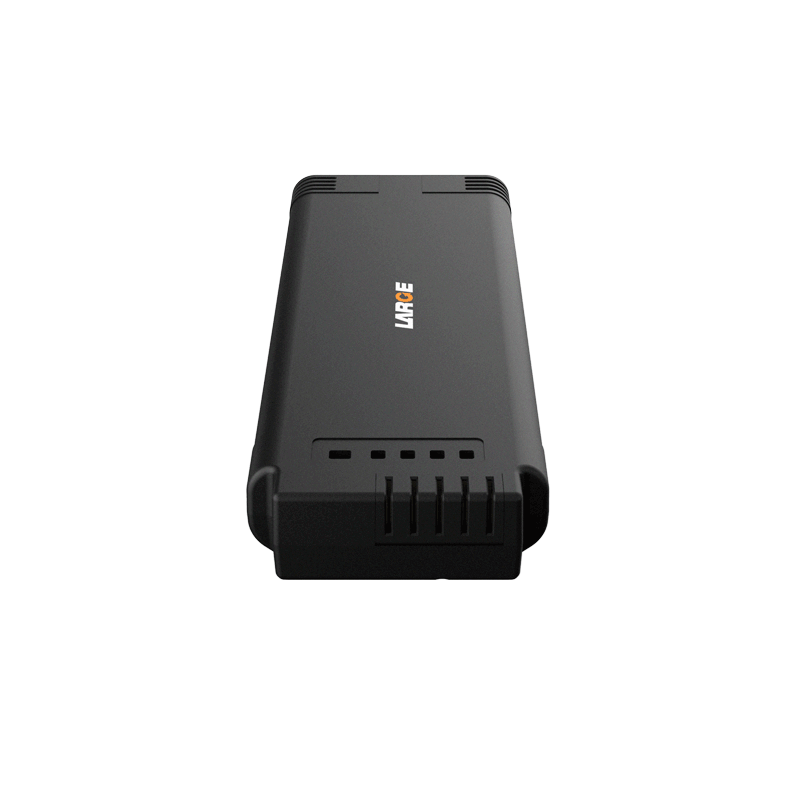

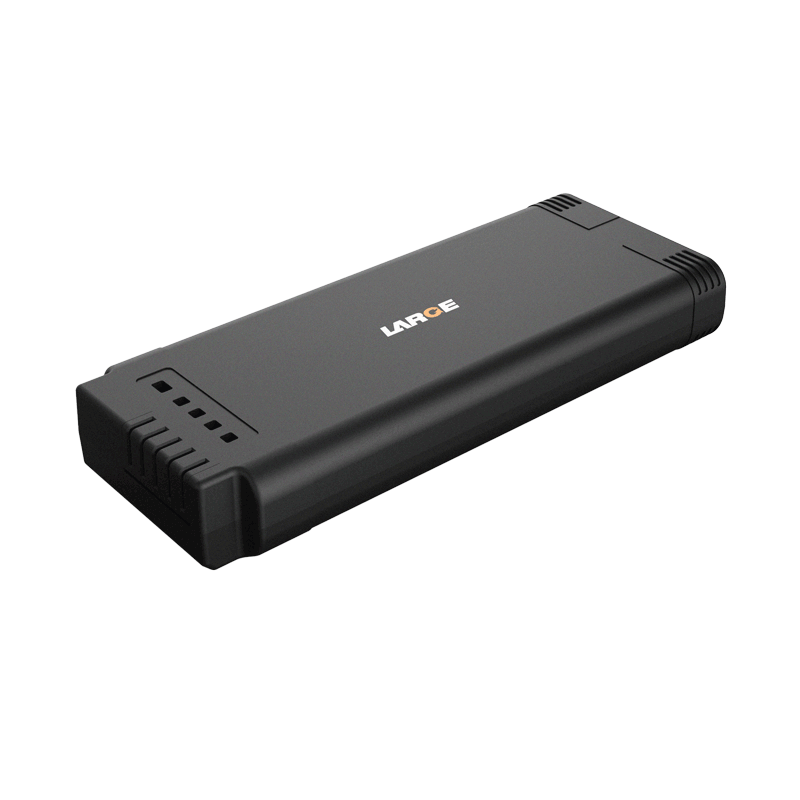

18650 10.8V 6600mAh Lithium Ion Battery Panasonic Battery for Medical Device with SMBUS Communication

Product Detail

Product number: 04DQ0082-03

Cell model:18650-3350mAh-3.6V

Battery specification: 18650-3S2P-6600mAh-10.8V

Nominal voltage:10.8V

Nominal capacity:6600mAh

Charging voltage: 12.6V

Charging current: ≤2900mA

Discharging current: ≤7900mA

End-off voltage: 7.5V

Internal resistance: ≤250mΩ

Battery weight: about 310g

Product dimension: (154*62*23)±0.3mm

Charging temperature:10~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short circuit protection,.

Application field: respirator, medical device

*
*
*
