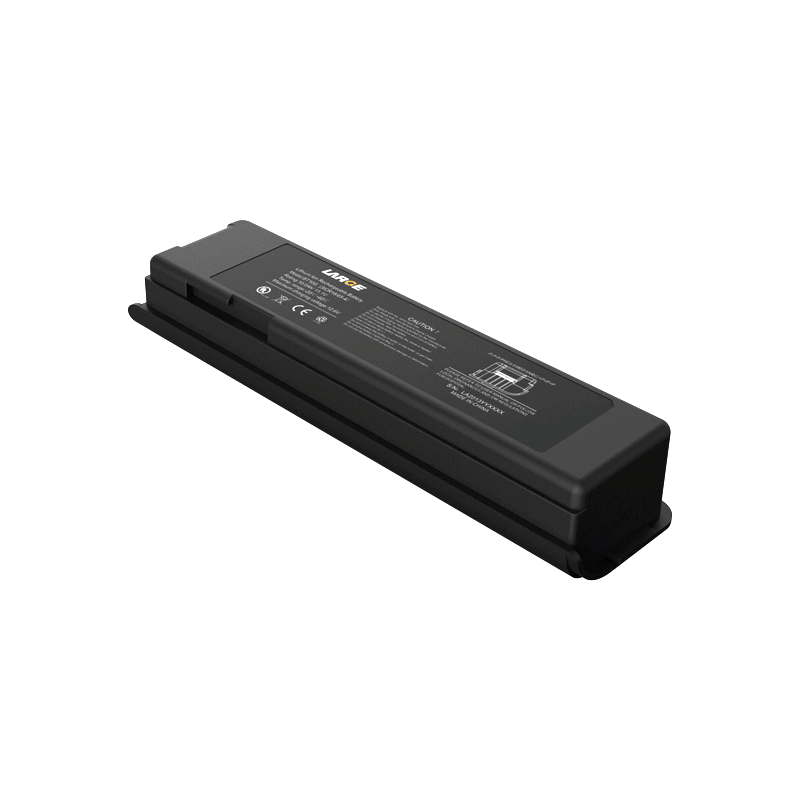

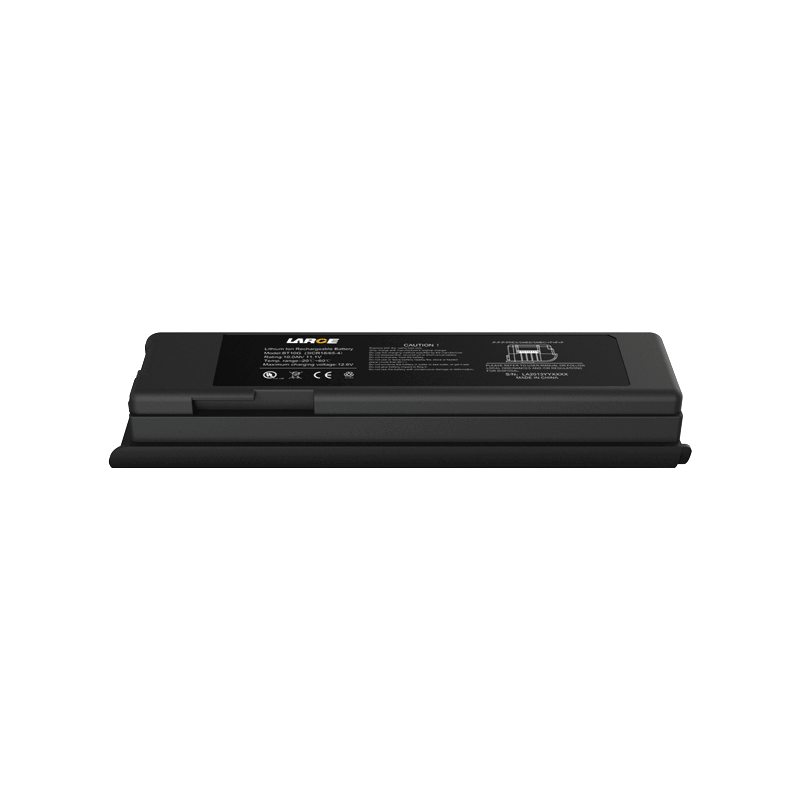

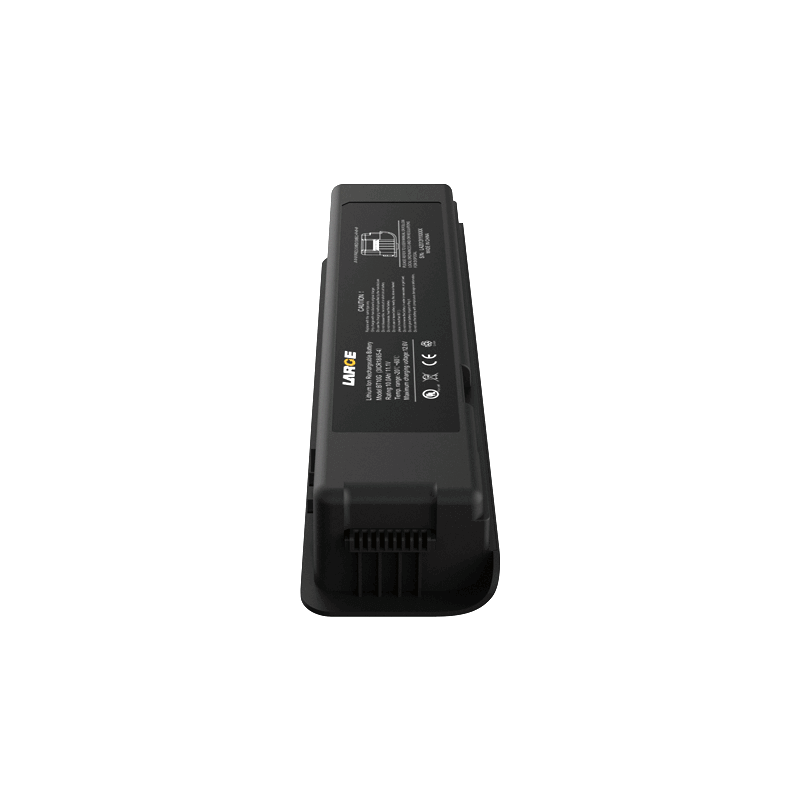

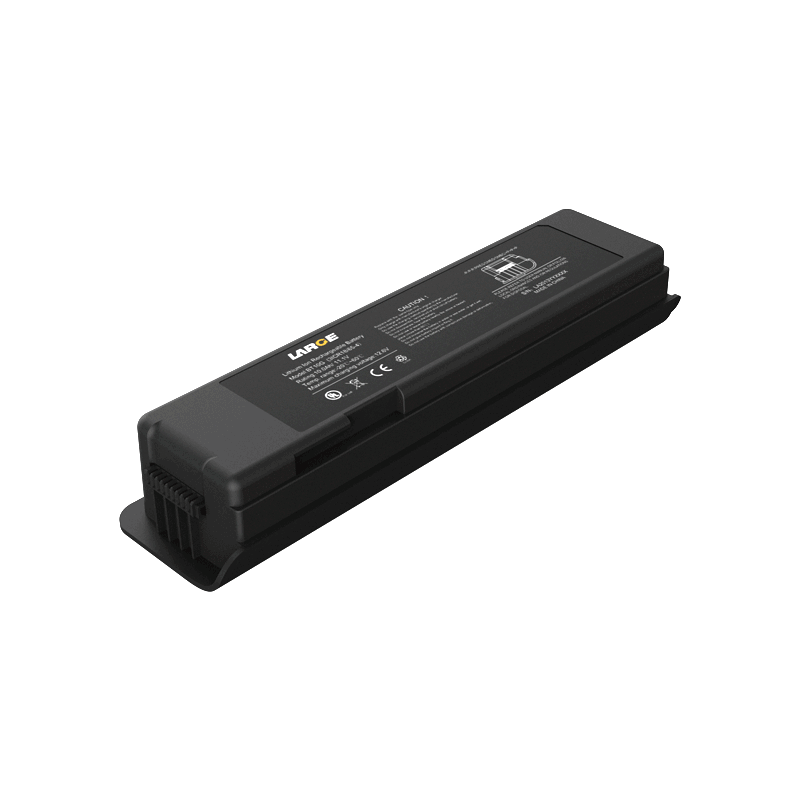

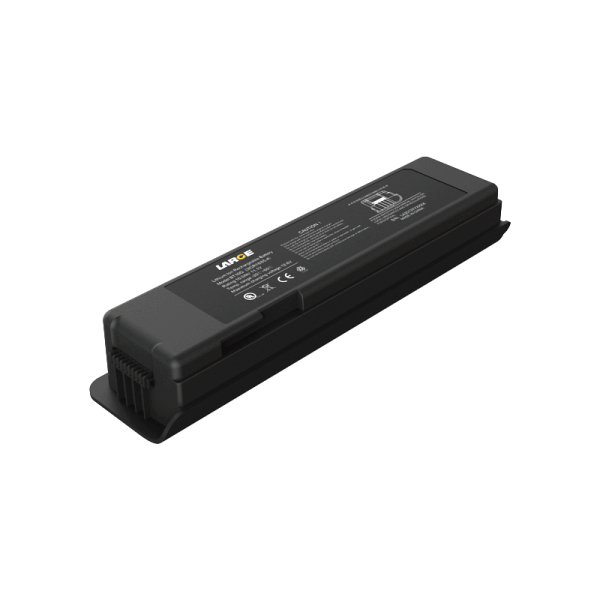

11.1V 10Ah Lithium Ion Battery
Product Number:
08AQ107-04
Nominal voltage:
11.1V
Nominal capacity:
10Ah
Battery Configuration:
18650-3S4P
Dimension:
38 × 56 × 226 mm
Application:
Portable Ultrasound Machine
ABS+PC Housing, SMBus Communication, Multi-Level Safety Protection
Product Overview
Electrical Specifications
| Attribute | Parameter |
| Product Number | 08AQ107-04 |
| Cell Model | 18650-2500mAh-3.7V |
| Battery Configuration | 18650-3S4P |
| Nominal Voltage | 11.1V |
| Nominal Capacity | 10Ah |
| Rated Energy | 111Wh |
| Charging Voltage | 12.6V |
| Discharge Cut-off Voltage | 9.0V |
| Charging Current | ≤5A |
| Discharge Current | 2A |
| Internal Resistance | ≤250mΩ |
Mechanical & Environmental
| Attribute | Parameter |
| Charging Temperature | 0–45℃ |
| Discharge Temperature | -20–60℃ |
| Storage Temperature | -20–35℃ |
| Dimensions | 38 × 56 × 226 mm (Max) |
| Weight | 700g |
| Output Type | Gold-plated shrapnel connector |
| Material | ABS + PC |
| Communication Protocol | SMBus |
| Protection System | Short circuit / Over-charge / Over-discharge / Over-current protection |
Application Background
This battery solution is designed for portable ultrasound diagnostic equipment, widely used in hospital wards, mobile medical visits, and emergency transport scenarios.
Ultrasound devices require long continuous operation while maintaining stable power during imaging, data processing, and wireless transmission, demanding high requirements for runtime, output stability, and safety reliability.
Project Challenges
- The device must support 8–12 hours of continuous operation
- High-precision imaging requires stable power supply to avoid voltage fluctuation affecting image quality
- Medical equipment requires strict safety compliance with multi-level electrical protection
- Frequent mobile use demands compact size and lightweight design
Customized Battery Solution
- High energy density design: provides stable long-duration power output for extended operation
- SMBus smart management: integrated TI SMBus communication chip for accurate SOC and status monitoring
- Industrial-grade safety protection: built-in overcharge, over-discharge, overcurrent, and short-circuit protection
- Reinforced housing design: ABS+PC enclosure enhances impact resistance and long-term durability
Application Results
- Supports continuous operation for 8–12 hours
- Stable power output ensures imaging quality and system reliability
- Improved safety level and reduced operational risks
- Balanced capacity and weight for better portability in mobile medical applications
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
