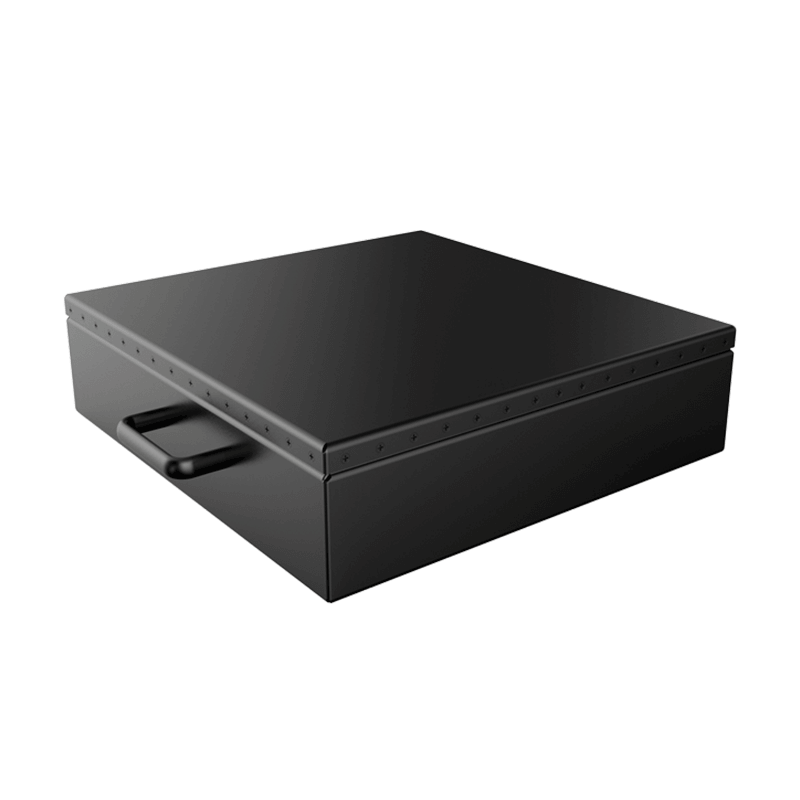

18650 59.2V 50Ah Energy Storage Battery Lishen Battery for AGV Railway Car

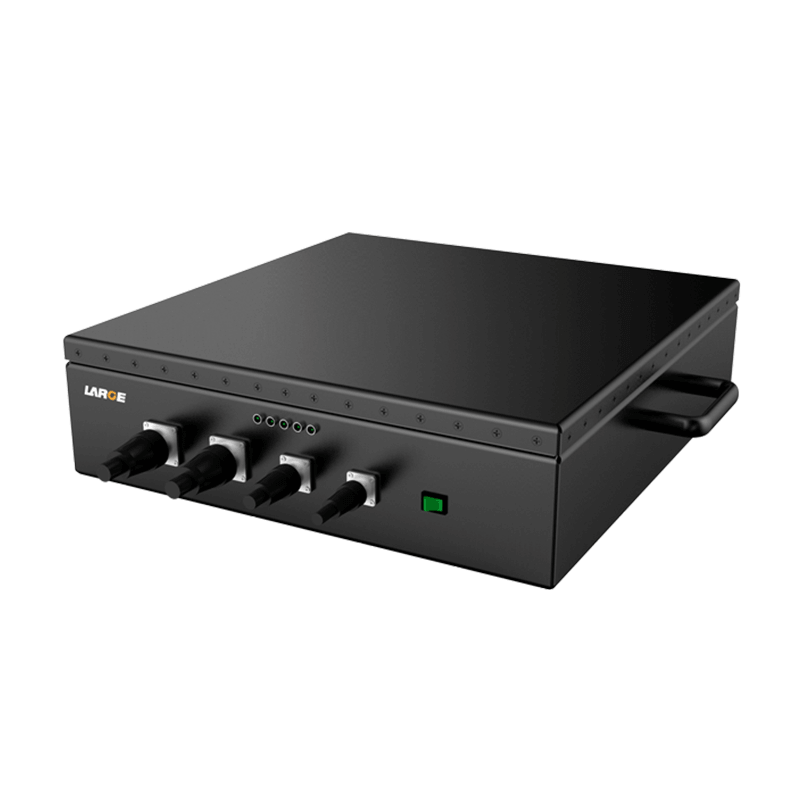

18650 59.2V 50Ah Lithium ion Battery Pack - Image 2

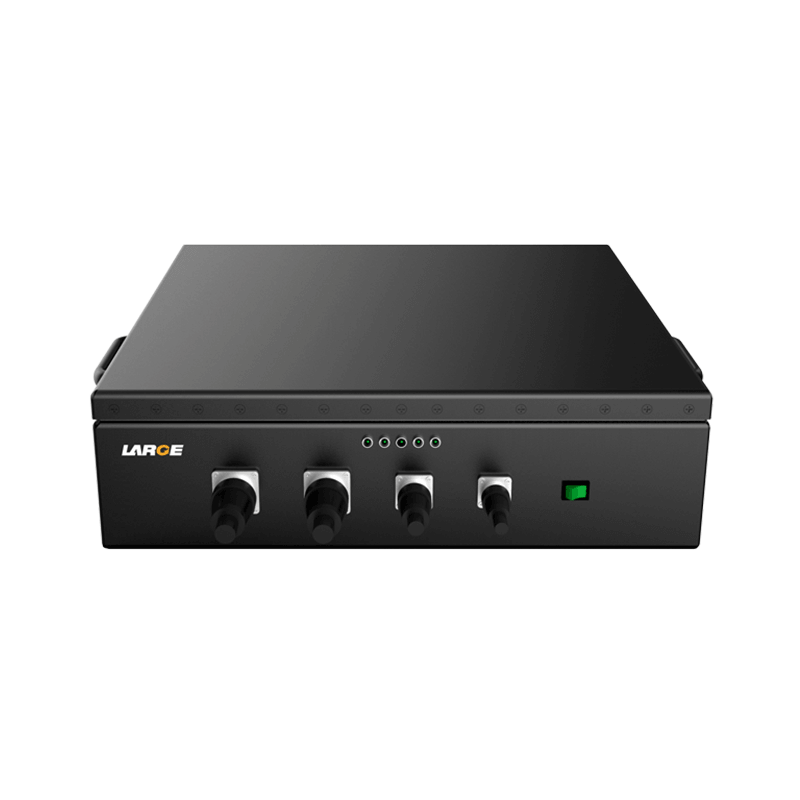

18650 59.2V 50Ah Lithium ion Battery Pack - Image 3

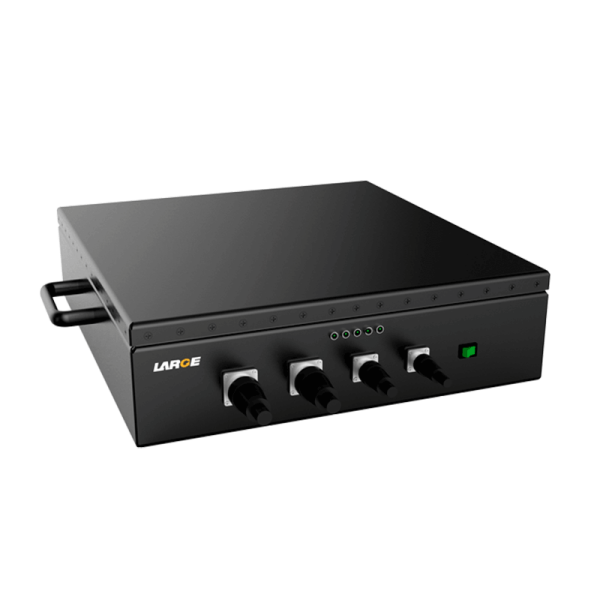

18650 59.2V 50Ah Lithium ion Battery Pack

Product Number:
03KQ080-01
Nominal voltage:
59.2V
Nominal capacity:
50Ah
Battery Configuration:
18650-16S20P
Dimension:
460 × 410 × 100 mm
Application:
AGV
Get Custom Solution
UART communication, cell balancing, 100A output capability
Product Overview

This is a 59.2V high-power lithium battery for AGV logistics vehicles and rail transport systems, used in warehouse automation and heavy-load handling scenarios. It supports continuous high-load operation with stable output, long endurance, and reliable UART smart monitoring for industrial use.

Electrical Specifications
Attribute Parameter
Product Number 03KQ080-01
Cell Model 18650/3.7V/2500mAh
Battery Configuration 18650-16S20P
Nominal Voltage 59.2V
Nominal Capacity 50Ah
Rated Energy 2960Wh
Charging Voltage 67.2V
Discharge Cut-off Voltage 48V
Standard Charging Current ≤45A
Standard Discharge Current 50A
Max Continuous Discharge Current 100A
Internal Resistance ≤100mΩ

Mechanical & Environmental

Attribute Parameter
Charging Temperature 0～45℃
Discharge Temperature -20～60℃
Storage Temperature -20～35℃
Dimensions 460 × 410 × 100 mm (Max)
Weight 34 kg
Battery Case Sheet Metal Housing
Communication Protocol UART
Protection System Short Circuit / Overcharge / Over-discharge / Overcurrent / Temperature Protection / Cell Balancing

Application Background

This battery solution is designed for AGV logistics vehicles and rail transport systems, suitable for industrial automation handling and smart warehouse power supply applications.

The equipment requires long-duration continuous operation, maintaining stable high-voltage output under frequent starts/stops, heavy-load transportation, and route scheduling, with high demands on high-power discharge capability, endurance, and system safety.

Project Challenges

Requires continuous operation of 6–12 hours or more
Peak discharge current up to 100A with strong surge loads
Frequent charge-discharge cycles requiring high consistency and long cycle life
Limited vehicle space requiring strict control of size and weight

Customized Battery Solution

59.2V high-voltage 16S20P configuration for continuous AGV power output
Sheet metal housing design for enhanced impact resistance and industrial-grade protection
UART communication + BMS cell balancing for real-time battery monitoring
Multi-protection system (overcharge/overdischarge/overcurrent/short circuit/temperature protection) ensuring safe operation

Application Results

AGV continuous operating time extended to 6–12 hours
System voltage stability improved by approx. 15%+ under high load conditions
Significantly improved operational safety and fault early-warning capability
Compatible with multiple logistics and rail transport platforms, enhancing overall system versatility

We support flexible customization based on your project requirements, including:

  • Voltage range: 3.2V – 72V
  • Capacity range: 100mAh – 100Ah
  • Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
  • Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
  • BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
