Custom Lithium ion Battery Pack

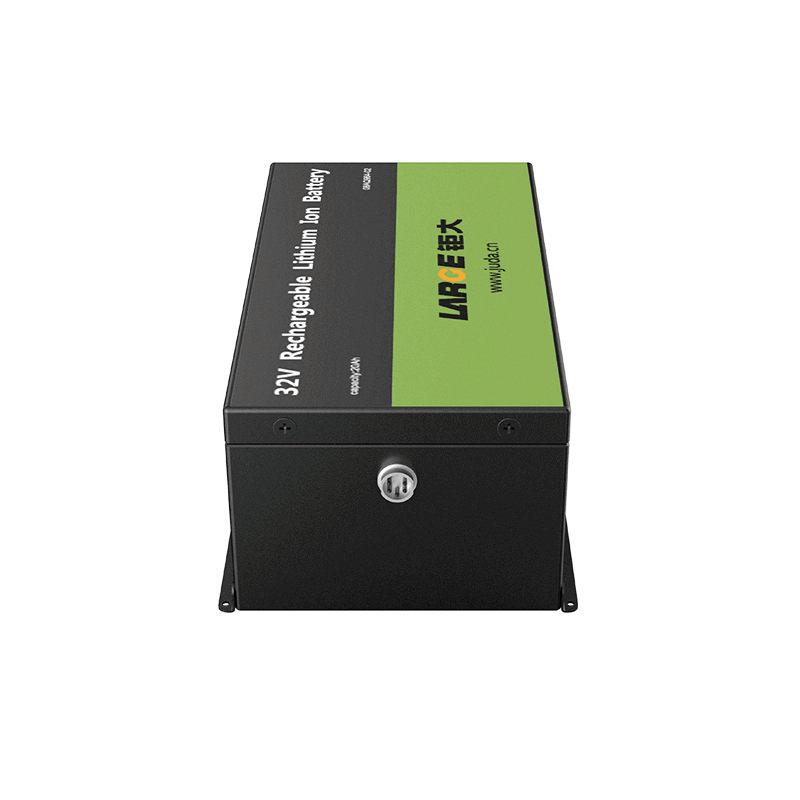

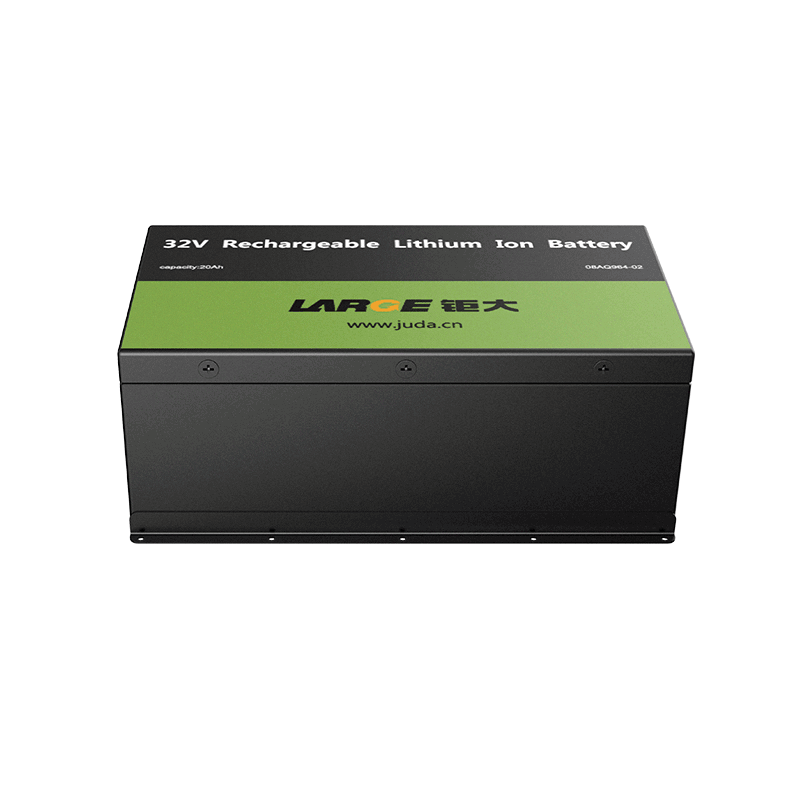

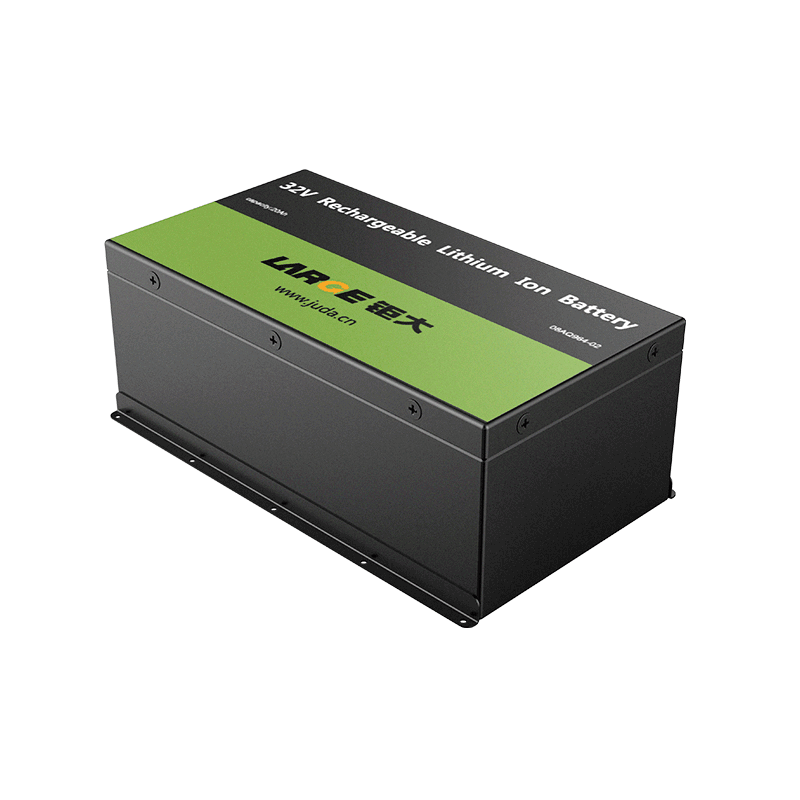

Low Temperature Charge/discharge Lifepo4 Battery 32V 20Ah for Telecommunication Base Station with RS485 Communication

  • Model number:08AQ964-02

  • Nominal voltage:32.0V

  • Nominal capacity:20000mAh

  • Battery cell:18650/3.6V/3.35Ah

  • Dimension:305*155*115mm(Max)

  • Application:robot, AGV, RGV

Product Detail

Product number: 04EQ029-13

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650-13S8P/46.8V/26Ah

Nominal voltage:46.8V

Nominal capacity:80Ah

Charging voltage: 54.6V

Charging current: ≤5A

Discharging current: 26A

Instant discharging current: 2.5A

End-off voltage: 32.5V

Internal resistance: ≤120mΩ

Battery weight: 6kg

Product dimension: 280×180×80(Max)

Charging temperature:0~45℃

Discharging temperature: -20~50℃

Storage temperature: -20~40℃

Temperature protection: 65℃±5℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, temperature protection, etc.

Application field: robot, AGV, RGV


Product features

1. Metal output terminal: adopt military aviation plug so as to strengthen the conductivity and stability of the interface.

2. Battery feature: adopt Lifepo4 battery with good security, which can discharge at -40℃.

3. The battery pack has good safety performance, nice low temperature performance and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
