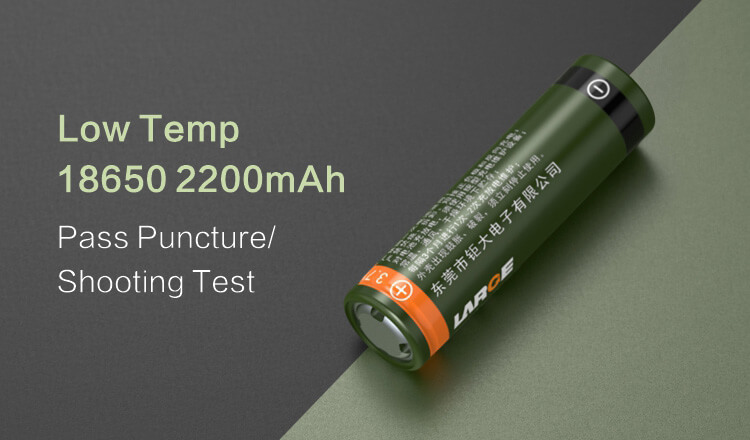

Low Temperature 18650 Cell with Puncture Test

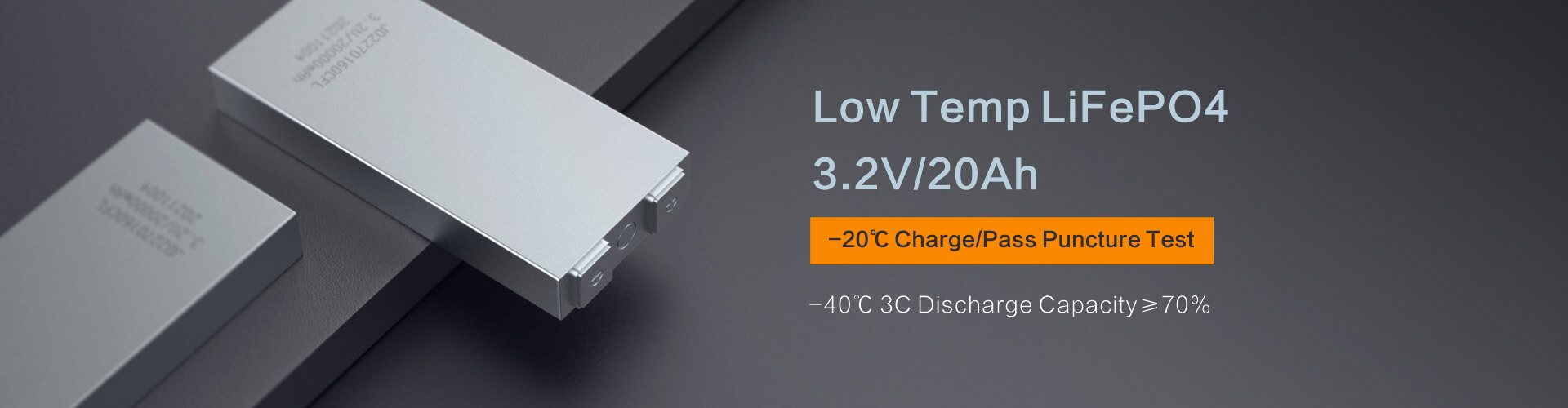

Low Temperature LiFePO4 3.2V 20Ah

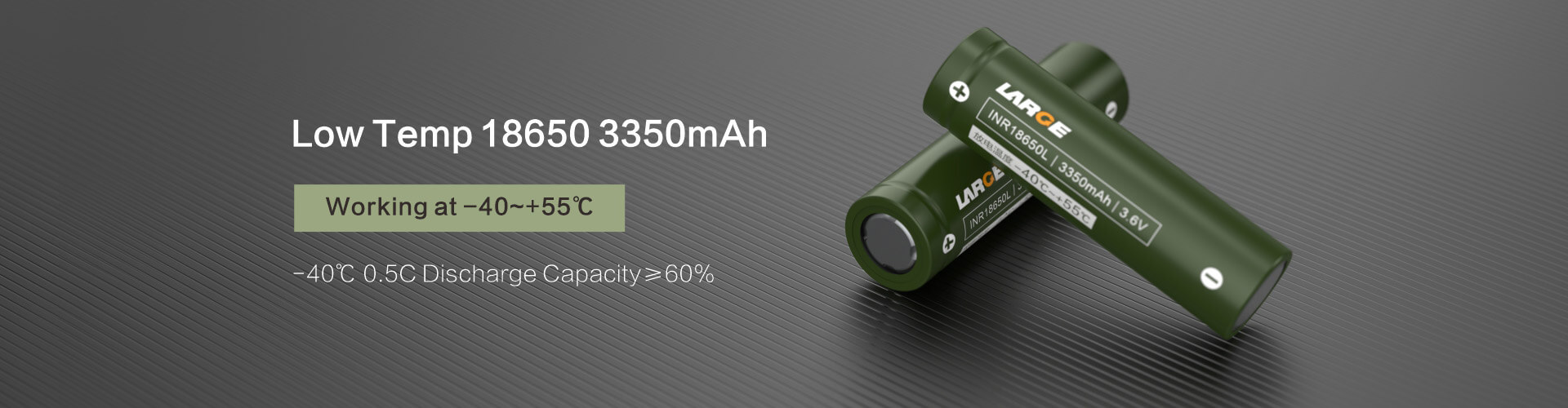

Low Temperature High Energy Density 18650 3350mah

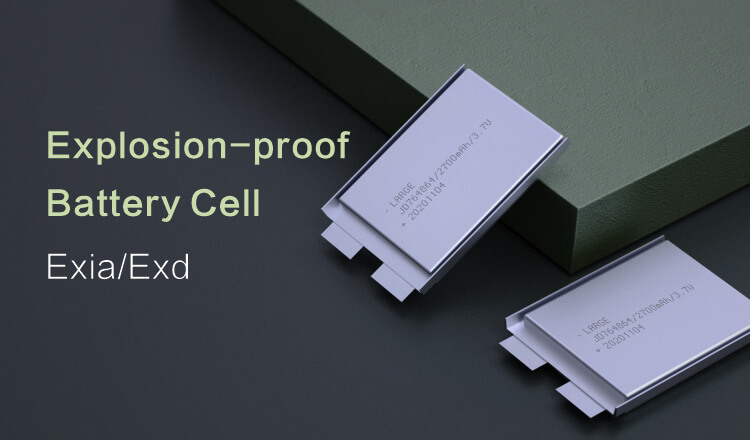

Exia/Exd Explosion-proof Cell

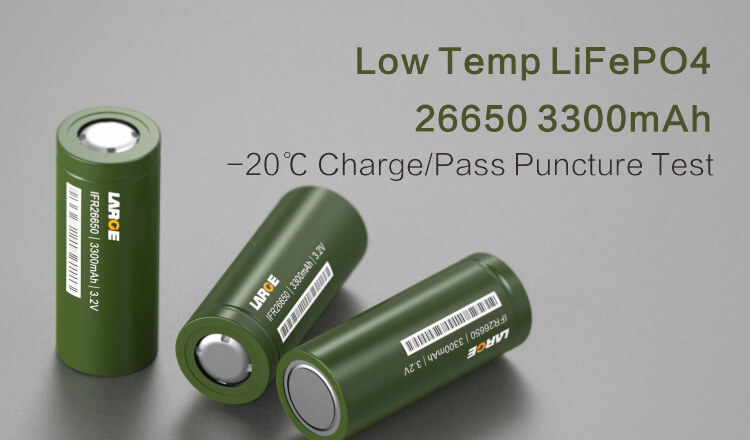

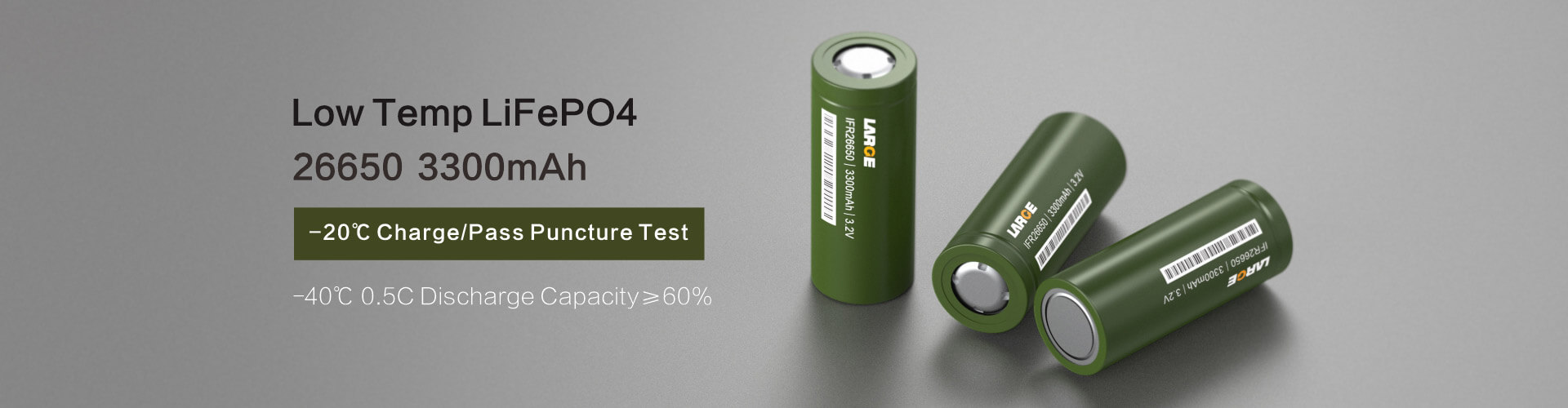

Low Temperature LiFePO4 26650 3300mAh
Low Temperature Polymer Cell

Low Temperature Square LiFePO4 Cell

-40℃ 3C Discharge Capacity≥70%

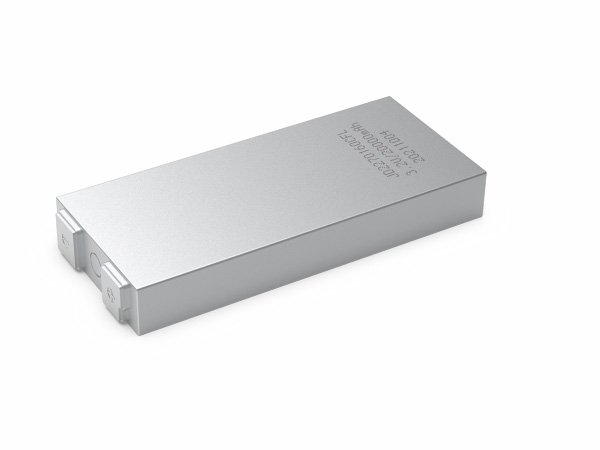

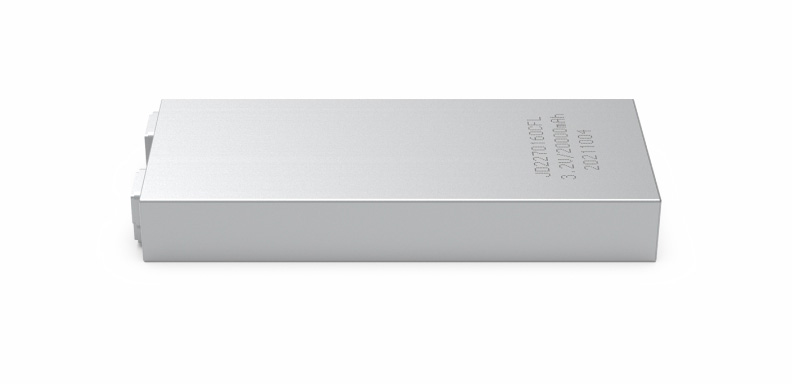

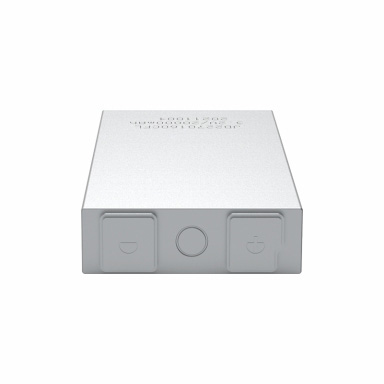

  • Low Temperature Square <br> Aluminum Housing 3.2V 20Ah
    Low Temperature Square
    Aluminum Housing 3.2V 20Ah
    Cell model:JD2270160CFL
    Charging temperature:-20~+45℃
    Discharge temperature:-40~+55℃
    Maximum continuous charging current:20A
    Maximum continuous discharge current:60A
    Cell dimension:T22*W70*L160mm
    -40℃ Maximum Discharge Rate:3C
    -40℃ 3C Discharge Capacity Retention Rate≥70%
  • 1
  • 2

Battery Performance Parameters

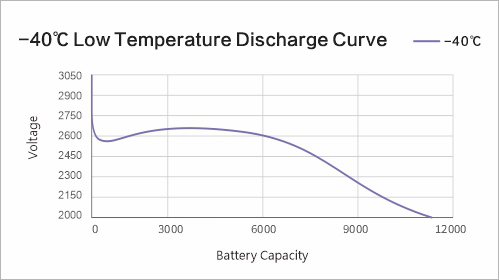

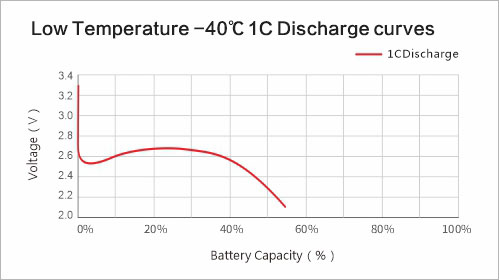

  • Low Temperature -40℃ 1C Discharge curves
    Low Temperature -40℃ 1C Discharge curves
  • Low Temperature -40℃ 1C Discharge curves
    Low Temperature -40℃ 1C Discharge curves

Application

Special equipment, deep-sea operation, polar scientific research, cold zone rescue, electric power communication, public security, medical electronics, railways, ships, robots,etc.

  • 1
  • 2
  • 3

Special Battery Customization

Customize Battery for Special Purpose to Meet Your Unique Demand.

Core Technology

  • High Energy Density/High Temperature
    High Rate/High Safety

    Volume energy density 700 watt-hours/liter
    100C continuous discharge, 80℃ high temperature continuous 200 cycles
    Pass puncture, heavy impact and other safety tests.

  • Low Temperature Charging Low Temperature Discharging

    - 40℃ Low Temperature 0.2C Charging,Charge and discharge over 300 cycles
    - 50℃ low temperature discharge,over 75% capacity retention ratio

  • Explosion- proof

    190~200Wh/kg High Energy Density
    Meet Ex ia\ib IIA\IIB T1~T4 explosion-proof standards.
    Pass puncture, heavy impact and other safety tests.
