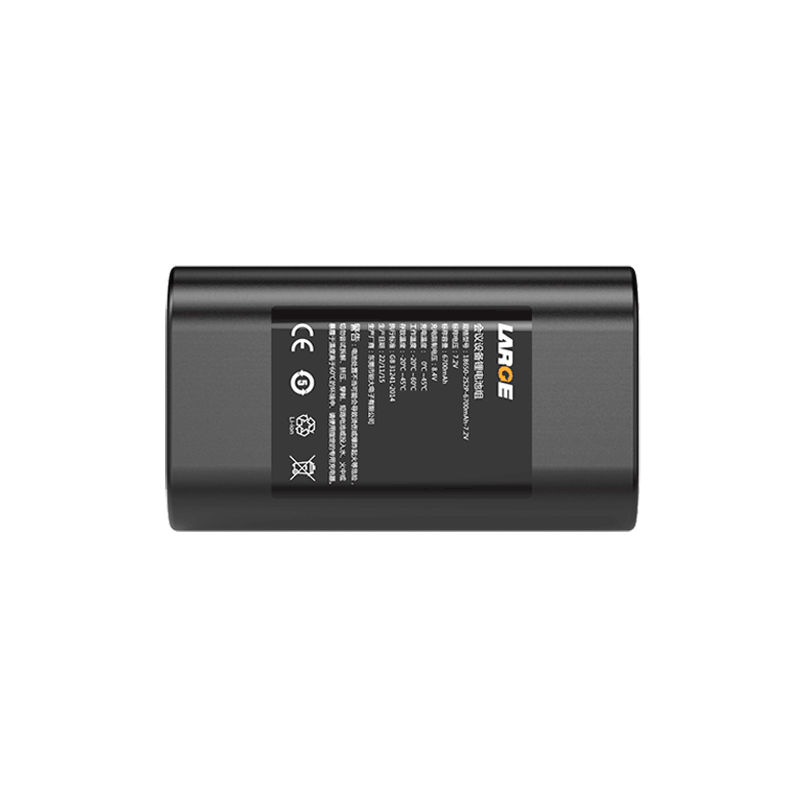

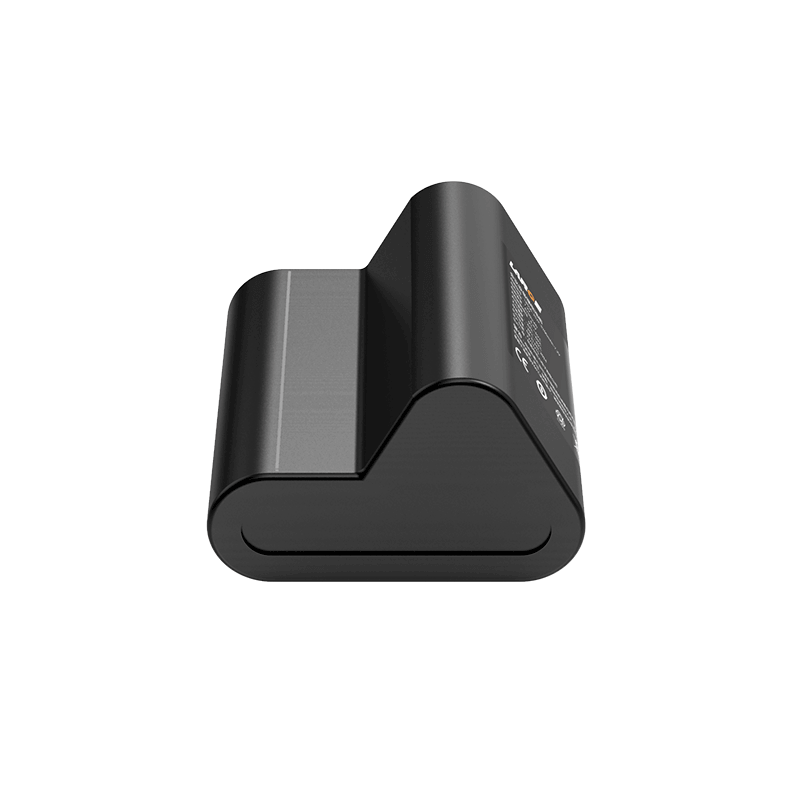

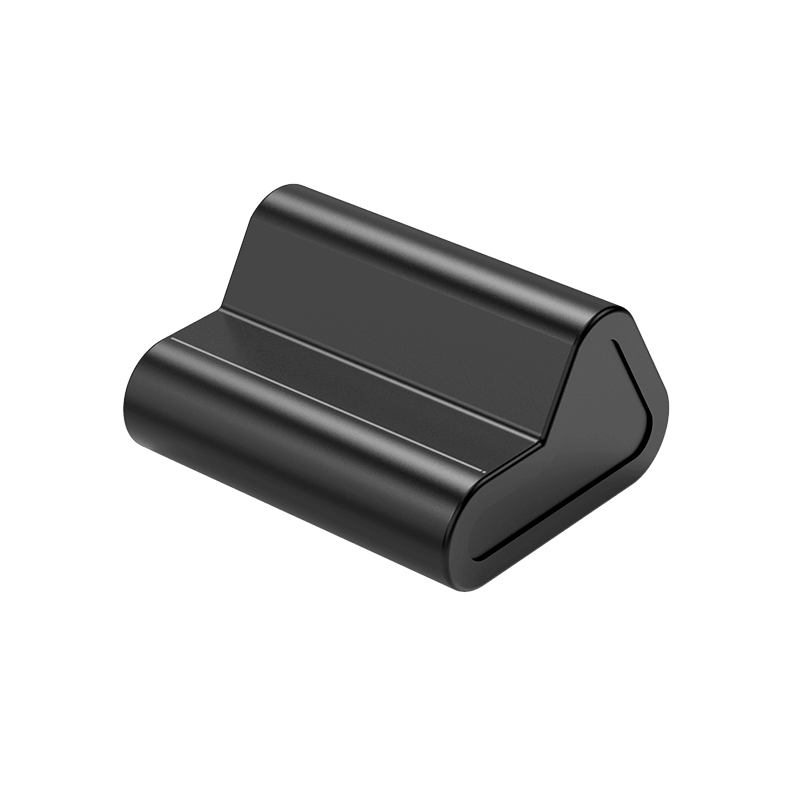

18650 7.2V 6700mAh Conference Equipment Lithium-ion Battery Pack
Product Number:
33DZ050-02
Nominal voltage:
7.2V
Nominal capacity:
6700mAh
Battery Configuration:
18650-2S2P
Dimension:
35×56.5×67.5mm
Application:
instruments
High Capacity Design, Stable Power Output, Multiple Protection System
Product Overview
This battery is designed for instruments, meters, and conference equipment, supporting continuous operation in portable and high-frequency usage scenarios. With stable power output and long-lasting performance, it ensures reliable operation in compact device spaces.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 33DZ050-02 |
| Cell Model | 18650/3.6V/3350mAh |
| Battery Configuration | 18650-2S2P |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 6700mAh |
| Rated Energy | 48.24Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 5V |
| Standard Charging Current | ≤3350mA |
| Standard Discharge Current | 3.35A |
| Max Continuous discharge current | 3.5-7.0A |
| Internal Resistance | ≤180mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～45℃ |
| Dimensions | 35×56.5×67.5mm |
| Weight | 200g |
| Battery Case | PVC |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
