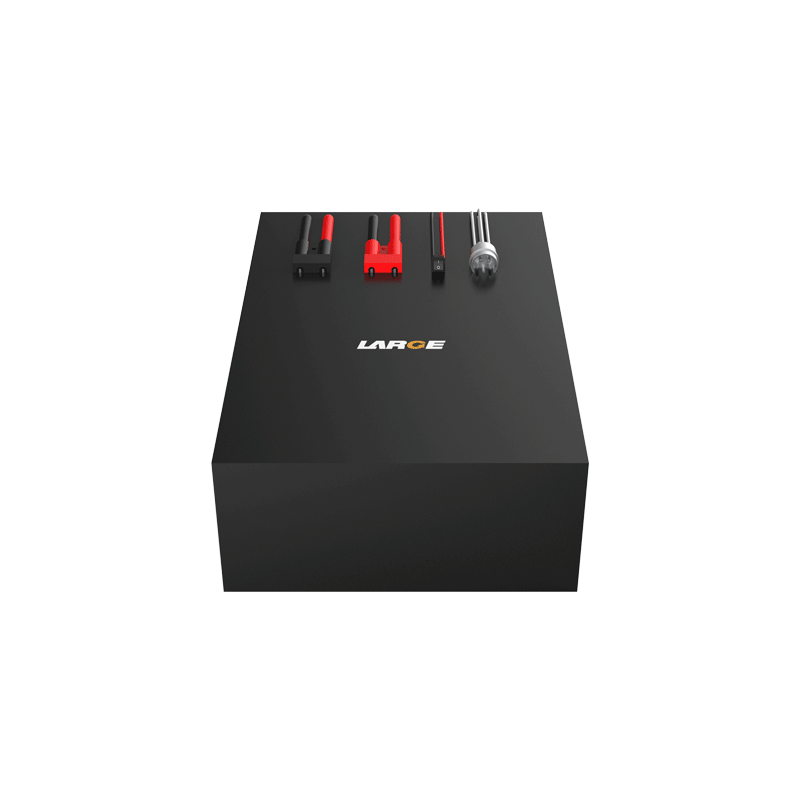

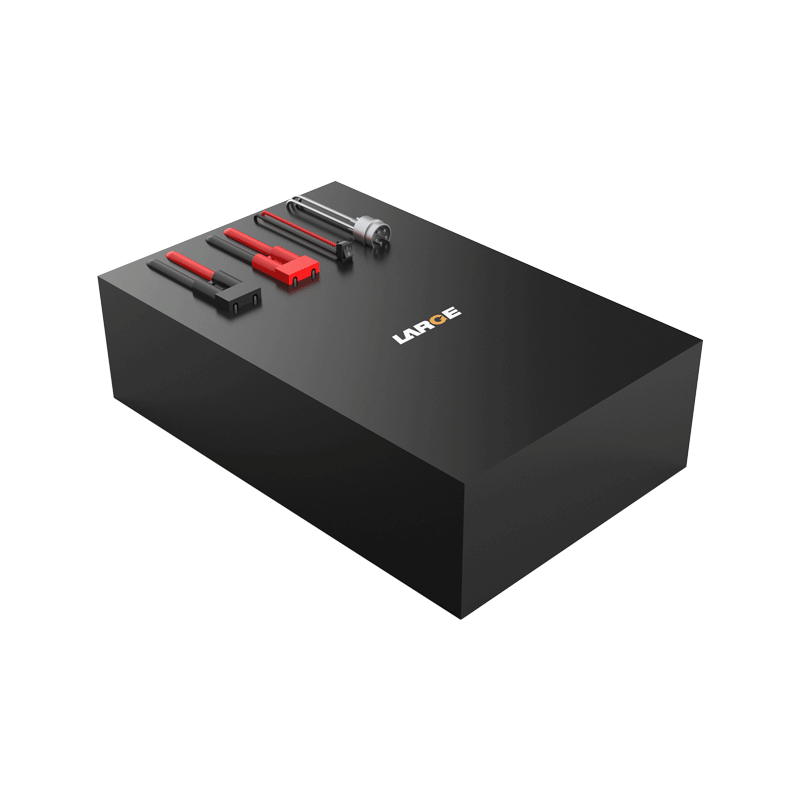

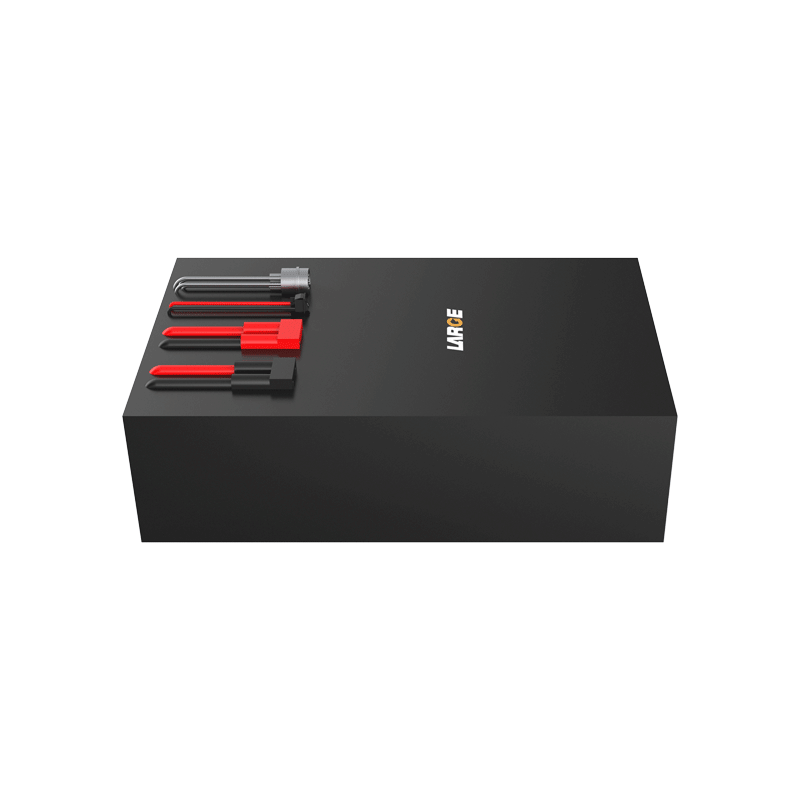

46.8V 26Ah 18650 Lithium Polymer Battery Samsung Battery for Explosive-handling Robot

Product Detail

Product number: 04EQ029-13

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650-13S8P/46.8V/26Ah

Nominal voltage:46.8V

Nominal capacity:80Ah

Charging voltage: 54.6V

Charging current: ≤5A

Discharging current: 26A

Instant discharging current: 2.5A

End-off voltage: 32.5V

Internal resistance: ≤120mΩ

Battery weight: 6kg

Product dimension: 280×180×80(Max)

Charging temperature:0~45℃

Discharging temperature: -20~50℃

Storage temperature: -20~40℃

Temperature protection: 65℃±5℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: robot, AGV, RGV


Product features

1. Shock-resistant: fill in the shock-resistant structure inside with fiberglass board to satisfy the requirements of good security and high reliability.

2. Large current: connect the batteries by copper nickel compositing with nickel strap, which is safe and reliable.

3. Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4. Data communication management: adopt BMS software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
