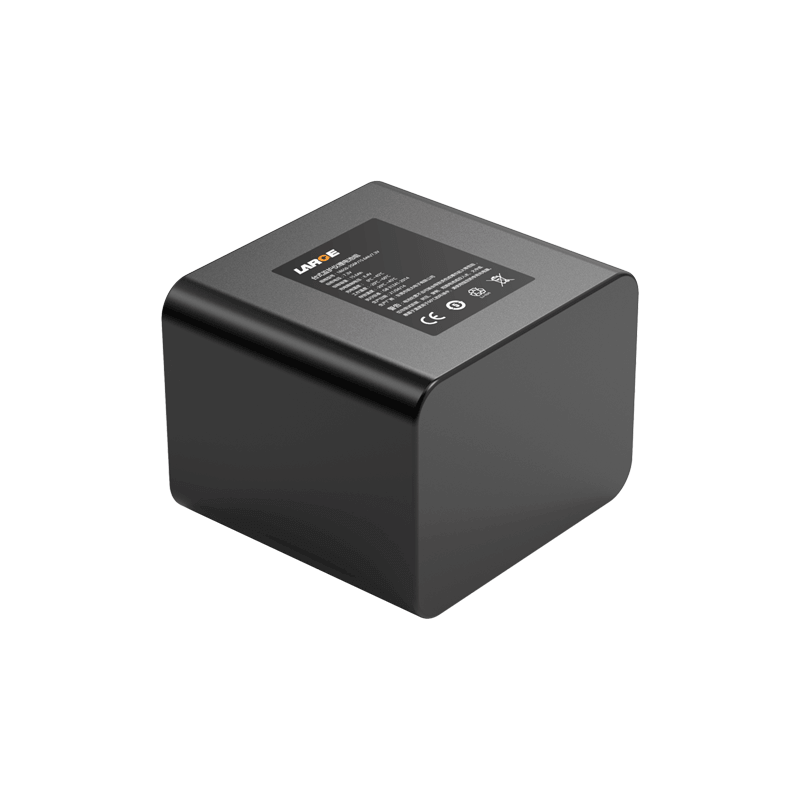

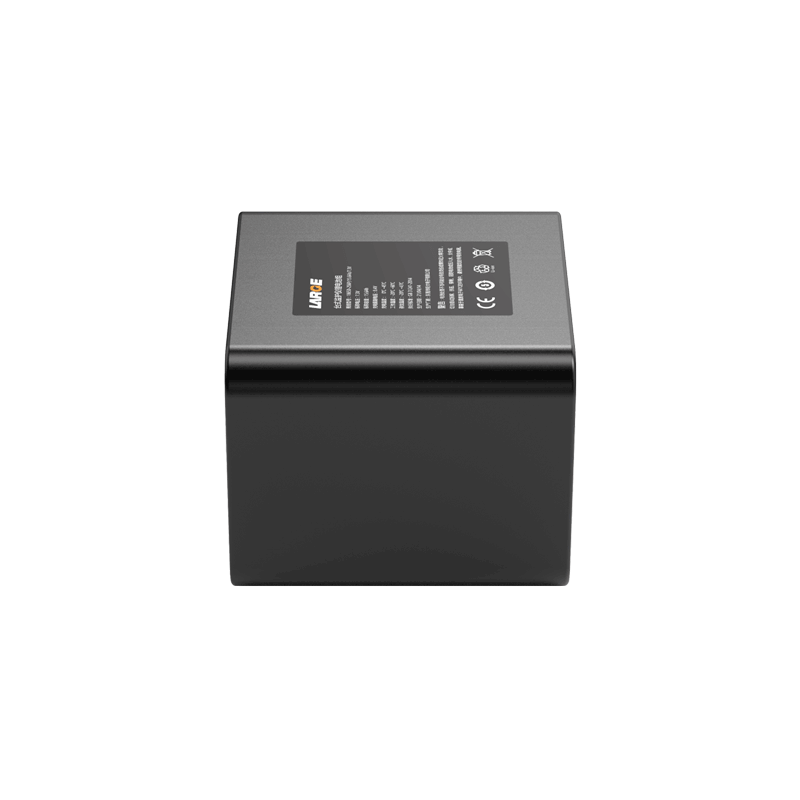

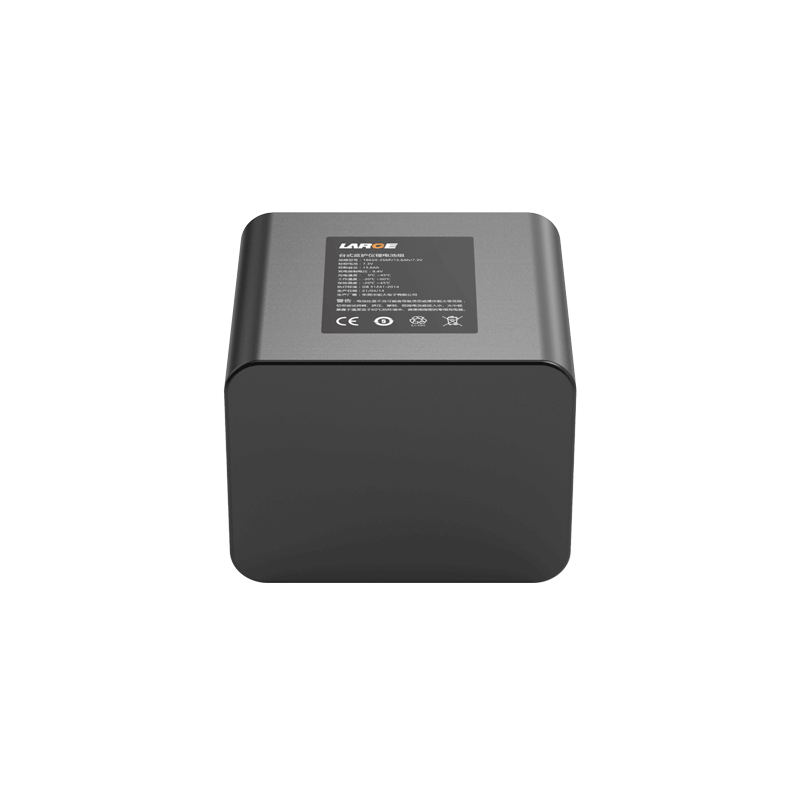

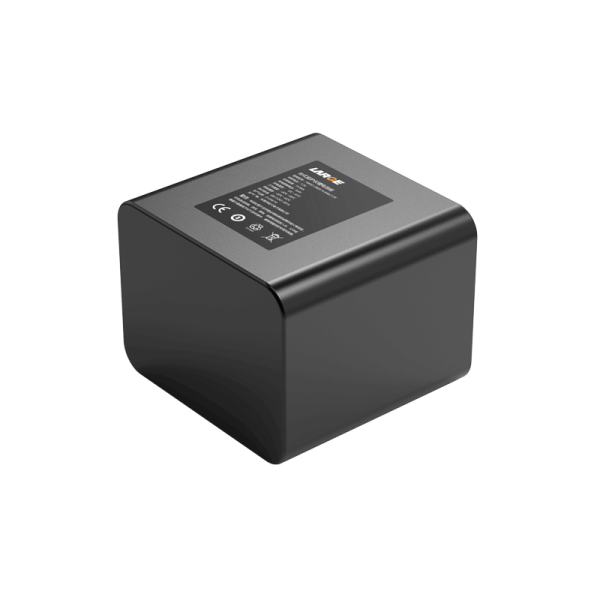

18650 7.3V 15.6Ah Lishen Battery for Desktop Monitor
Product Number:
06DQ040-04
Nominal voltage:
7.3V
Nominal capacity:
15.6Ah
Battery Configuration:
18650-2S6P
Dimension:
74
Application:
desktop monitors and display equipment
High Capacity Design, Multi Protection System, Stable Power Output
Product Overview
This battery is designed for desktop monitors and display equipment, suitable for continuous operation and stable power supply applications. With high capacity, reliable output, and durable protection performance, it supports long working hours in demanding operating environments.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 06DQ040-04 |
| Cell Model | 18650/2600mAh/3.65V |
| Battery Configuration | 18650-2S6P |
| Nominal Voltage | 7.3V |
| Nominal Capacity | 15.6Ah |
| Rated Energy | 113.88Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 5.5V |
| Standard Charging Current | ≤3A |
| Standard Discharge Current | ≤3A |
| Internal Resistance | ≤180mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 60℃ |
| Dimensions | 74 |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
