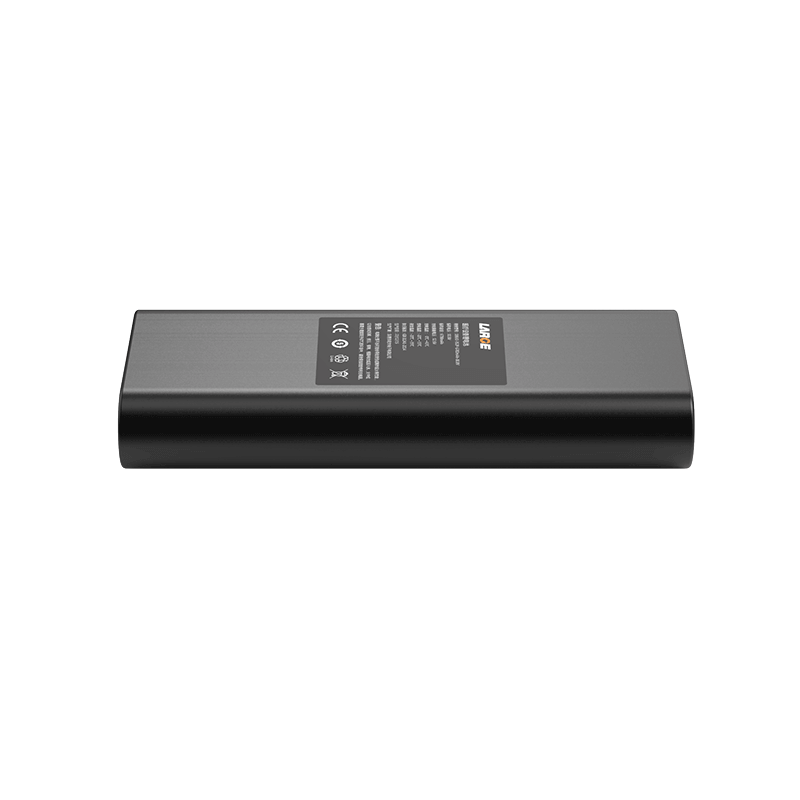

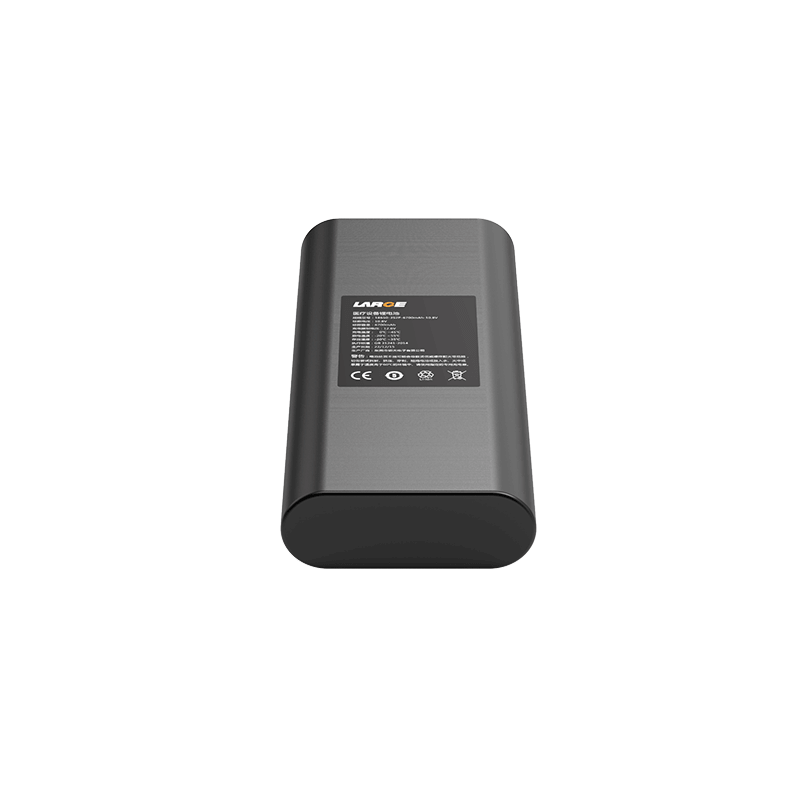

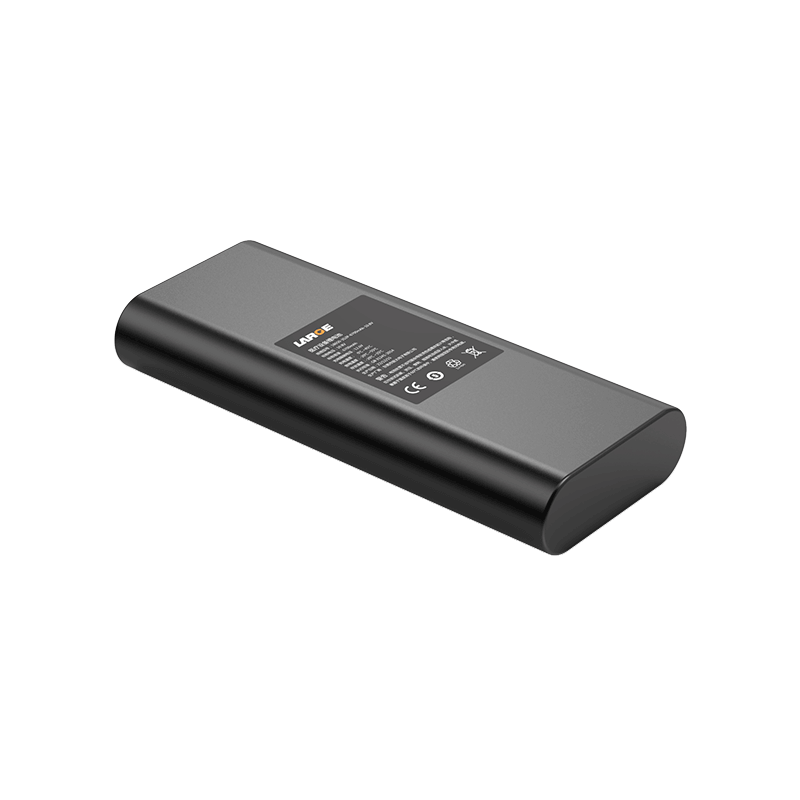

18650 10.8V 6700mAh Medical Device Lithium-ion Battery
18650 10.8V 6700mAh Lithium-ion Battery Pack - Image 2
18650 10.8V 6700mAh Lithium-ion Battery Pack - Image 3

18650 10.8V 6700mAh Lithium-ion Battery Pack

Product Number:
40AQ025-01
Nominal voltage:
10.8V
Nominal capacity:
6.7Ah
Battery Configuration:
18650-3S2P
Dimension:
138*58*21mm
Application:
medical device
Get Custom Solution
High Capacity 3S2P,Soft Pack Design,Multi Protection System
Product Overview

This battery is designed for medical tablets, portable medical devices, security systems, and other field equipment. It ensures stable output and reliable protection performance, supporting continuous operation and high-demand usage in compact portable environments while maintaining safety and durability.

Electrical Specifications

Attribute Parameter
Product Number 40AQ025-01
Cell Model 18650-3350mAh-3.6V
Battery Configuration 3S2P
Nominal Voltage 10.8V
Nominal Capacity 6.7Ah
Rated Energy 72.36Wh
Charging Voltage 12.6V
Discharge Cut-off Voltage 7.5V
Standard Charging Current ≤3350mA
Standard Discharge Current 1280mA
Max Continuous discharge current ≤6.7A
Internal Resistance ≤180mΩ

Mechanical & Environmental

Attribute Parameter
Charging Temperature 0～45℃
Discharge Temperature -20～+55℃
Storage Temperature -20～+35℃
Dimensions 1385821mm (Max)
Weight 350g
Battery Case Soft pack
Protection System Short circuit protection, overcharge protection, over-discharge protection, overtemperature protection, overcurrent protection, ESD protection

We support flexible customization based on your project requirements, including:

  • Voltage range: 3.2V – 72V
  • Capacity range: 100mAh – 100Ah
  • Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
  • Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
  • BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
