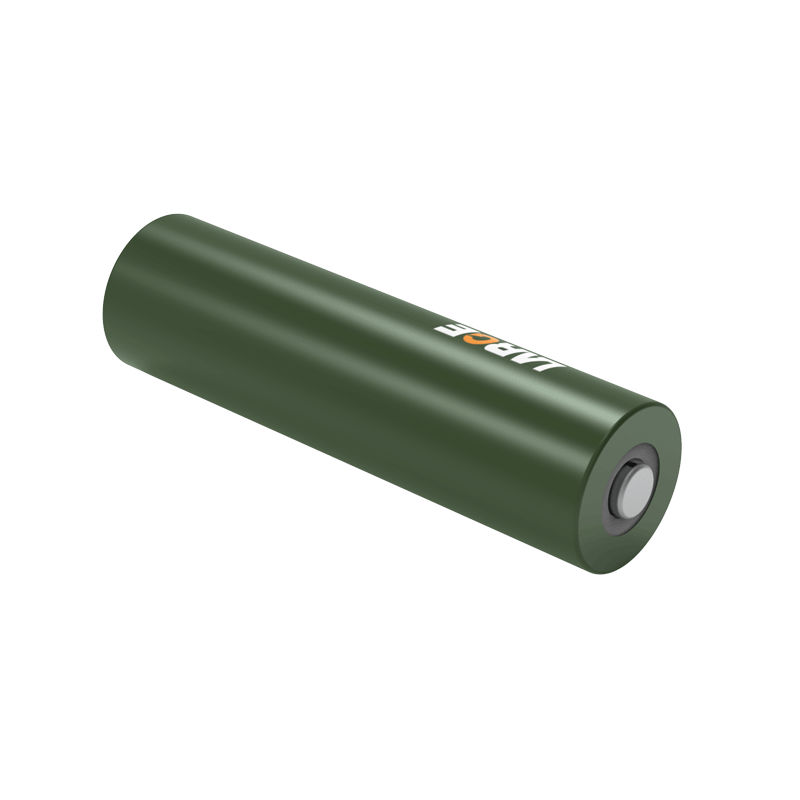

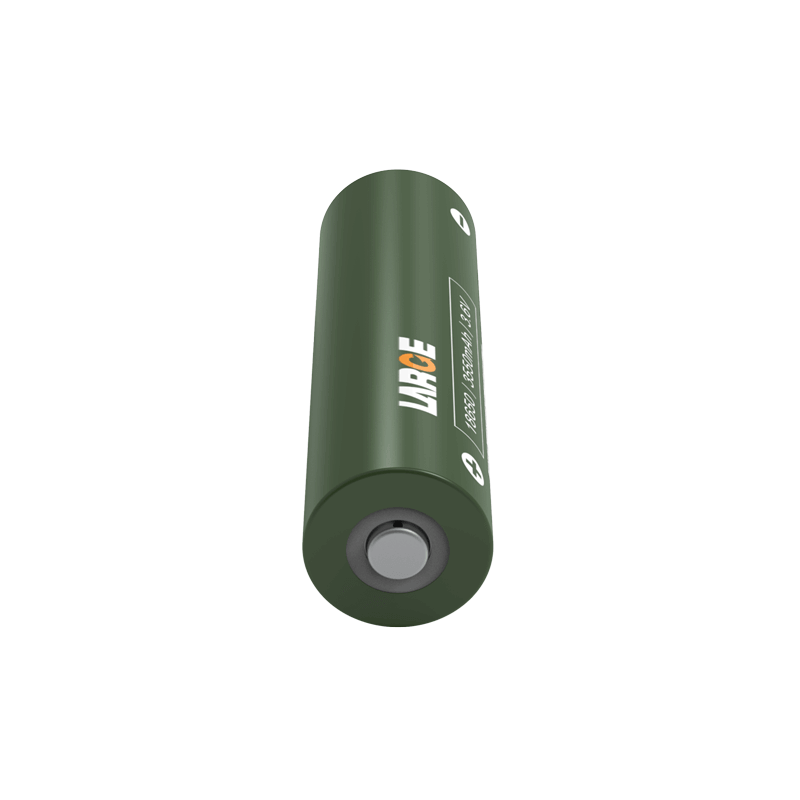

18650 3.7V 2200mAh Battery Lithium-ion Batteries for Industrial Instruments
Product Number:
40AQ015-01
Nominal voltage:
3.7V
Nominal capacity:
2200mAh
Battery Configuration:
18650-1S1P
Dimension:
φ19.5 × 71mm
Application:
portable electronic devices and industrial instruments
Stable Power Output, Compact PVC Design, Reliable Protection System
Product Overview
This battery is designed for portable electronic devices and industrial instruments, suitable for outdoor operations, mobile testing, and continuous power supply applications. Featuring stable output, a lightweight structure, and reliable protection performance, it supports long-term and stable device operation.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 40AQ015-01 |
| Cell Model | 18650 / 2200mAh / 3.67V |
| Battery Configuration | 18650-1S1P |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 2200mAh |
| Rated Energy | 8.14Wh |
| Charging Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.5V |
| Standard Charging Current | 1A |
| Standard Discharge Current | 1A |
| Max Continuous Discharge Current | 2A |
| Internal Resistance | ≤100mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45°C |
| Discharge Temperature | -40 ~ +55°C |
| Storage Temperature | -20 ~ +45°C |
| Dimensions | φ19.5 × 71mm |
| Weight | 70g |
| Battery Case | PVC |
| Protection System | Standard Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
