Custom Lithium ion Battery Pack

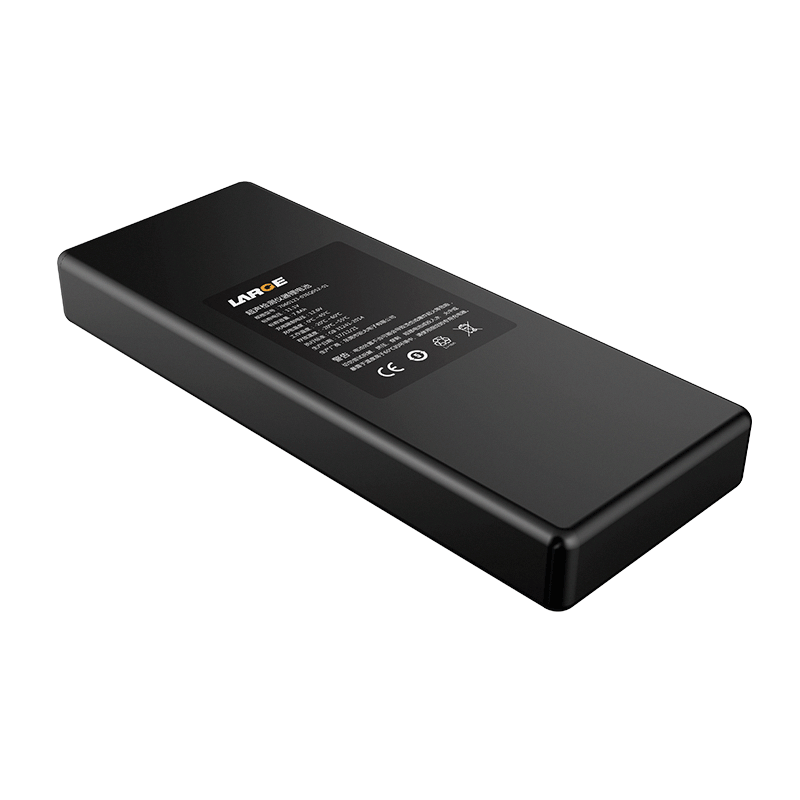

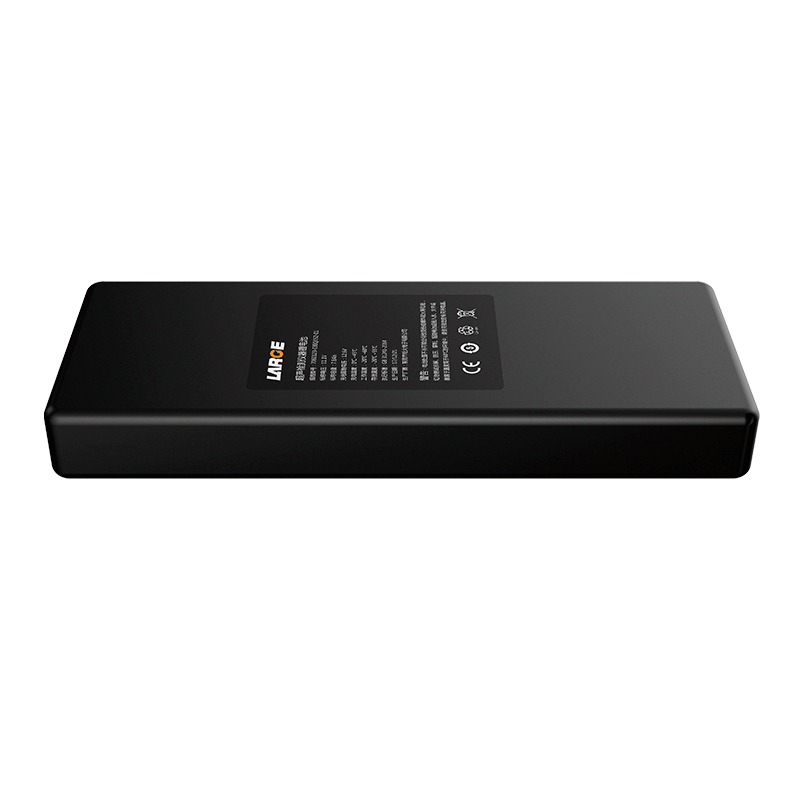

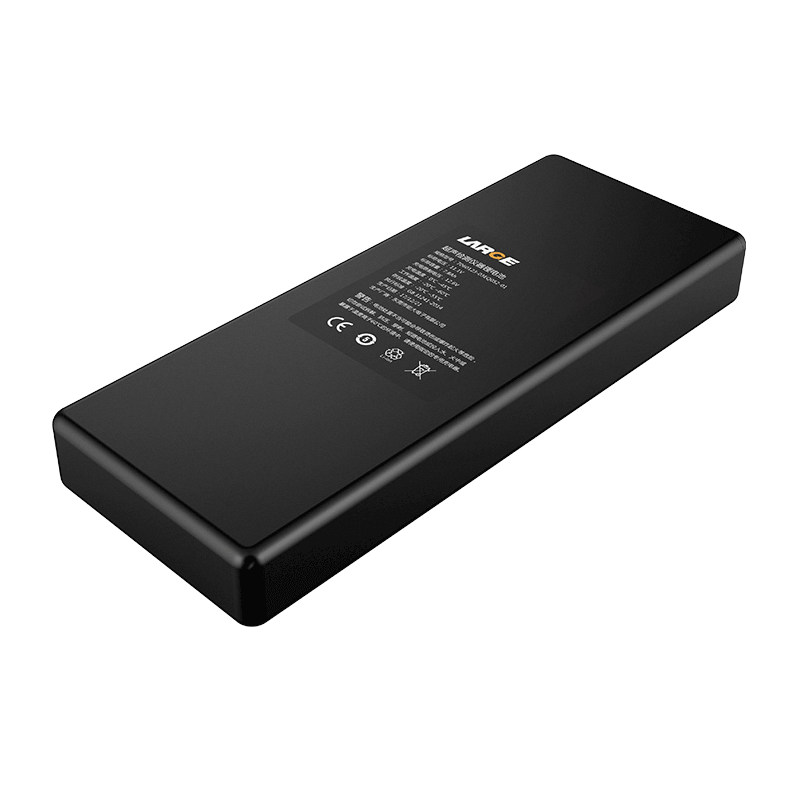

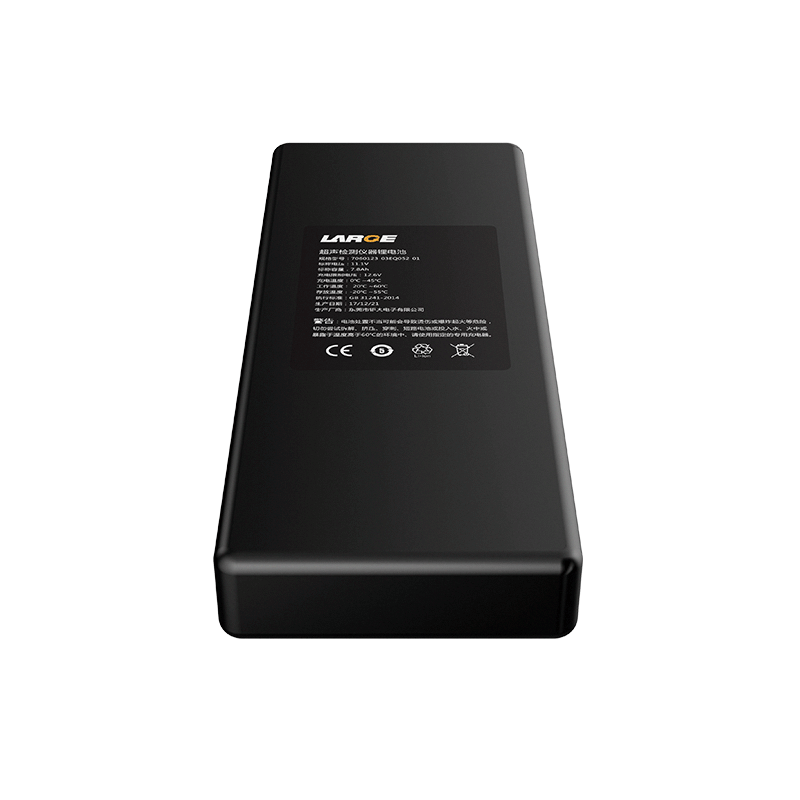

12V 7800mAh 1865 Lithium Ion Battery for Ultrasonic Test Instrument

  • Model number:03EQ052-03

  • Nominal voltage:11.1V

  • Nominal capacity:2200mAh

  • Battery cell:18650/3.6V/2600mAh

  • Dimension:170*72*22mm(Max)

  • Application:industrial battery, instrument detection, ultrasonic testing equipment, etc.

Product Detail

Product number: 03EQ052-03

Cell model:18650/3.6V/2600mAh

Battery specification: 18650-3S3P/12V/7800mAh

Nominal voltage:11.1V

Nominal capacity:2.2Ah

Charging voltage: 7.8Ah

Charging current: 12.6V

Discharging current: 1.56A

Instant discharging current: 3A

End-off voltage: 6V

Internal resistance: ≤100mΩ

Battery weight: 450g

Product dimension: 170*72*22mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~55 ℃

Temperature protection: 60℃±5℃

Battery case: outsourcing PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: industrial battery, instrument detection, ultrasonic testing equipment, etc.


*
*
*
