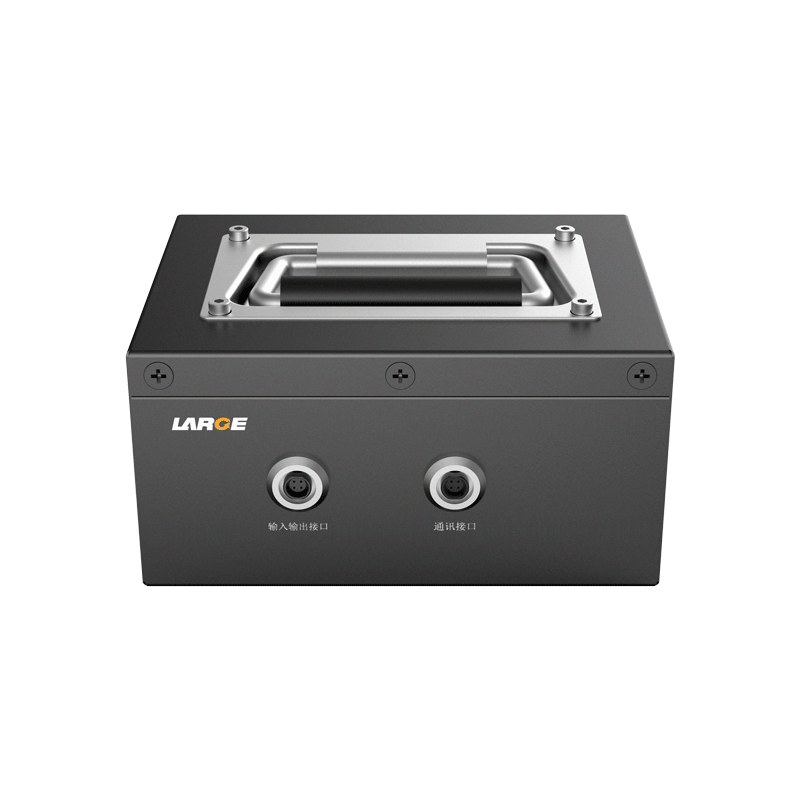

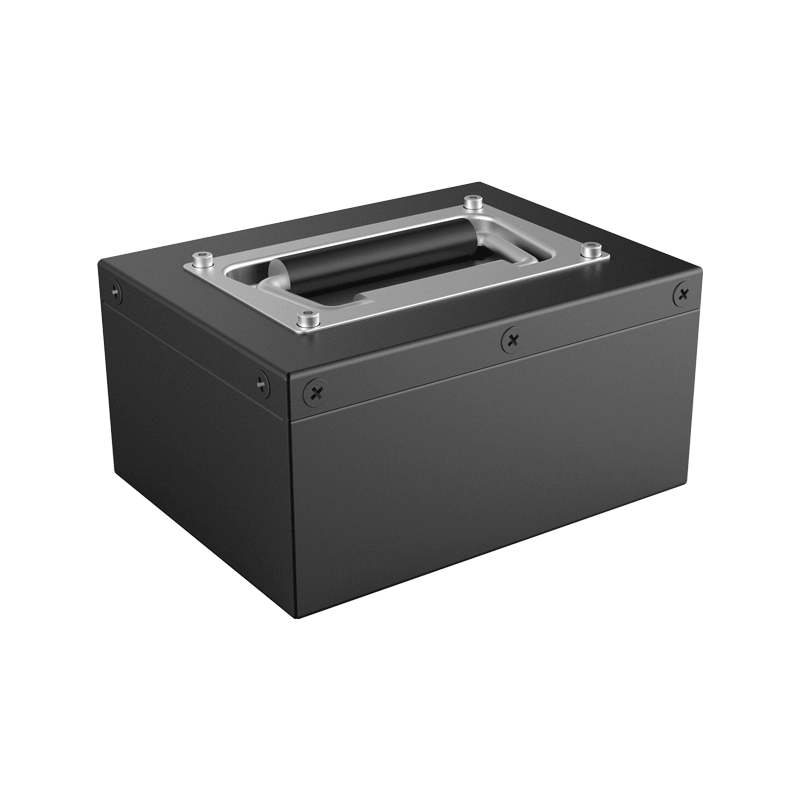

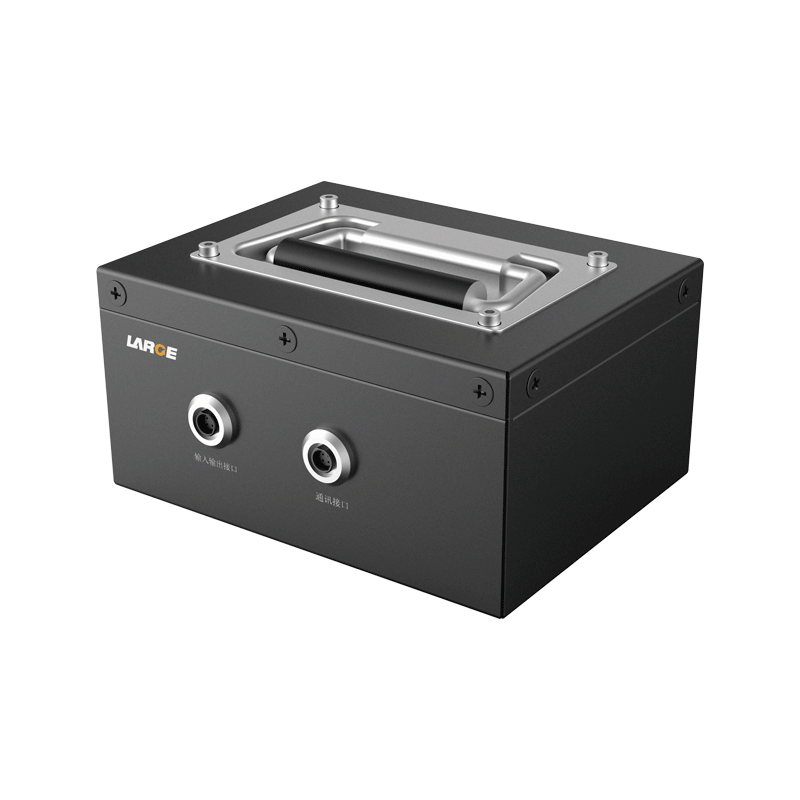

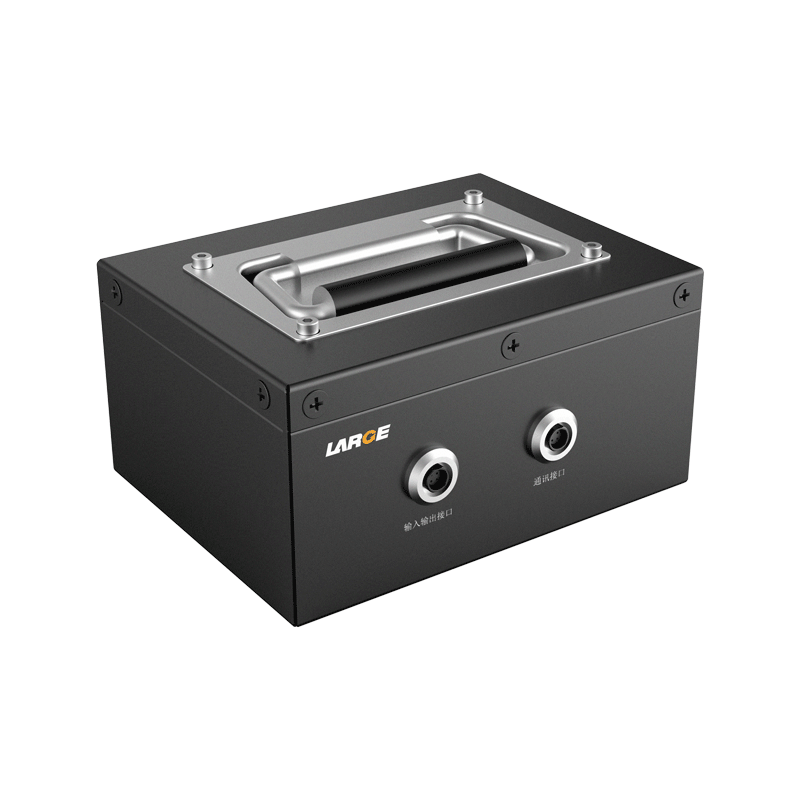

25.2V 13Ah 18650 Lithium Ion Battery Lishen Battery for Environmental Monitoring Equipment with RS 485 Communication Port

Name: 25.2V 13Ah 18650 Lithium Ion Battery Lishen Battery for Environmental Monitoring Equipment with RS 485 Communication Port
Brand: Large Power
Rating: 4.9 (91 reviews)

Model number:36AQ025-01
Nominal voltage:25.2V
Nominal capacity:13000mAh
Battery cell:18650/3.6V/2.6Ah
Dimension:170×130×85（Max）
Application:environmental protection equipment

Request A Quote

< >

Product Detail

Product number: 36AQ025-01

Cell model：18650/3.6V/2.6Ah

Battery specification: 18650-7S5P/25.2V/13Ah

Nominal voltage：25.2V

Nominal capacity：13Ah

Charging voltage: 29.4V

Charging current: ≤2.5A

Discharging current: 2.5A

Instant discharging current: 13A

End-off voltage: 19.6V

Internal resistance: ≤200mΩ

Battery weight: 1.5Kg

Product dimension: 170×130×85（Max）

Charging temperature：0～45℃

Discharging temperature: -20～50℃

Storage temperature: -20～40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: environmental protection equipment
