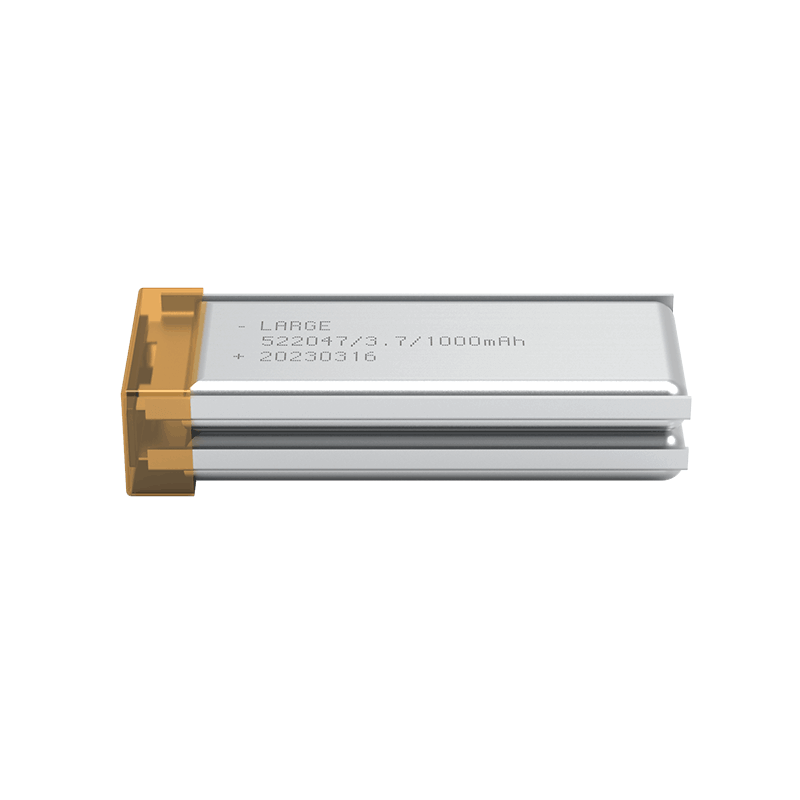

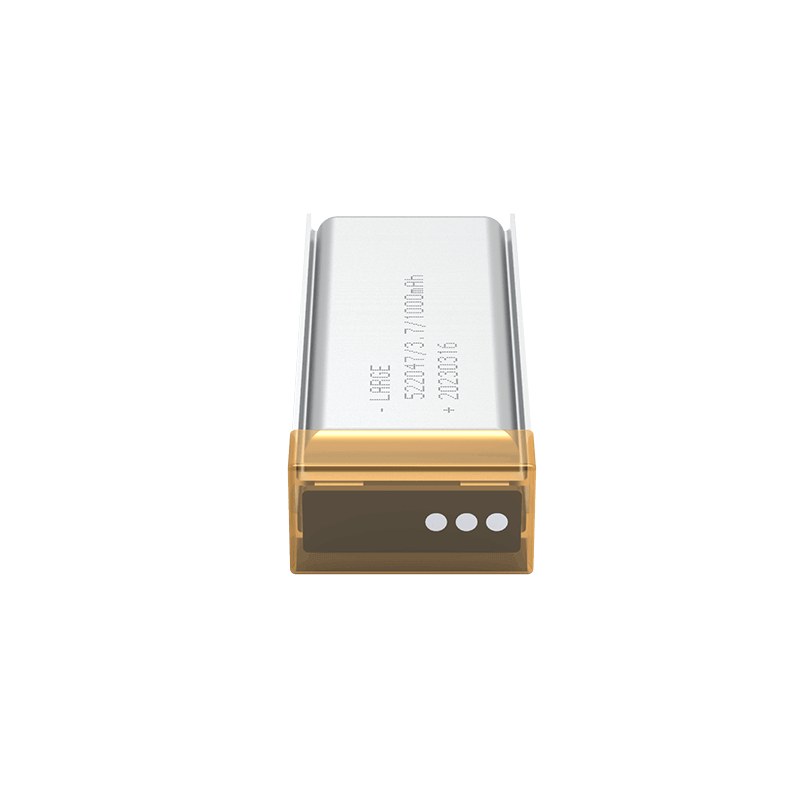

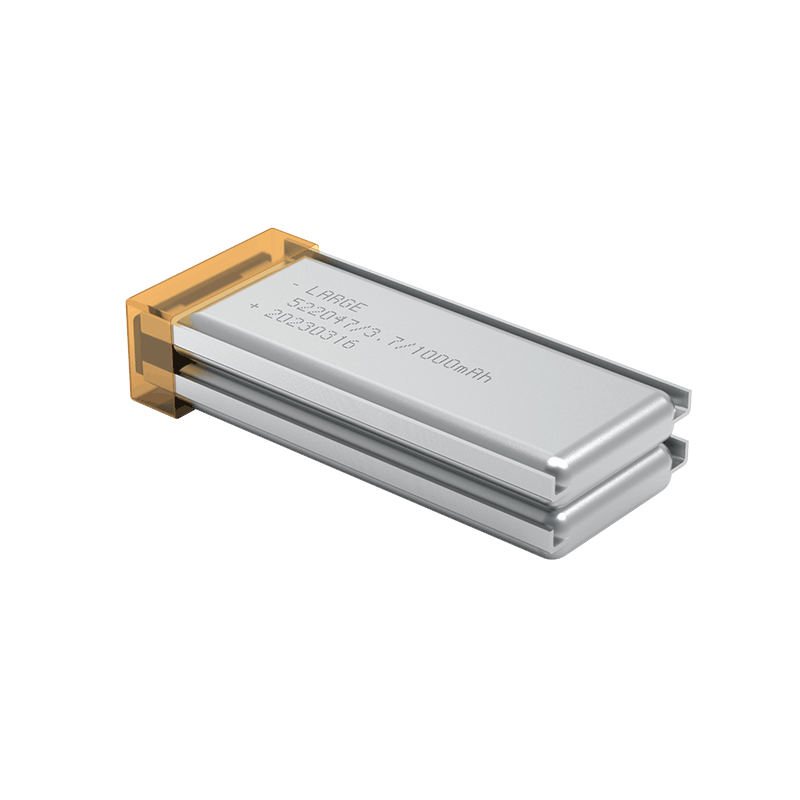

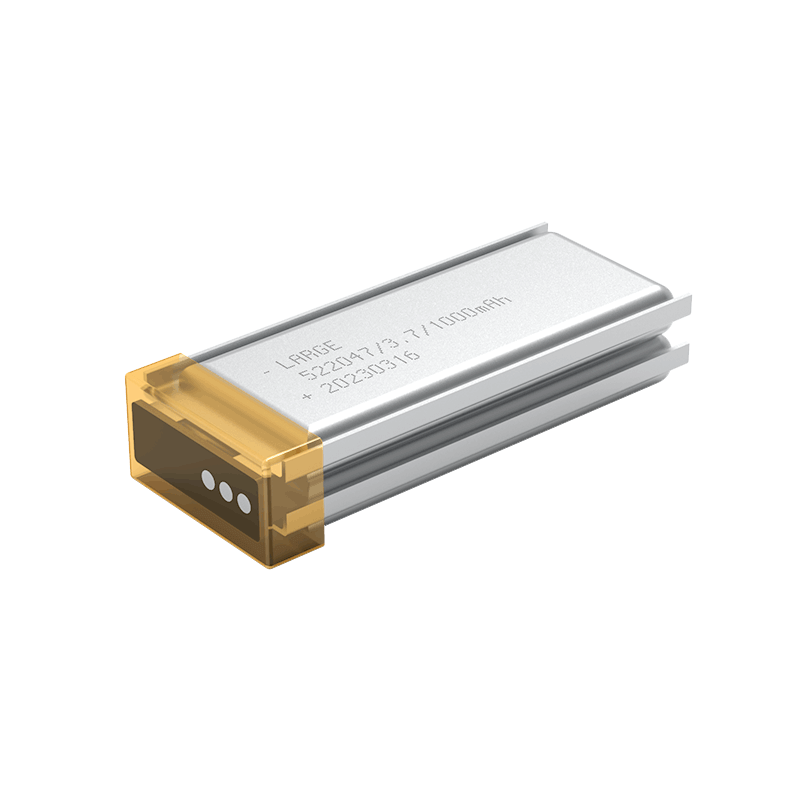

Special Headphones Low Temperature Polymer Battery 522047 3.7V 1000mAh

Special Headphones Low Temperature Polymer Battery 522047 3.7V 1000mAh
Special Headphones Low Temperature Polymer Battery 522047 3.7V 1000mAh
Special Headphones Low Temperature Polymer Battery 522047 3.7V 1000mAh
Special Headphones Low Temperature Polymer Battery 522047 3.7V 1000mAh

Product Detail

Product number: 36AQ769-01

Battery model: 522047-500mAh-3.7V

Battery specification: 522047-1S2P-1000mAh-3.7V

Product size: 50*20.5*11mm (Max)

Nominal voltage: 3.7V

Nominal capacity: 1000mAh

Finished internal resistance: ≤180mΩ

Charging voltage: 4.2V

Charging current: ≤2.0A

Discharge current: ≤1.0A

Discharge cut-off voltage: 2.5V

Battery weight: 15g

Charging temperature: 10 ~ 45℃

Discharge temperature: -40 ~ 55℃

Storage temperature: -10 ~ 35℃

Battery package: Simple package

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Applications: Special earphones, special operation equipment, portable equipment


Product Features

1.Simple package is simple and reliable,and easy to install;

2.National standard wire output mode: using solder joint and solder welding can increase conductive reliability;

3.Low temperature -40℃ discharge lithium battery, discharge capacity is more than 60%

4.Battery protection management: Using special lithium battery protection chip with high stability, high precision monitoring, accurate control to minimize safety hazards;

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.

*
*
*
*
*
