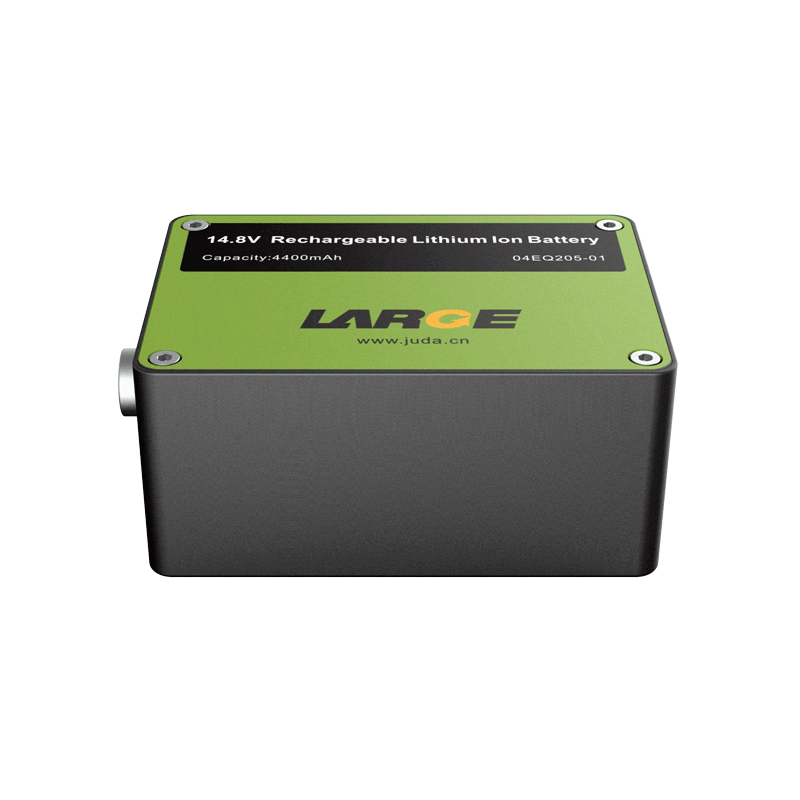

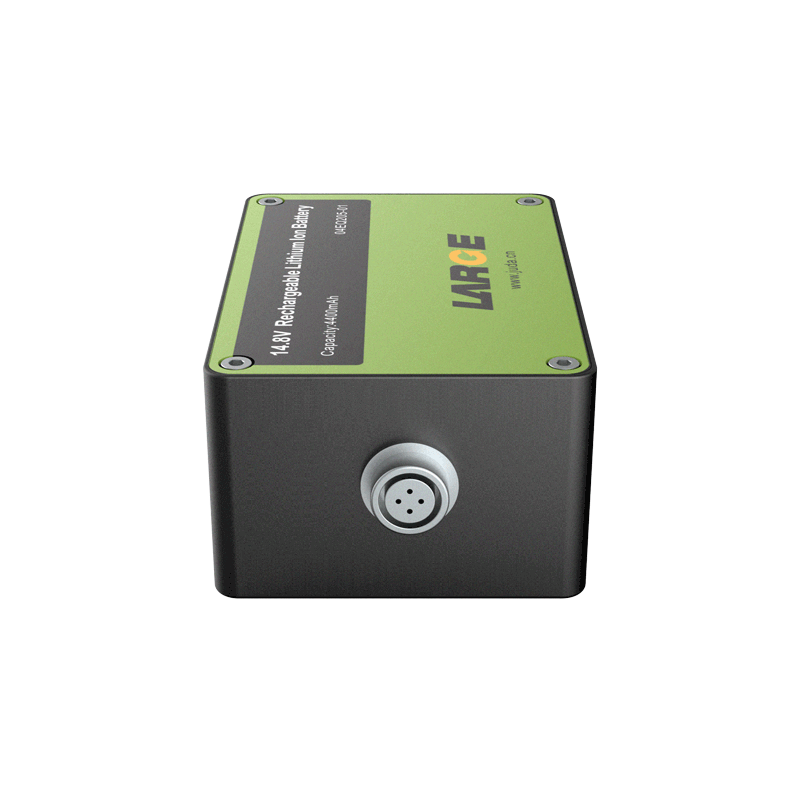

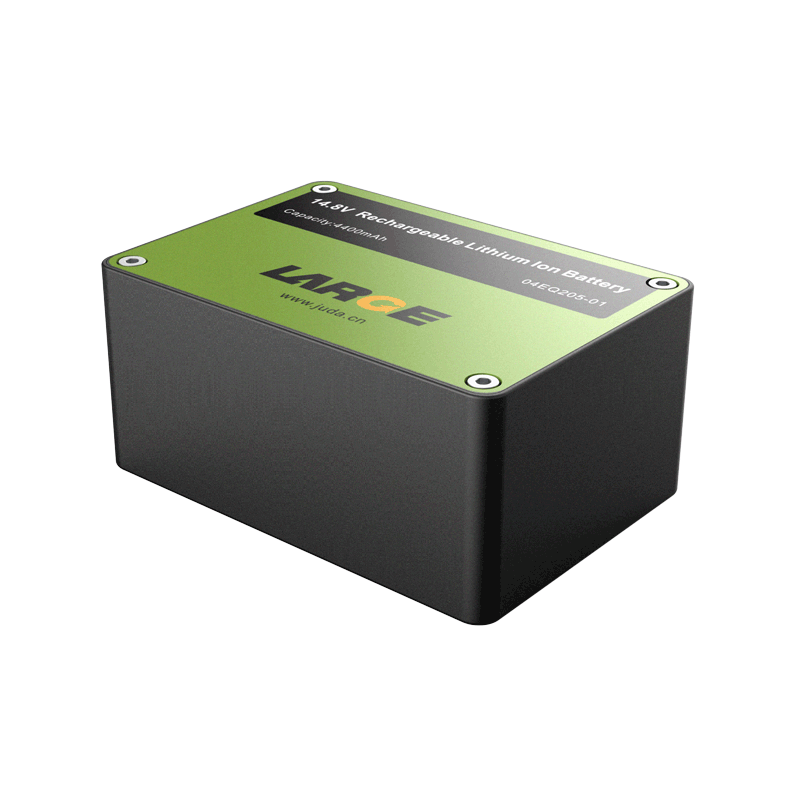

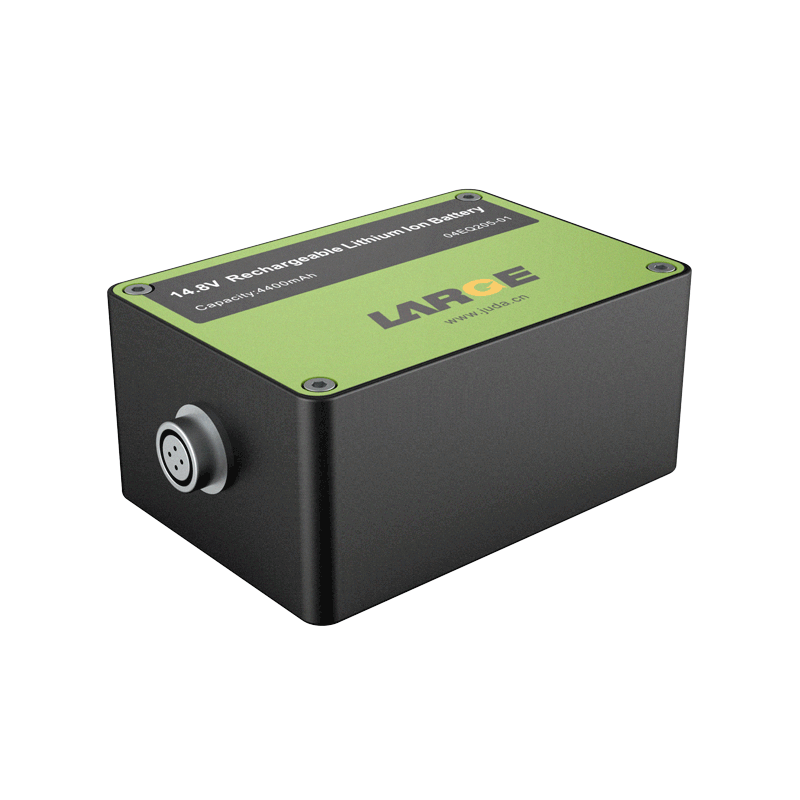

18560 14.8V 4400mAh Low Temperature Battery for Monitoring Equipment
Product Number:
04EQ205-01
Nominal voltage:
14.8V
Nominal capacity:
4400mAh
Battery Configuration:
18650-4S2P
Dimension:
120 × 80 × 50 mm (Max)
Application:
monitoring equipment
Aluminum Alloy Housing, -40℃ Low Temperature, Multi Protection System
Product Overview
This battery is designed for monitoring equipment, instruments, and industrial devices, supporting continuous operation in harsh outdoor environments. Featuring stable power output, a rugged aluminum alloy housing, and reliable -40℃ performance, it ensures dependable operation under demanding conditions.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 04EQ205-01 |
| Cell Model | 18650/3.7V/2200mAh |
| Battery Configuration | 18650-4S2P |
| Nominal Voltage | 14.8V |
| Nominal Capacity | 4400mAh |
| Rated Energy | 65.12Wh |
| Charging Voltage | 16.8V |
| Discharge Cut-off Voltage | 10V |
| Standard Charging Current | ≤1A |
| Standard Discharge Current | 1A |
| Max Continuous discharge current | 2A |
| Internal Resistance | ≤250mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -40～60℃ |
| Storage temperature | -20～20℃ |
| Dimensions | 120 × 80 × 50 mm (Max) |
| Weight | 600g |
| Battery Case | Al6061 Aluminum Alloy |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
