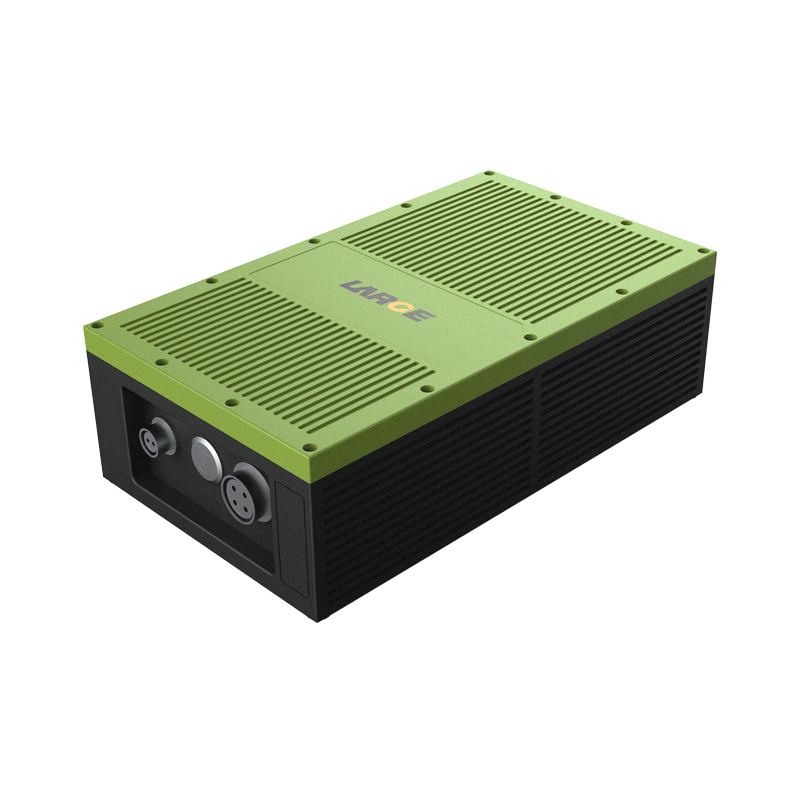

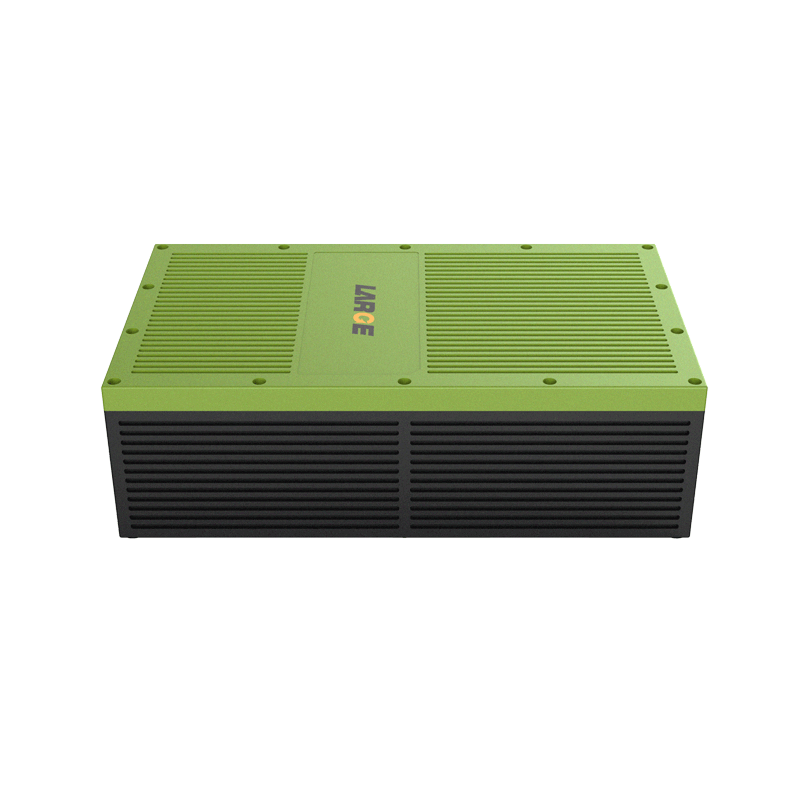

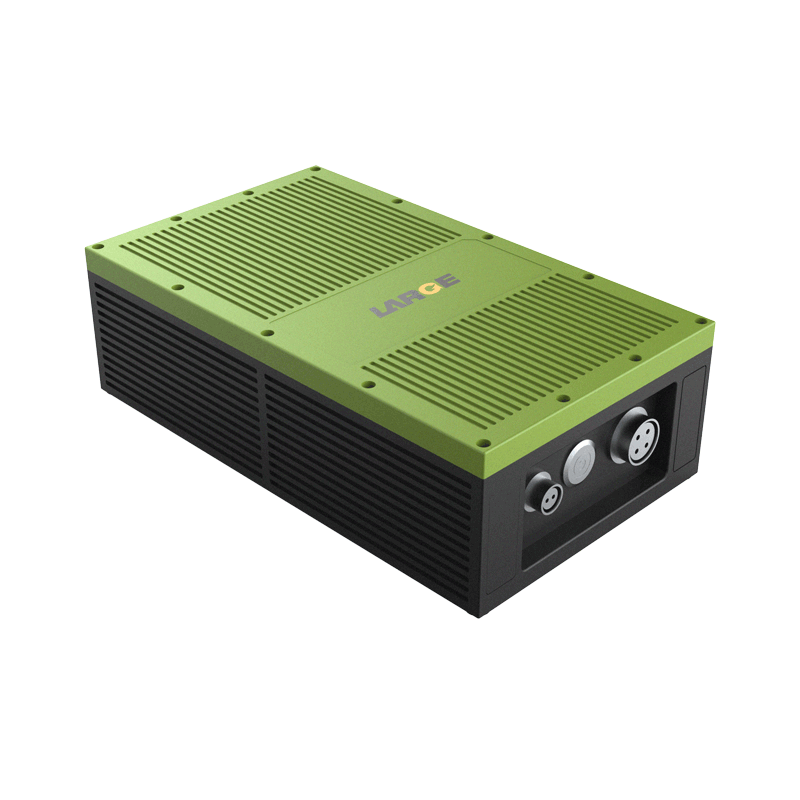

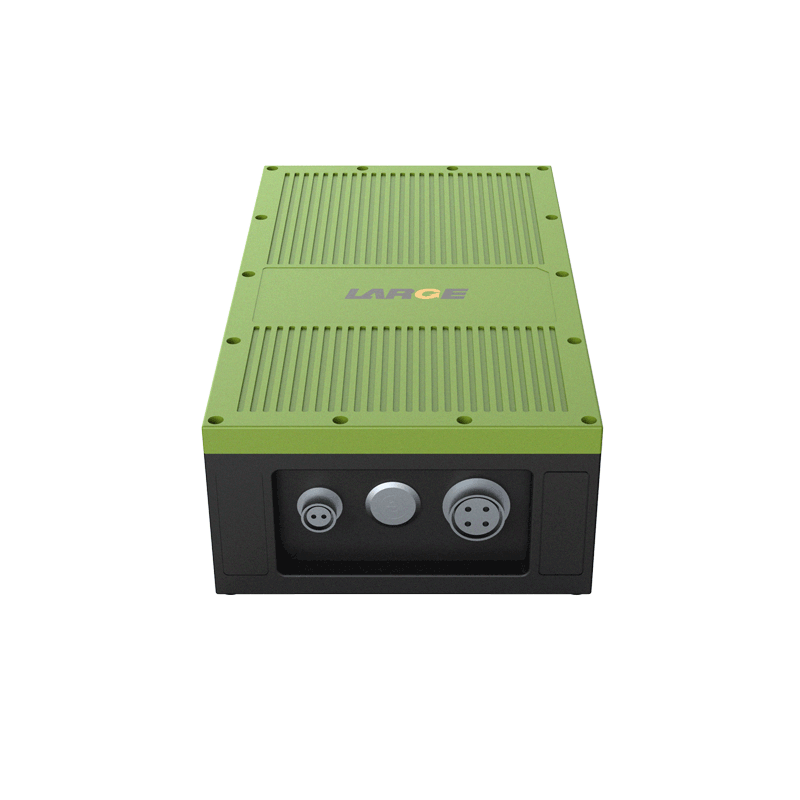

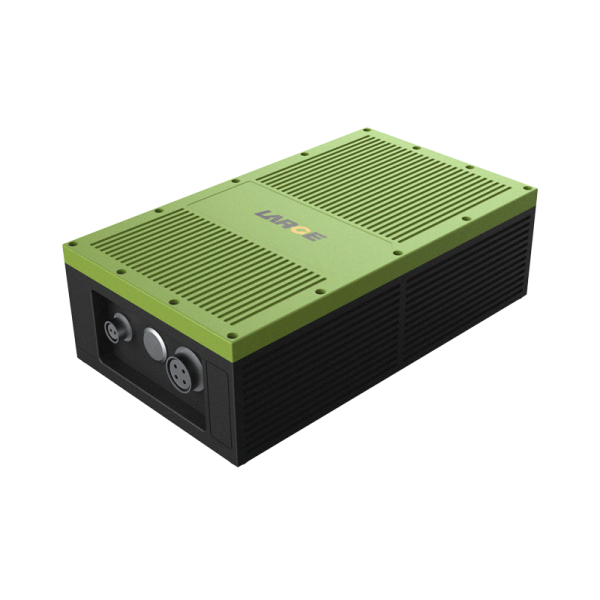

Custom Lithium ion Battery Pack

18650 11.1V 37Ah Low Temperature Battery for Portable Equipment

Product Detail

Product number: 30AQ018-02

Cell model:18650/2200mAh/3.7V

Battery specification: 18650-3S17P/11.1V/37Ah

Nominal voltage:11.1V

Nominal capacity:37Ah

Charging voltage: 12.8V

Charging current: 10A

Discharging current: 10A

Instant discharging current: 20A 15ms

End-off voltage: 7.5V

Internal resistance: ≤60mΩ

Battery weight: 3.0kg

Product dimension: 262*152*80mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~55℃

Storage temperature: -20~35℃

Temperature protection: 60℃±5℃

Battery case: engineering plastic PC+ABS

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, power display, low power alarm, etc.

Application field: industrial device, portable device, special device, etc.

Parameter function: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, power display, low power alarm, etc.

Fast connection: aviation connector, which is fast, safe and reliable.

Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

The battery pack has good security, vehicle standard, stable performance and long cycle life.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

Shockproof: fill in the inside plastic housing with shockproof structure design, which meets the requirements of good security and nice reliability.

IP67 waterproof and dustproof grade.
