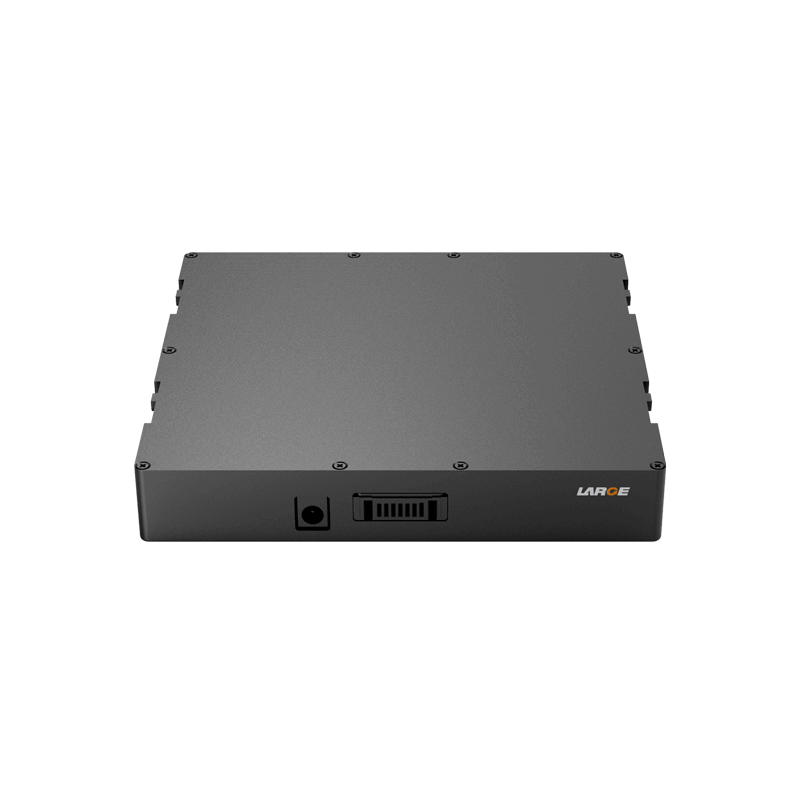

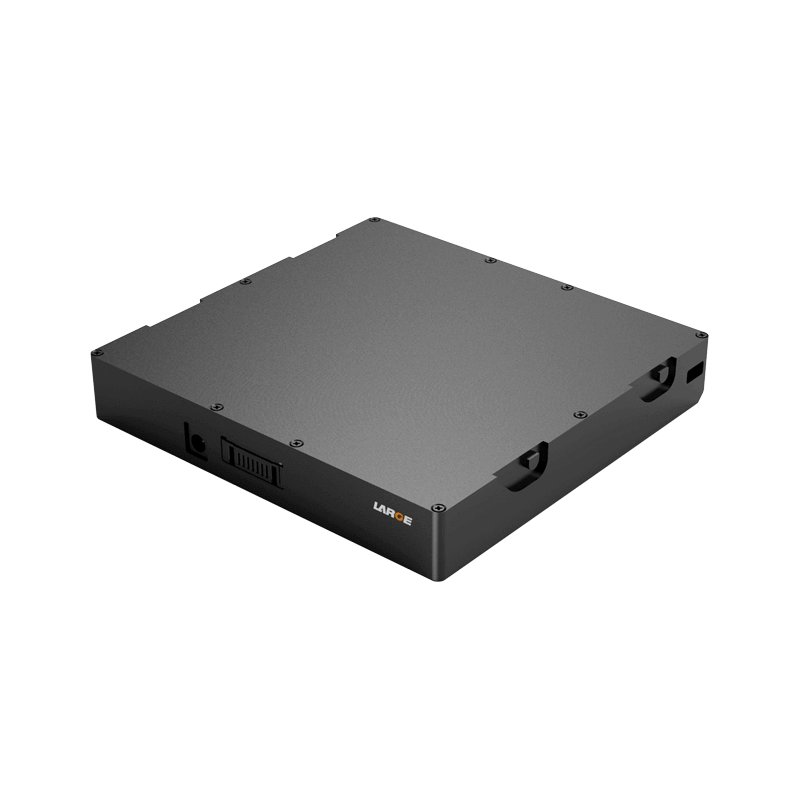

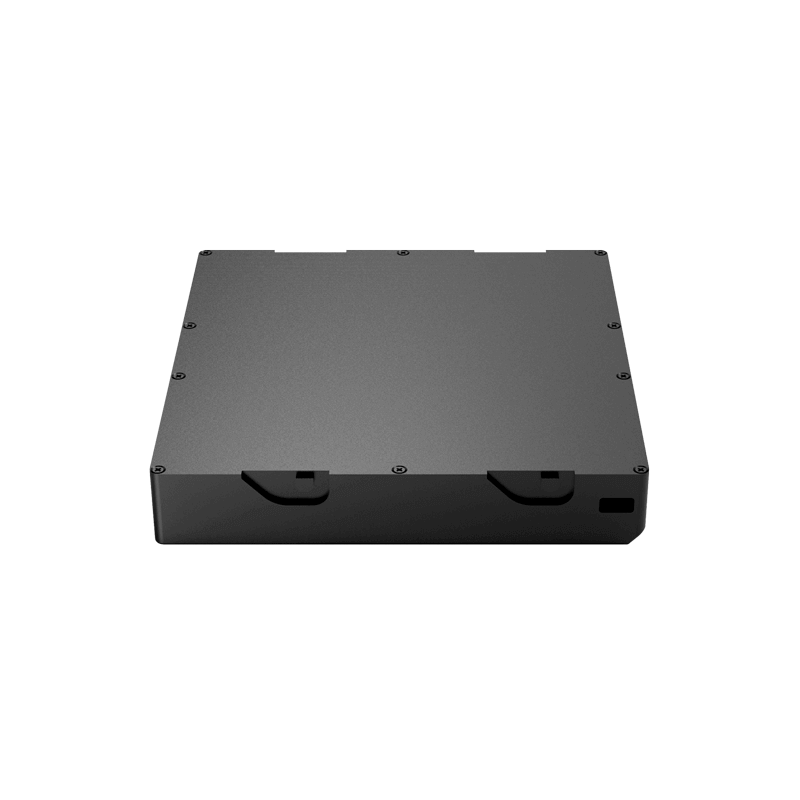

18650 10.8V 10.4Ah Samsung Battery for Industrial Remote Controls
Industrial Remote Controls Lithium ion Battery Pack
18650 10.8V 10.4Ah Lithium ion Battery Pack - Image 3

18650 10.8V 10.4Ah Lithium ion Battery Pack

Product Number:
01DQ0023-47
Nominal voltage:
10.8V
Nominal capacity:
10.4Ah
Battery Configuration:
18650-3S4P
Dimension:
150 × 143 × 24.5 mm
Application:
Industrial Remote Controls
Get Custom Solution
SMBUS Communication, Aluminum Alloy Housing, ESD Protection
Product Overview

This battery is designed for industrial remote controllers and portable control equipment used in engineering and industrial operation scenarios. Featuring stable SMBUS communication, durable aluminum alloy housing, and long-lasting 10.4Ah capacity, it ensures reliable performance during continuous operation in harsh environments.

Electrical Specifications

Attribute Parameter
Product Number 01DQ0023-47
Cell Model 18650-2600mAh-3.6V
Battery Configuration 18650-3S4P-10.4Ah-10.8V
Nominal Voltage 10.8V
Nominal Capacity 10.4Ah
Rated Energy 112.32Wh
Charging Voltage 12.6V
Discharge Cut-off Voltage 9.0V
Standard Charging Current ≤5A
Standard Discharge Current ≤5A
Max Continuous Discharge Current 5A
Internal Resistance ≤150mΩ

Mechanical & Environmental

Attribute Parameter
Charging Temperature 0 ~ 45℃
Discharge Temperature -20 ~ 60℃
Storage Temperature -20 ~ 35℃
Dimensions 150 × 143 × 24.5 mm
Weight 800g
Battery Case Aluminum Alloy Housing
Communication Protocol SMBUS
Protection System Short circuit / overcharge / overdischarge / overtemperature / overcurrent / ESD protection

Application Background

This battery solution is designed for industrial remote controllers and portable control devices, widely used in engineering machinery and industrial remote operation scenarios.

The equipment requires long continuous operation and stable power supply and communication under complex industrial environments, placing high demands on endurance, safety, and structural reliability.

Project Challenges

Industrial remote control devices require continuous operation for over 8 hours
Complex working conditions may cause vibration, temperature rise, and electromagnetic interference
Frequent charging and discharging demand high cycle stability
Portable equipment requires strict control of weight and structural strength

Customized Battery Solution

3S4P high-capacity structure provides 10.4Ah long-lasting power support
Aluminum alloy housing enhances structural strength and impact resistance
SMBUS communication with precise temperature control ensures stable data transmission and safety management
Integrated multiple protections including overcharge, overdischarge, overcurrent, overtemperature, and ESD protection

Application Results

Supports long-term stable operation of industrial remote control equipment
Improves power supply and communication stability by approximately 20%+ in harsh environments
Enhances equipment impact resistance and operational reliability
Stable cycle performance helps reduce maintenance and replacement frequency

We support flexible customization based on your project requirements, including:

  • Voltage range: 3.2V – 72V
  • Capacity range: 100mAh – 100Ah
  • Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
  • Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
  • BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
