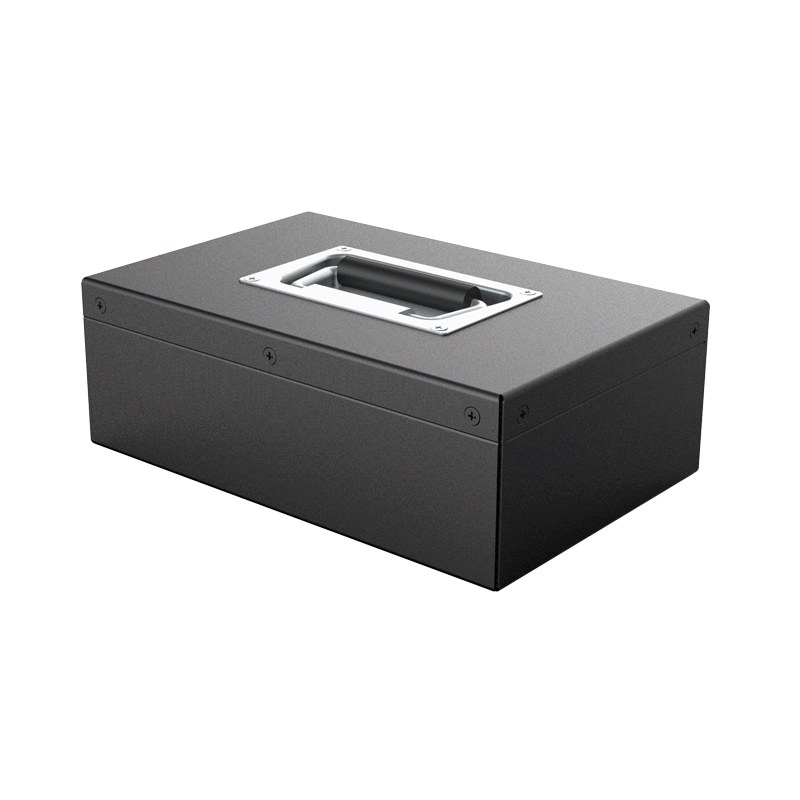

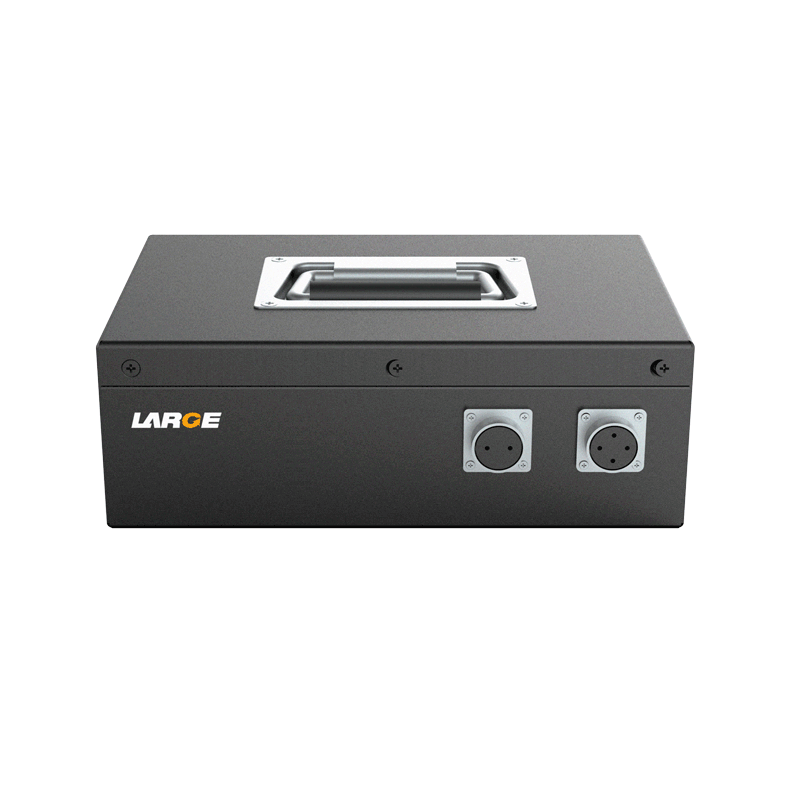

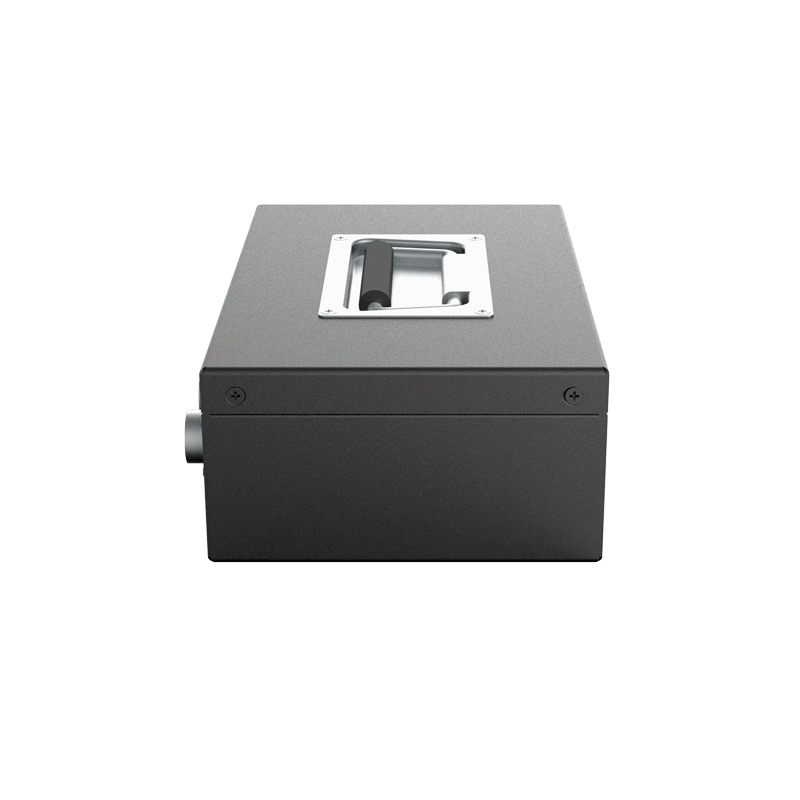

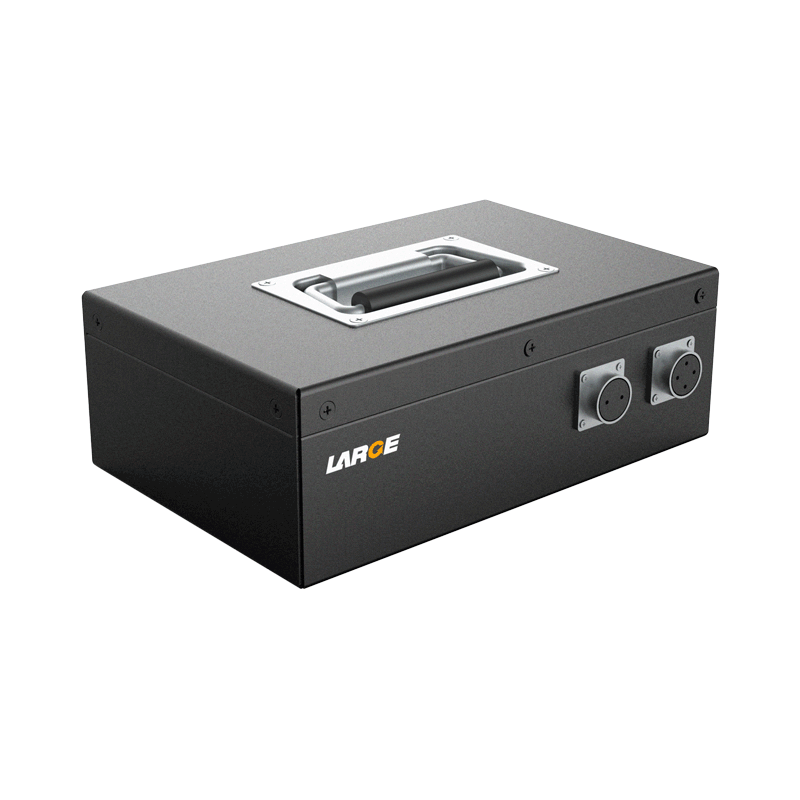

18650 25.2V 40Ah Power Lithium Battery for Mobile Robot
Product Number:
04EQ222-01
Nominal voltage:
25.2V
Nominal capacity:
40Ah
Battery Configuration:
18650-7S12P
Dimension:
260 × 170 × 90mm (Max)
Application:
robots and AGV equipment
High Current Output, Shockproof Metal Case, Multiple Protection Functions
Product Overview
This battery is designed for robots and AGV equipment, supporting continuous operation in high-load and complex industrial environments. With high-current output and stable protection performance, it ensures reliable power supply and long service life for demanding applications.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 04EQ222-01 |
| Cell Model | 18650/3.6V/3.35Ah |
| Battery Configuration | 18650-7S12P |
| Nominal Voltage | 25.2V |
| Nominal Capacity | 40Ah |
| Rated Energy | 1008Wh |
| Charging Voltage | 29.4V |
| Discharge Cut-off Voltage | 19.6V |
| Standard Charging Current | ≤10A |
| Standard Discharge Current | 10A |
| Max Continuous Discharge Current | 35A |
| Internal Resistance | ≤200mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 50℃ |
| Storage Temperature | -20 ~ 40℃ |
| Dimensions | 260 × 170 × 90mm (Max) |
| Weight | 6kg |
| Battery Case | Cold Rolled Metal Plate |
| Protection System | Short Circuit Protection, Overcharge Protection, Over Discharge Protection, Overcurrent Protection, Temperature Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
