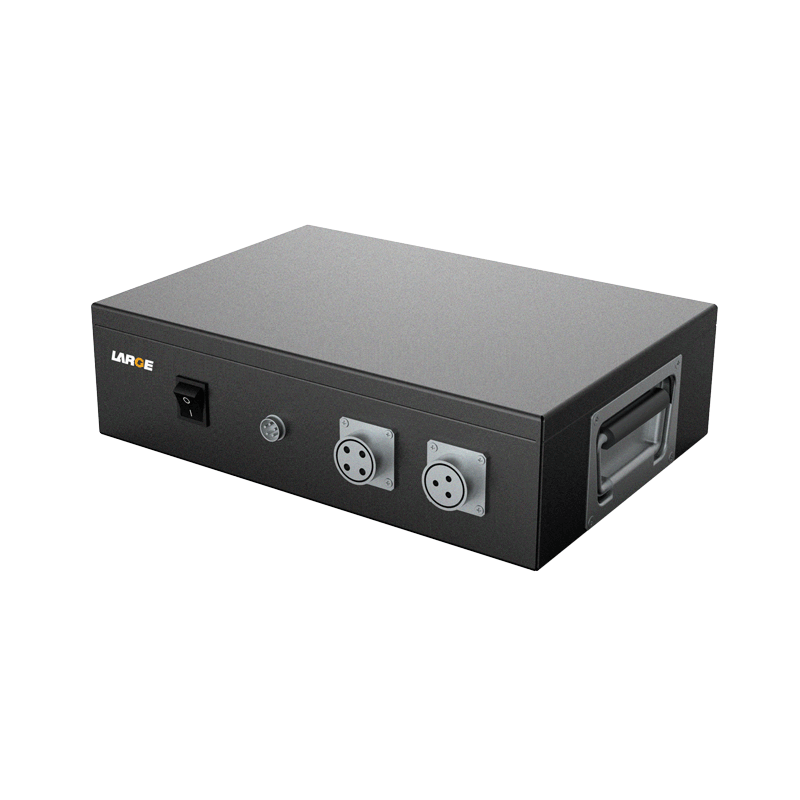

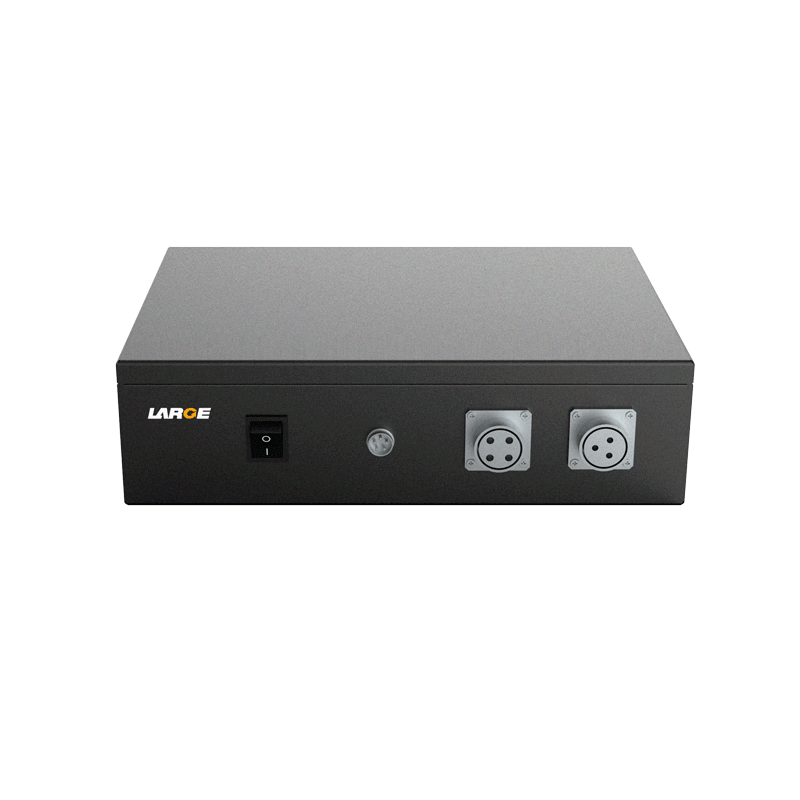

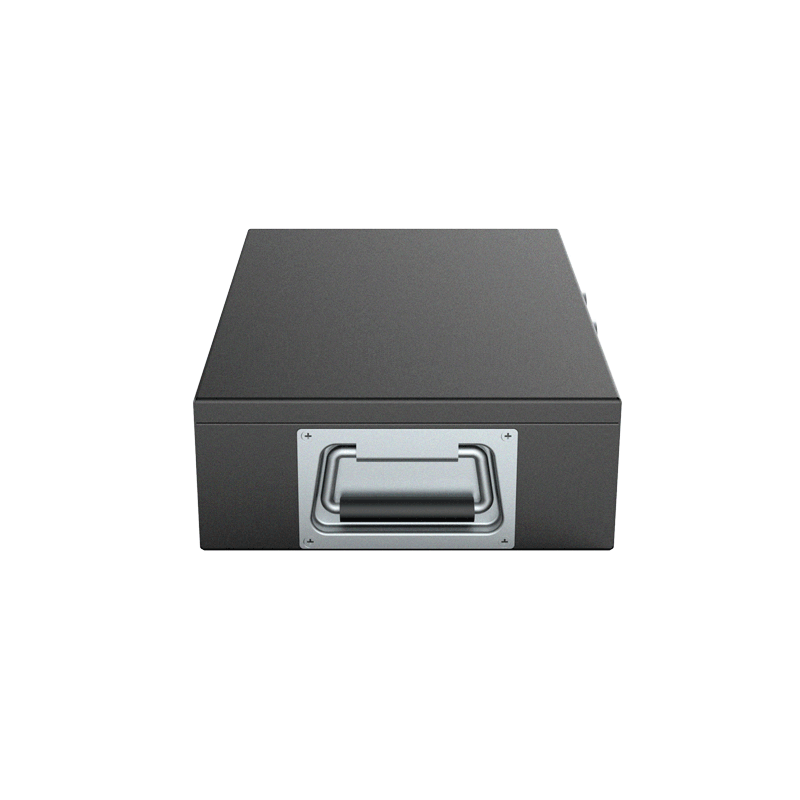

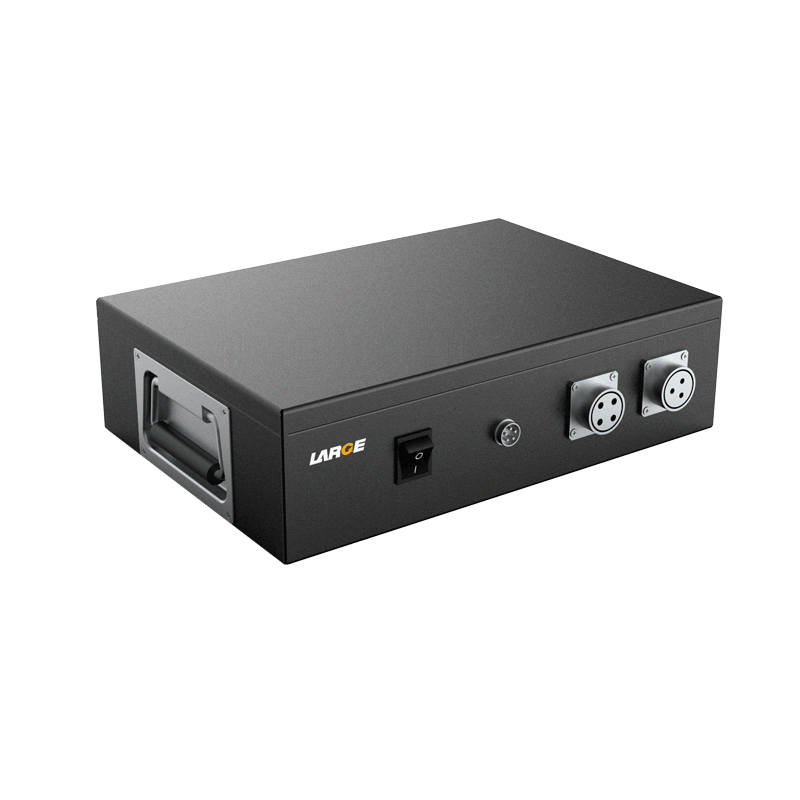

26650 25.6V 49Ah LiFePO4 Power Battery for Telegraph Transmitter

26650 25.6V 49Ah LiFePO4 Power Battery for Telegraph Transmitter
26650 25.6V 49Ah LiFePO4 Power Battery for Telegraph Transmitter
26650 25.6V 49Ah LiFePO4 Power Battery for Telegraph Transmitter
26650 25.6V 49Ah LiFePO4 Power Battery for Telegraph Transmitter

Product Detail

Product number: 04EQ195-01

Cell model:26650/3.5V/3.5Ah

Battery specification: 26650/8S14P/25.6V/49Ah

Nominal voltage:25.6V

Nominal capacity:49Ah

Charging voltage: 29.2V

Charging current: ≤10A

Discharging current: 10A

Instant discharging current: 30A

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 15Kg

Product dimension: 360×250×100mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~40 ℃

Temperature protection: yes

Battery case: metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, etc.

Application field: vending machine, telegraph transmitter


Product features

Dustproof and shockproof: make outer housing by cold rolled sheet, and fill in the inside by shockproof structure, which meets the requirements of dustproof and shockproof.

Waterproof connector: adopt waterproof connector, which is safe and reliable.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

Ultra-low temperature working: it can discharge at -20℃.


*
*
*
