Custom Lithium Ion Battery Pack

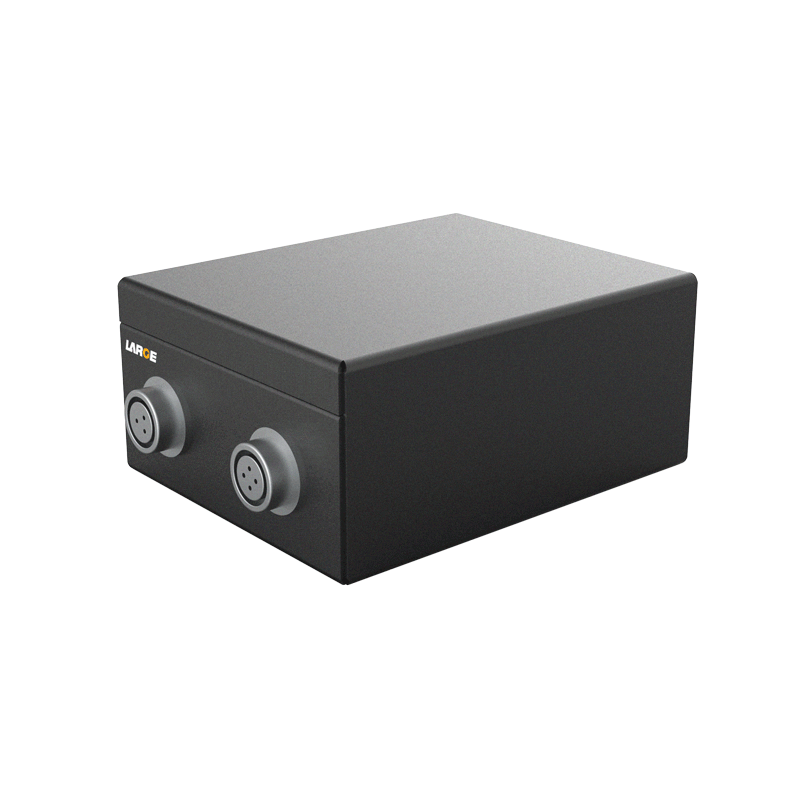

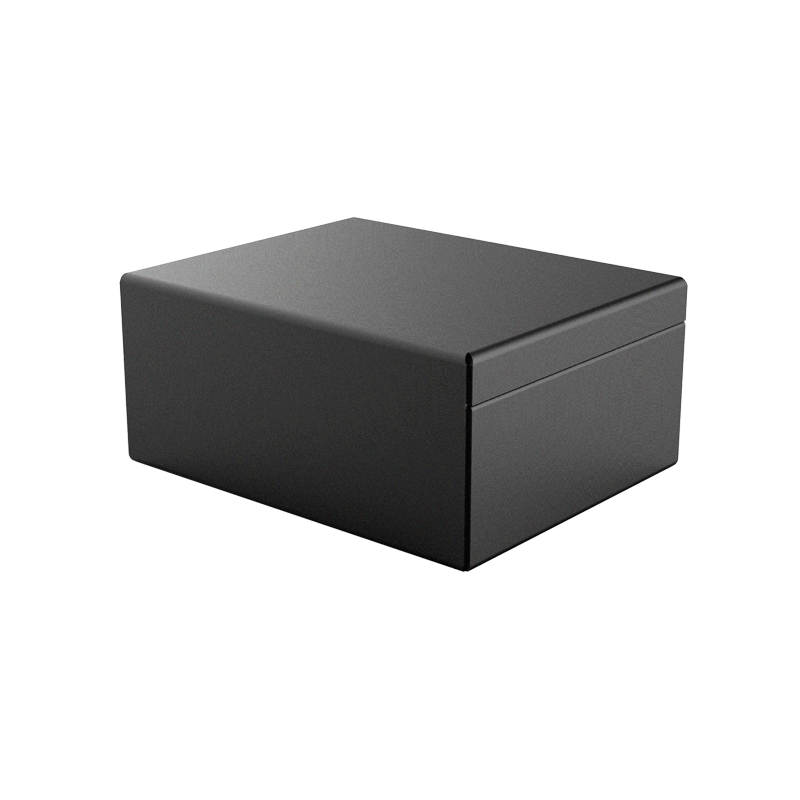

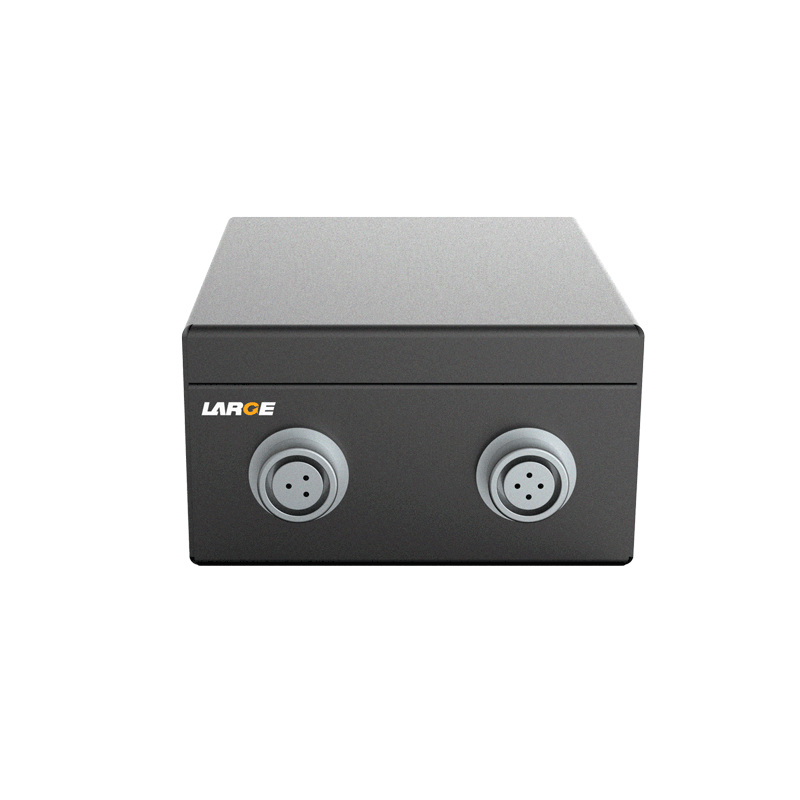

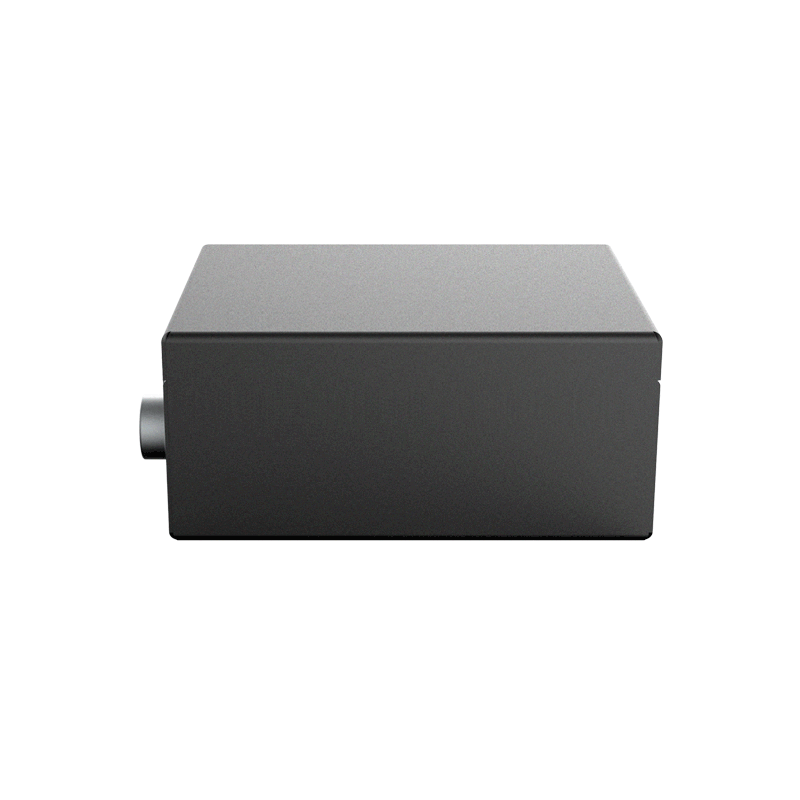

18650 25.2V 2.9Ah Power Lithium Battery Panasonic Battery for Biomimetic Rehabiliation Robot

  • Model number:04EQ224-01

  • Nominal voltage:25.2V

  • Nominal capacity:29000mAh

  • Battery cell:18650/3.6V/2.9Ah

  • Dimension:100×80×45(Max)

  • Application:robot, AGV

Product Detail

Product number: 04EQ224-01

Cell model:18650/3.6V/2.9Ah Panasonic

Battery specification: 18650/7S1P/25.2V/2.9Ah

Nominal voltage:25.2V

Nominal capacity:2.9Ah

Charging voltage: 29.4V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 16A

End-off voltage: 19.6V

Internal resistance: ≤200mΩ

Battery weight: 650g

Product dimension: 100×80×45(Max)

Charging temperature:0~45℃

Discharging temperature: -20~50 ℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: robot, AGV


Product features

Shockproof: fill in the inside cold rolling metal plate housing by shockproof structure design, which meets the requirements of good security and nice reliability.

Large current: large current output and maximum 3C output.

Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
