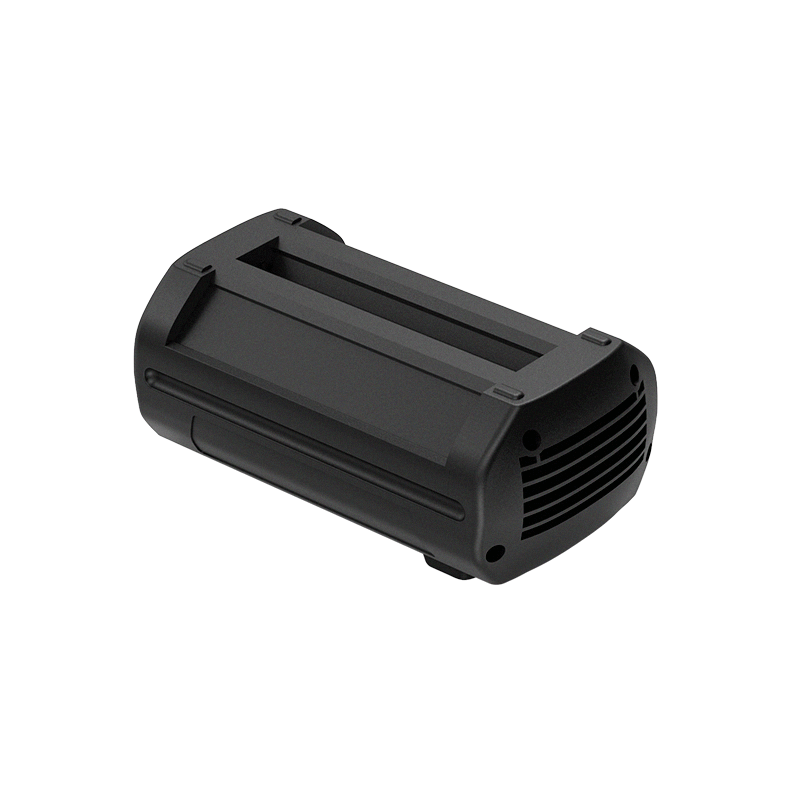

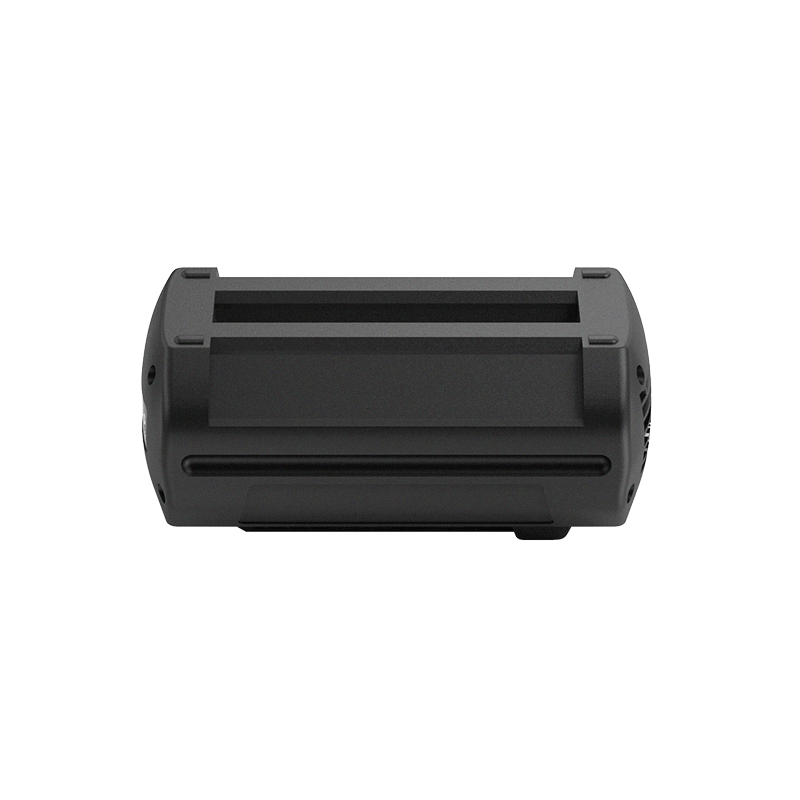

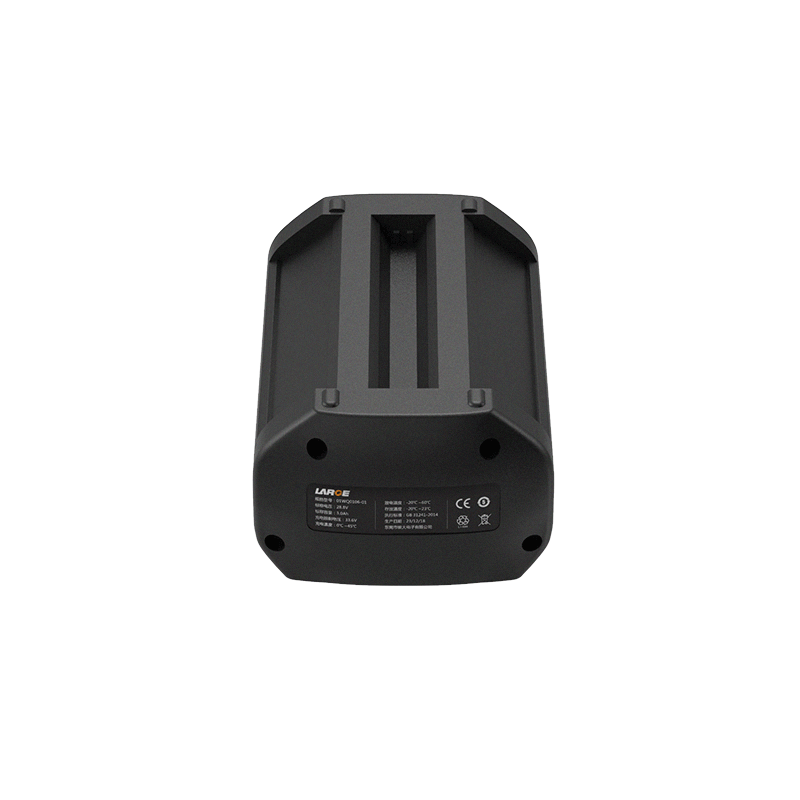

36.0V 5.0Ah Electro-hydraulic Lifting Equipment 18650 Lithium-ion Battery Pack

Product number: 08DQ0063-03

Battery model: INR18650-25R8/2500mAh/3.6V

Battery specification: 18650-10S2P/5000mAh/36.0V

Nominal voltage: 36.0V

Nominal capacity: 3.0Ah

Charging voltage: 42.0V

Charging current: ≤4.8A

Discharge current: 40.0A

Instantaneous discharge current: 45.0A

Discharge cut-off voltage: 25.0V

Finished internal resistance: ≤250mΩ

Battery weight: 2.0Kg

Product size: 82.23*109.75*195.23mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: ABS+PC

Communication protocol: RS485

Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: electro-hydraulic lifting equipment, medical equipment
