Custom Lithium Ion Battery Pack

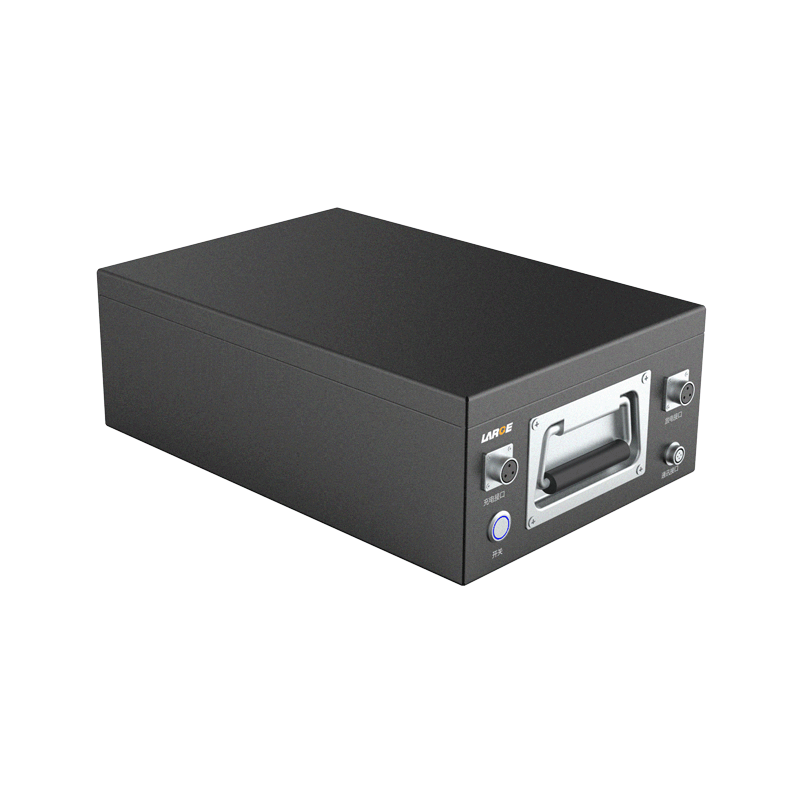

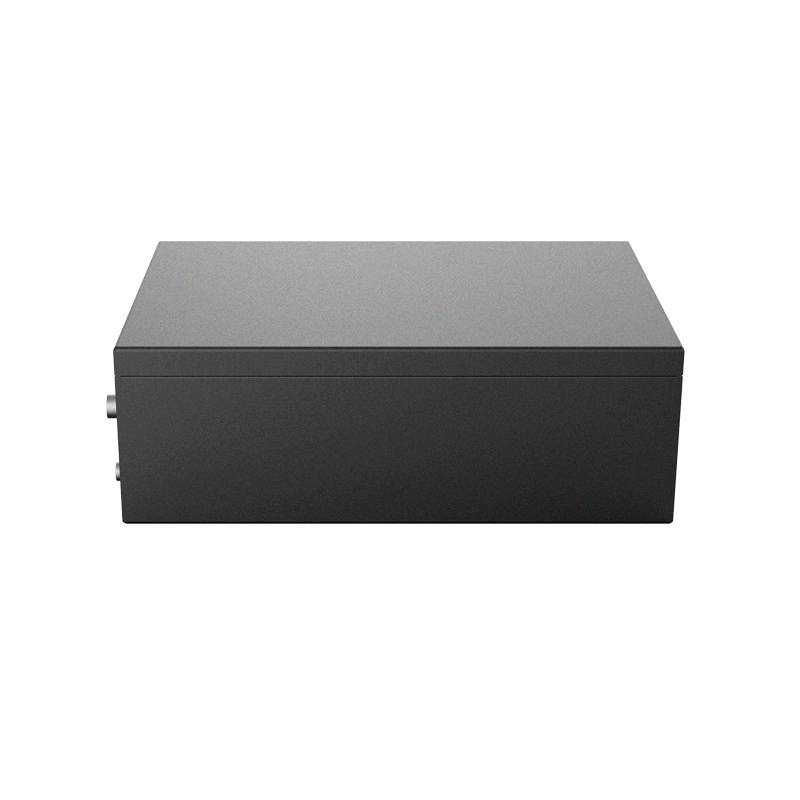

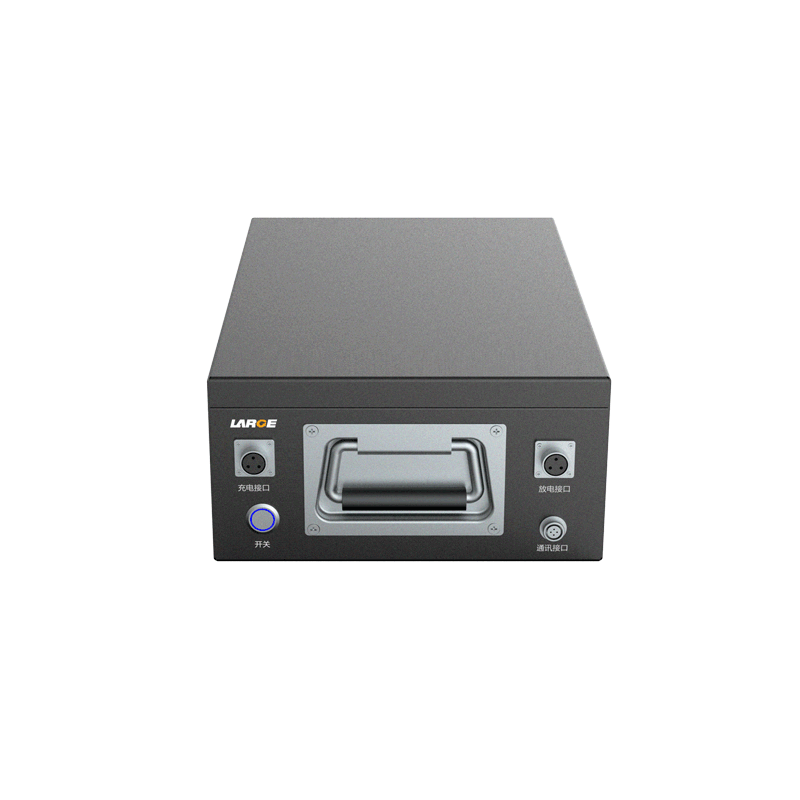

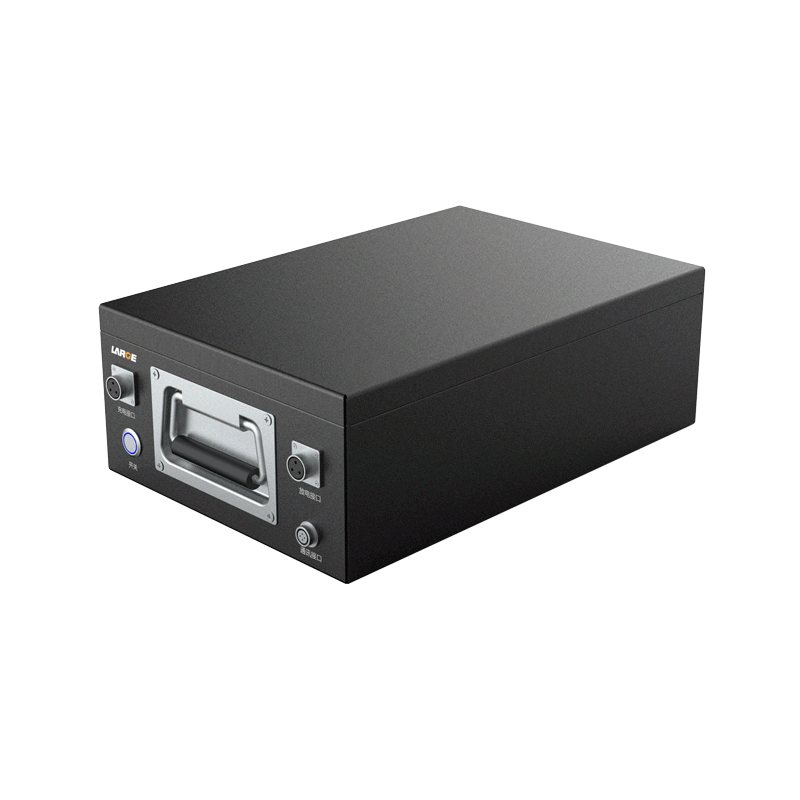

26650 48V 40Ah LiFePO4 Power Battery for Robot

  • Model number:04EQ202-01

  • Nominal voltage:48.0V

  • Nominal capacity:40000mAh

  • Battery cell:26650/3.2V/3.3Ah

  • Dimension:420×265×140mm(Max)

  • Application:robot

Product Detail

Product number: 04EQ202-01

Cell model:26650/3.2V/3.3Ah

Battery specification: 26650/15S12P/48V/40Ah

Nominal voltage:48V

Nominal capacity:40Ah

Charging voltage: 54V

Charging current: ≤10A

Discharging current: 50A

Instant discharging current: 100A

End-off voltage: 37.75V

Internal resistance: ≤200mΩ

Battery weight: 35Kg

Product dimension: 420×265×140mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: robot


Product features

Shockproof: fill in the inside cold rolling metal plate housing by shockproof structure design, which meets the requirements of good security and nice reliability.

Salt spray proofing: spray powder on the surface to avoid salt spray mold and be suitable to marine working environment.

Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
