Custom Lithium ion Battery Pack

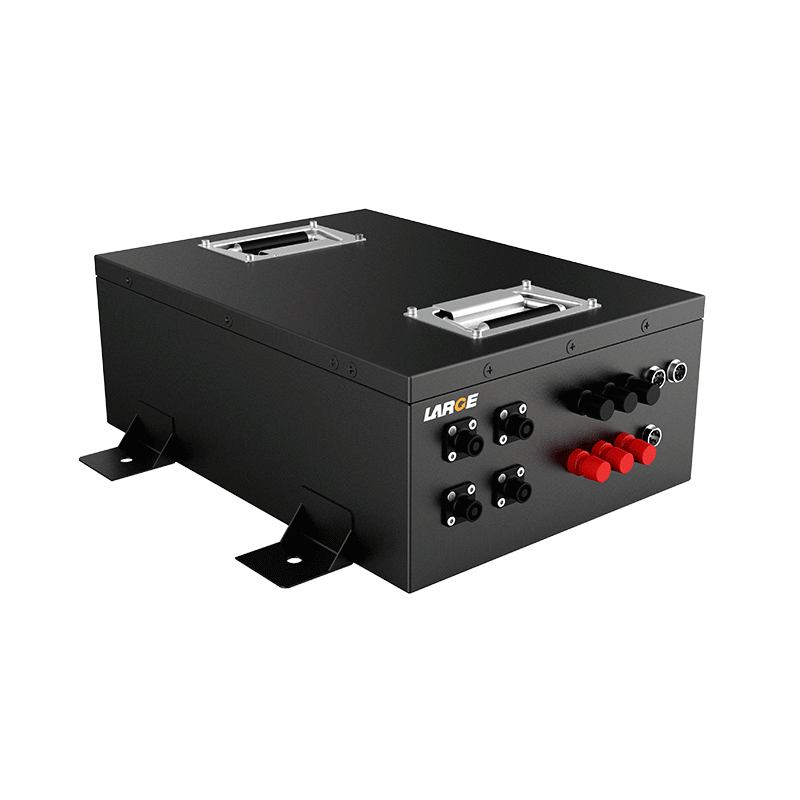

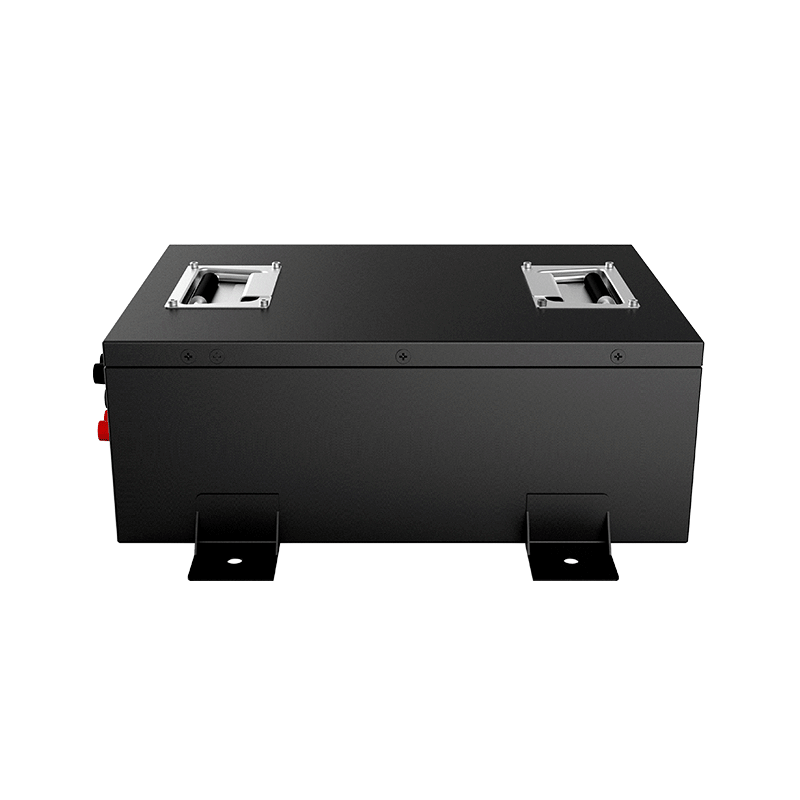

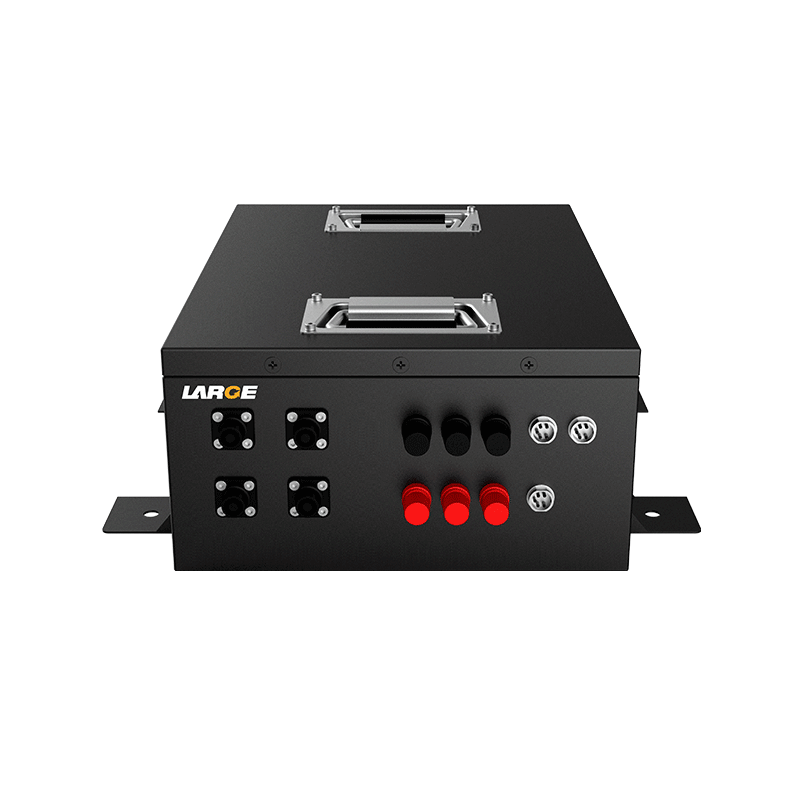

48V 50Ah LiFePO4 Battery for AGV with Can Communication

  • Model number:37DZ031-01

  • Nominal voltage:48.0V

  • Nominal capacity:50000mAh

  • Battery cell:0150651500/3.2V/10Ah

  • Dimension:420*300*170mm(Max)

  • Application: AGV

Product Detail

Product number: 37DZ031-01

Cell model:0150651500/3.2V/10Ah

Battery specification: 15S5P/48V/50Ah

Nominal voltage:48V

Nominal capacity:50Ah

Charging voltage: 54.75V

Charging current: ≤15A

Discharging current: 100A

Instant discharging current: 150A

End-off voltage: 30V

Internal resistance: ≤100mΩ

Battery weight: 30Kg

Product dimension: 420*300*170mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Temperature protection: 70℃±5℃

Battery case: cold rolling and metal plate

Communication management: CAN

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, over temperature protection, equilibrium, etc.

Application field: AGV


Product features

1. Large current output

2. The battery has temperature protection.

3. The battery has capacity detection socket.

4. CAN communication management: SOC management, fault warning.

5. The battery pack has good security and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
