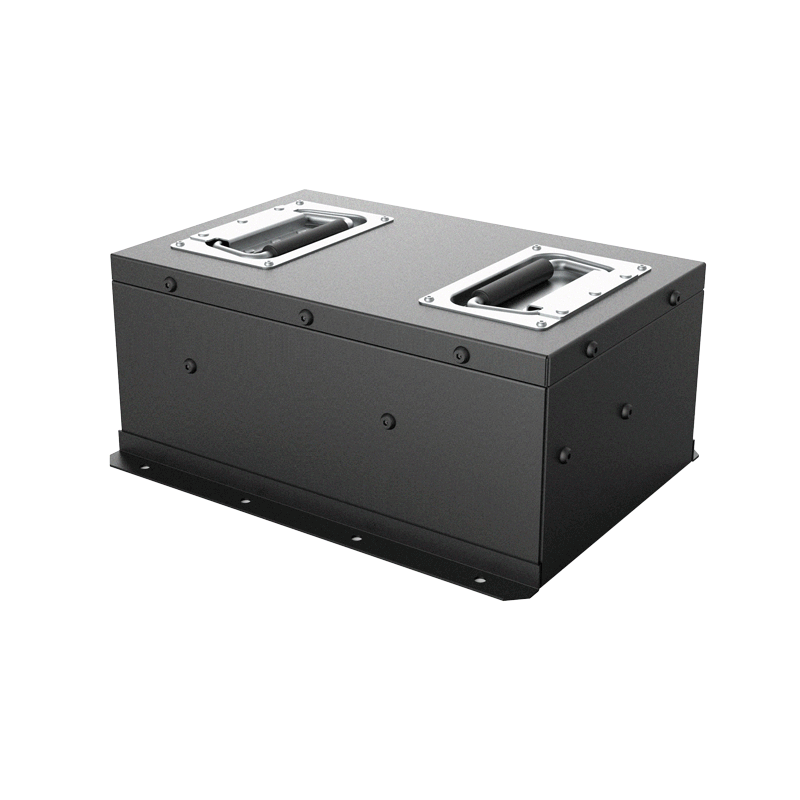

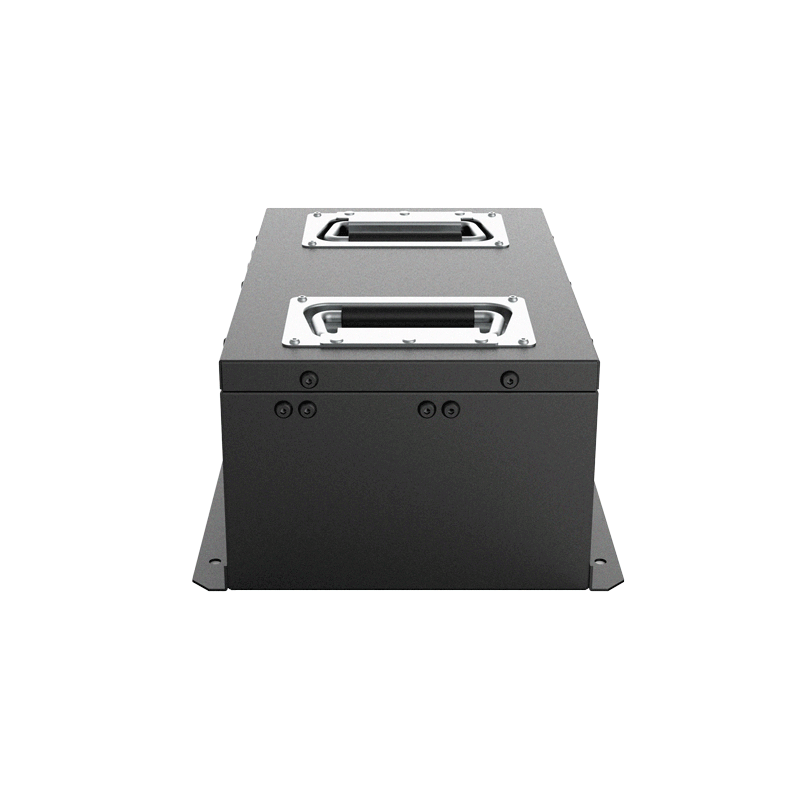

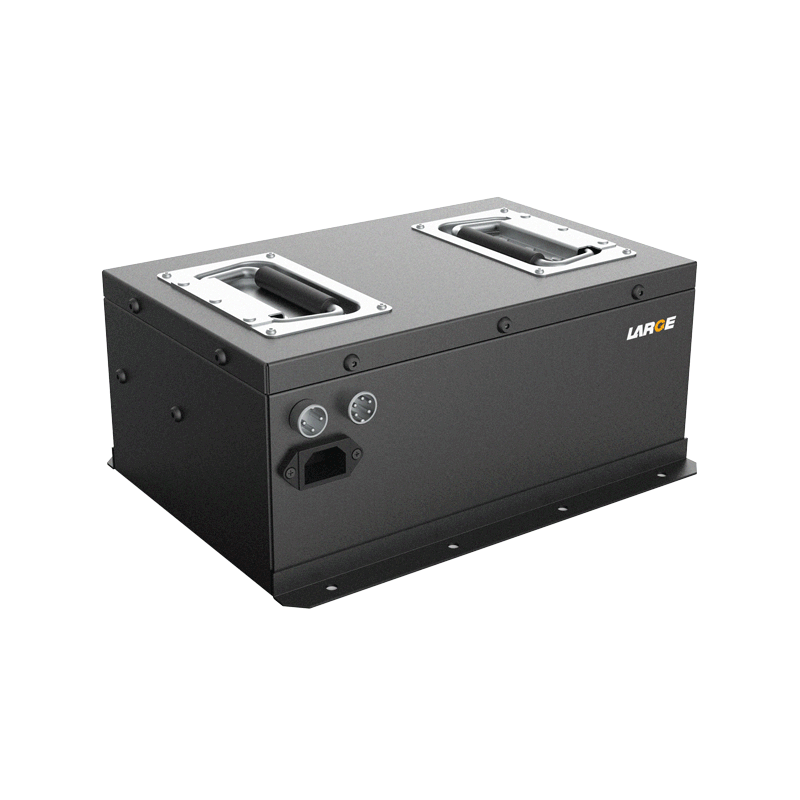

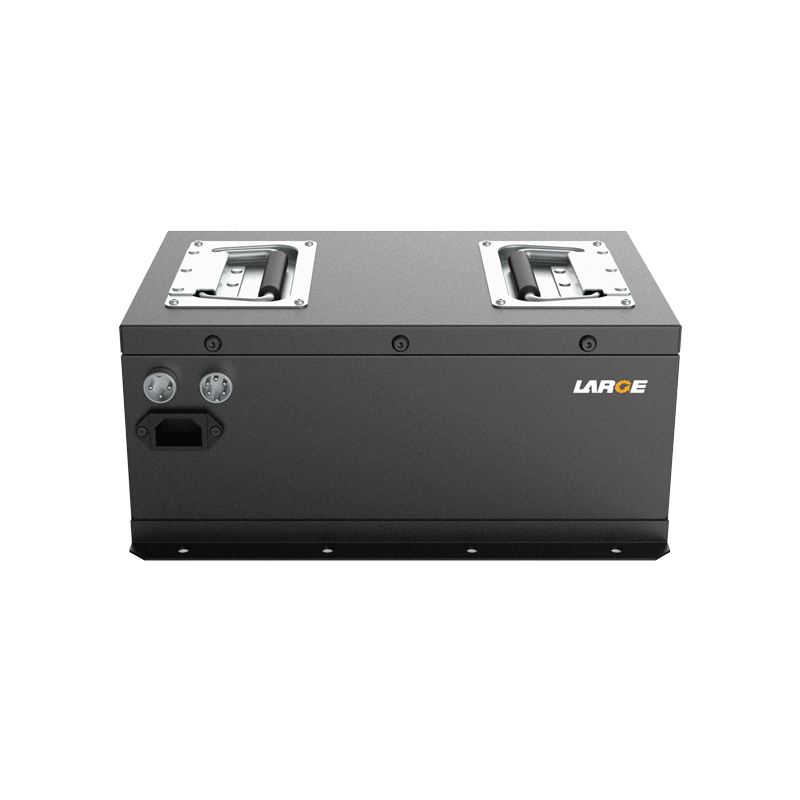

25.6V 25.6Ah LiFePO4 Storage Battery PLB Battery for Backup Power of Medical Device

25.6V 25.6Ah LiFePO4 Storage Battery PLB Battery for Backup Power of Medical Device
25.6V 25.6Ah LiFePO4 Storage Battery PLB Battery for Backup Power of Medical Device
25.6V 25.6Ah LiFePO4 Storage Battery PLB Battery for Backup Power of Medical Device
25.6V 25.6Ah LiFePO4 Storage Battery PLB Battery for Backup Power of Medical Device

Product Detail

Product number: 40DZ002-02

Cell model:26650/3.2V/3.2Ah

Battery specification: 26650-8S8P/25.6V/25.6Ah

Nominal voltage:25.6V

Nominal capacity:25.6Ah

Charging voltage: 29.2V

Charging current: ≤5A

Discharging current: 15A

Instant discharging current: 60A

End-off voltage: 16V

Internal resistance: ≤150mΩ

Battery weight: 8Kg

Product dimension: 300*180*150 mm (Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~45 ℃

Temperature protection: 70℃±5℃

Battery case: metal plate housing

Communication management: 485 MOSBUS

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: medical device, backup power


Product features

Small self-discharge.

The battery has temperature protection.

The battery pack has good security and long cycle life.

It has 485 communication.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
