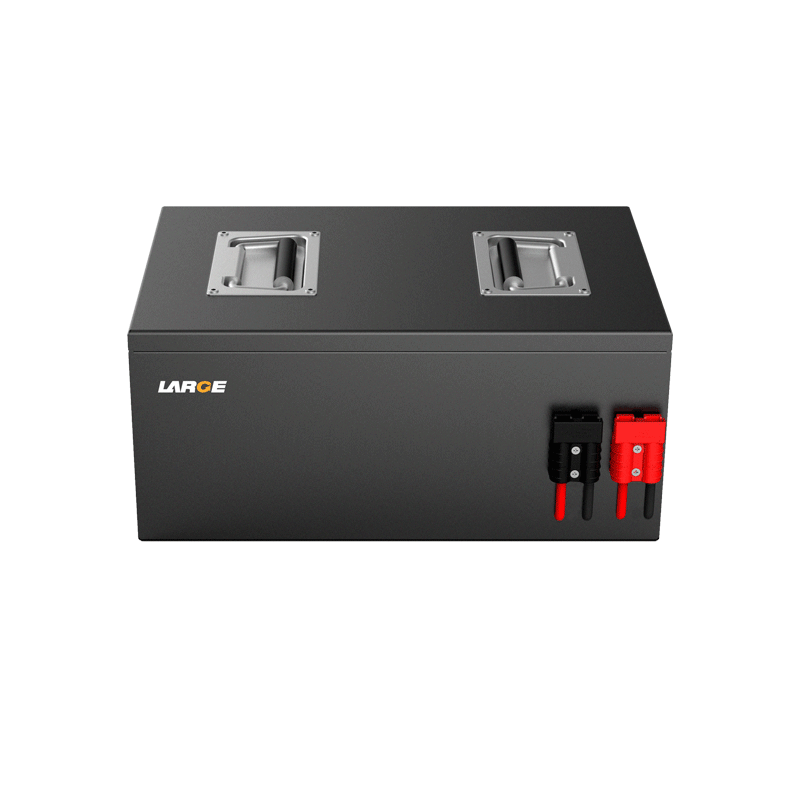

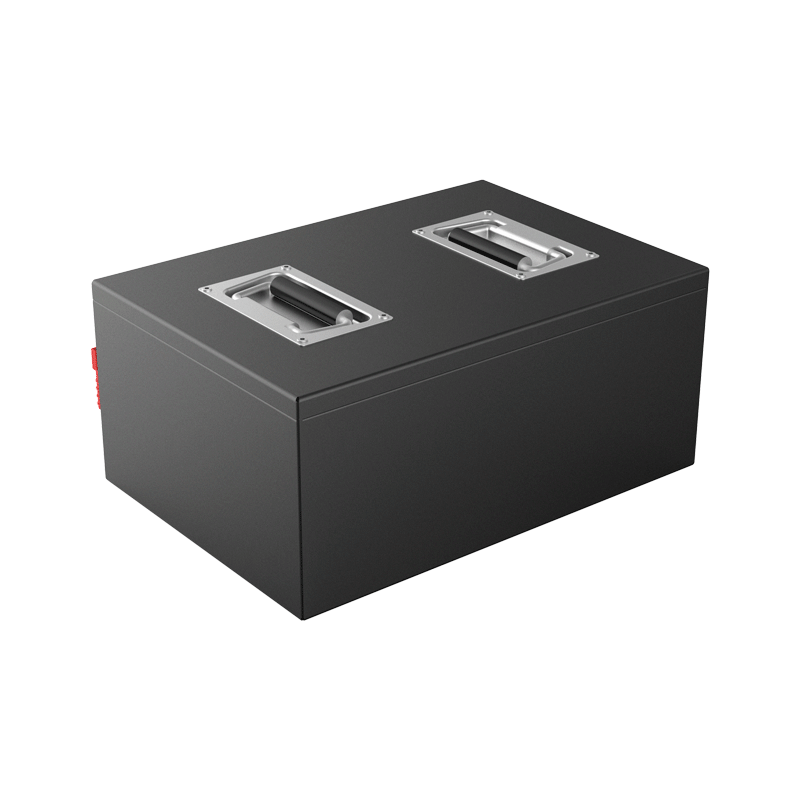

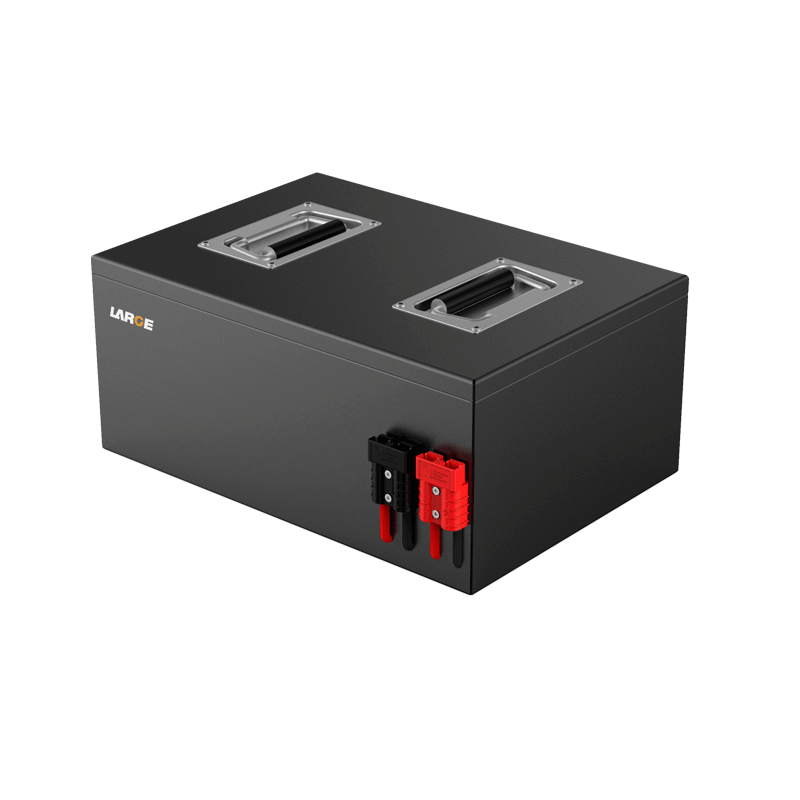

76.8V 30Ah Lithium Ion Battery Pack
Product Number:
04EQ178-01
Nominal voltage:
76.8V
Nominal capacity:
30Ah
Battery Configuration:
26650-24S9P
Dimension:
375×260×165 mm
Application:
AGV
Shockproof metal case, Temperature protection system, Data communication management
Product Overview
This battery is designed for AGV (Automated Guided Vehicle) systems used in warehouse logistics, smart manufacturing, and automated material handling scenarios. It supports continuous operation and high-load driving conditions in complex environments, delivering stable output and enhanced durability for long-term industrial use.
Electrical Specifications
| Property | Parameter |
|---|---|
| Product Number | 04EQ178-01 |
| Cell Model | 26650/3.2V/3.5Ah |
| Battery Configuration | 26650-24S9P |
| Nominal Voltage | 76.8V |
| Nominal Capacity | 30Ah |
| Rated Energy | 2304Wh |
| Charging Voltage | 87.6V |
| Discharge Cut-off Voltage | 60V |
| Standard Charging Current | ≤10A |
| Standard Discharge Current | 10A |
| Max Continuous discharge current | 30A |
| Internal Resistance | ≤200mΩ |
Mechanical & Environmental
| Property | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～50℃ |
| Storage temperature | -20～40℃ |
| Dimensions | 375×260×165 mm (Max) |
| Weight | 25Kg |
| Output Type | Power output |
| Battery Case | Cold-rolled metal sheet (sheet metal housing) |
| Communication Protocol | Software management chip (data communication control) |
| Protection Rating | IP rating not specified |
| Protection System | Short circuit, overcharge, over-discharge, overcurrent, temperature protection |
Application Background
This battery solution is designed for AGV (Automated Guided Vehicle) applications, widely used in warehouse logistics, smart manufacturing, and automated material handling.
AGVs require stable power output during long-duration operation and complex routing, demanding high-voltage stability, continuous discharge capability, and strong environmental adaptability.
Project Challenges
AGV requires continuous operation of 8–12 hours
Drive system peak load up to 30A, causing potential voltage fluctuation
Frequent charge-discharge cycles require high cycle life and consistency
Industrial environments involve vibration, salt spray, and temperature variation
Customized Battery Solution
76.8V high-voltage platform for stable AGV driving power output
Shock-resistant metal structure with reinforced cold-rolled steel housing
Multiple safety protections: overcharge, overdischarge, overcurrent, overtemperature, and short circuit
Communication and thermal management system with real-time monitoring and temperature protection
Application Results
Supports AGV continuous operation for 8–12 hours
Improved high-load stability, reducing power interruption risk
Enhanced reliability in complex industrial environments
Extended cycle life for long-term industrial usage
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
