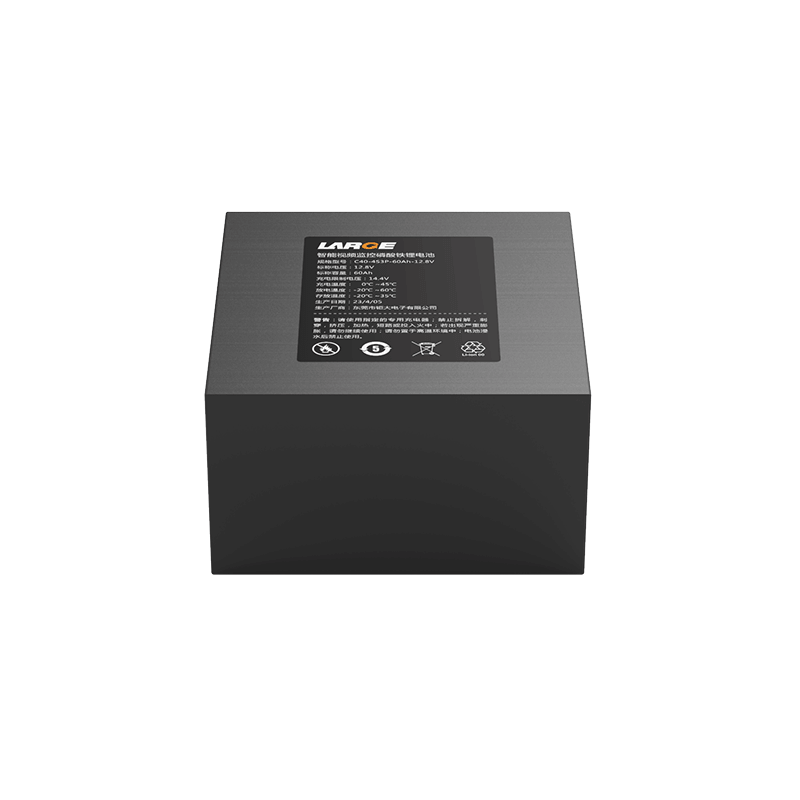

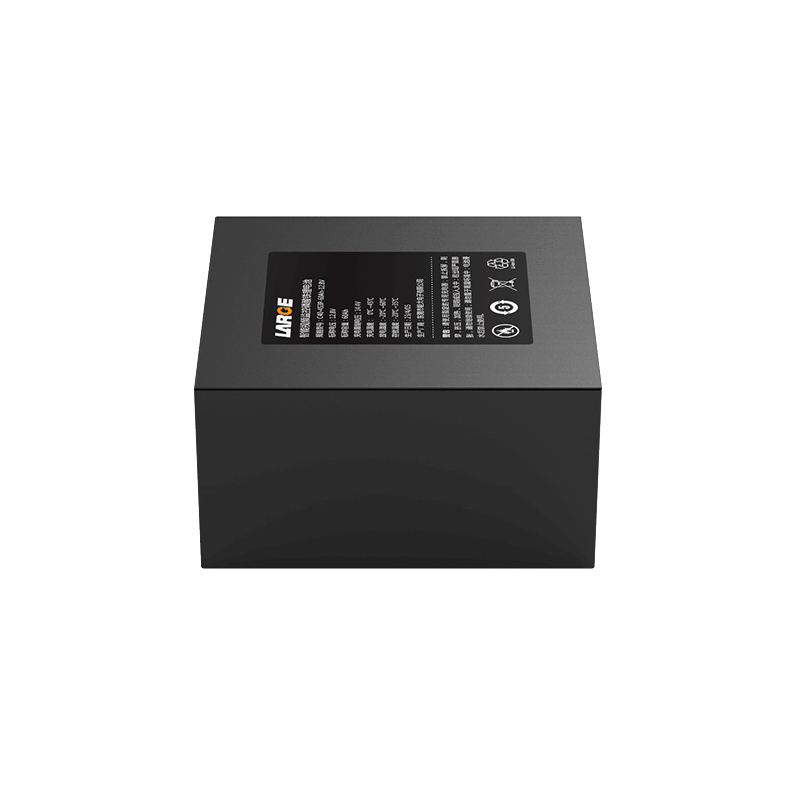

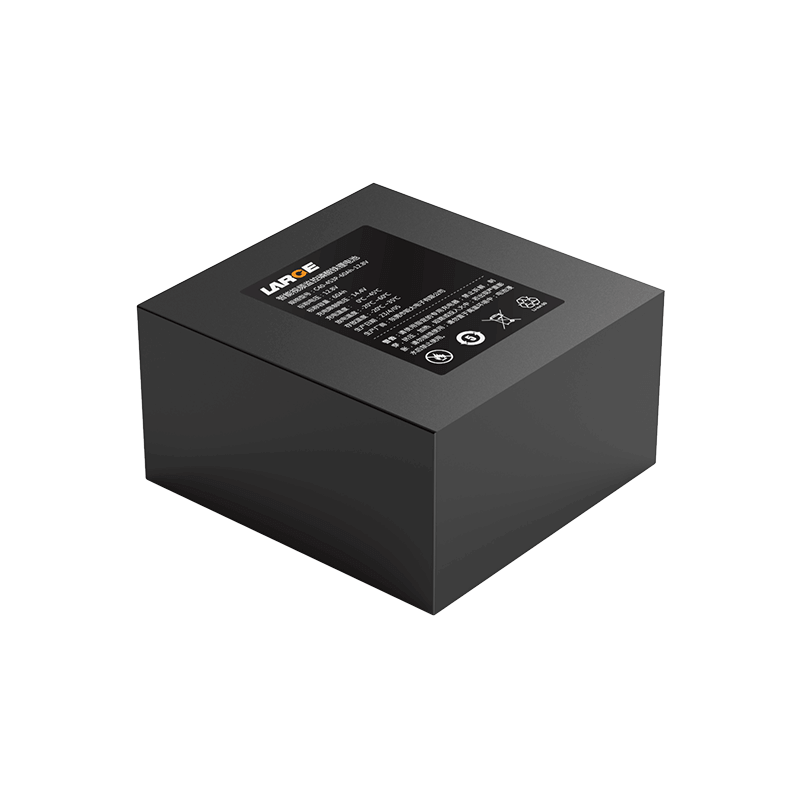

32700 25.6V 12Ah LiFePO4 Battery Pack

Product number: 01WQ0109-01

Cell model: 32700-6000mAh-3.2V

Battery specifications: 32700-8S2P-25.6V-12Ah

Product size: (L) 152mm × (W) 143mm × (H) 78mm

Nominal voltage: 25.6V

Nominal capacity: 12Ah

Charging voltage: 29.2V

Charging current: 5A

Discharge current: 12A

Discharge cut-off voltage: 20V

Finished internal resistance: ≤180mΩ

Battery weight: 2.7Kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: PVC

Output mode: national standard UL wire

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Built-in battery
