Custom Lithium Ion Battery Pack

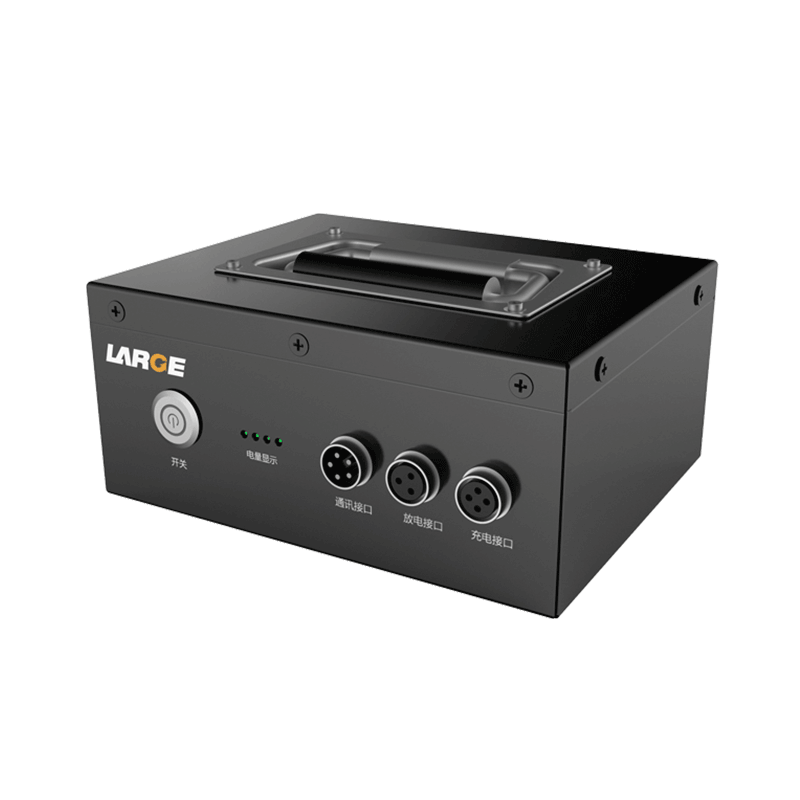

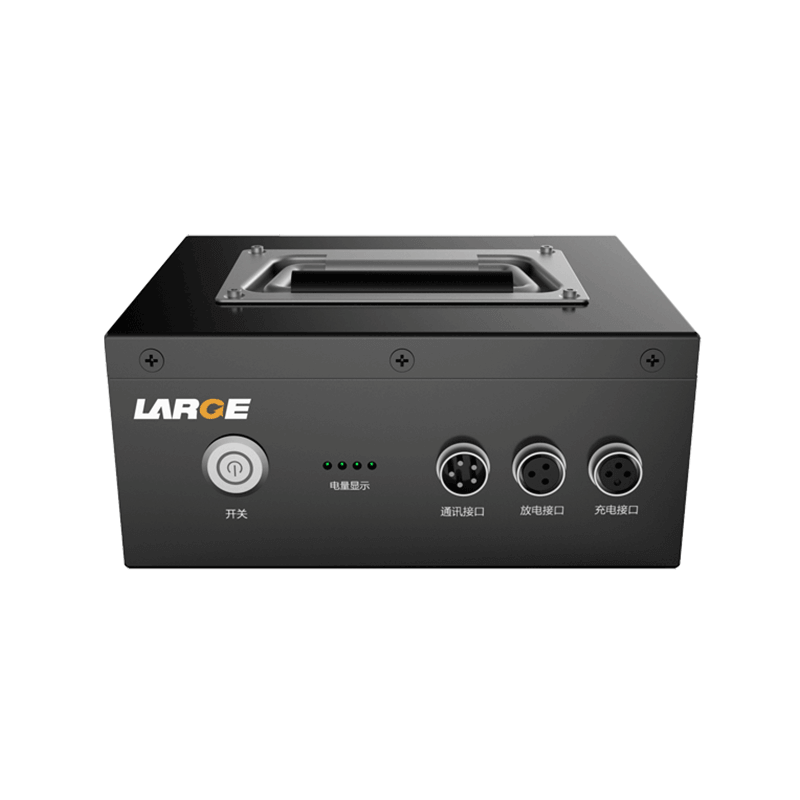

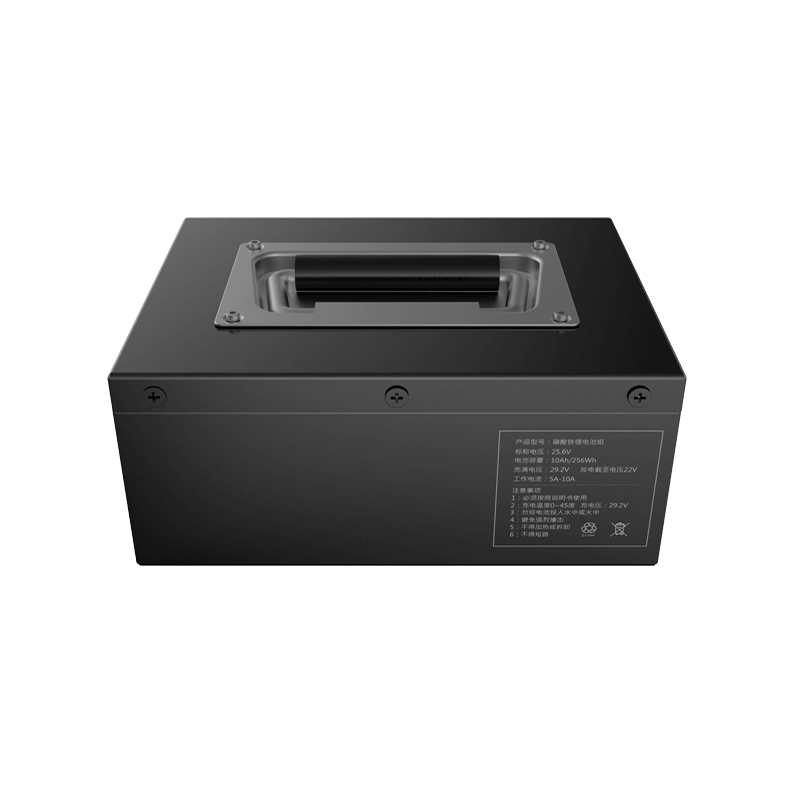

26650 25.6V 10Ah LiFePO4 Battery Robotic Controlling Lithium Ion Battery with RS485 Communication

  • Model number:04EQ029-04

  • Nominal voltage:25.6V

  • Nominal capacity:10000mAh

  • Battery cell:26650/3.2V/3.5Ah

  • Dimension:190×150×85(Max)

  • Application:robot, AGV, RGV

Product Detail

Battery number.: 04EQ029-04

Cell model:26650/3.2V/3.5Ah

Battery specification: 26650/8S3P/25.6V/10Ah

Nominal voltage:25.6V

Nominal capacity:10Ah

Charging voltage: 29.2V

Charging current: ≤10A

Instant discharging current: 20A

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 4.5kg

Battery dimension:190×150×85(Max)

Charging temperature:0~45℃

Discharging temperature:-20~60 ℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: robot, AGV, RGV


Product features:

1. Capacity display: show the battery capacity by LED so as to know battery status directly.

2.charge the battery pack at -30℃.

3. Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4. Data communication management: adopt advanced IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
