Custom Lithium ion Battery Pack

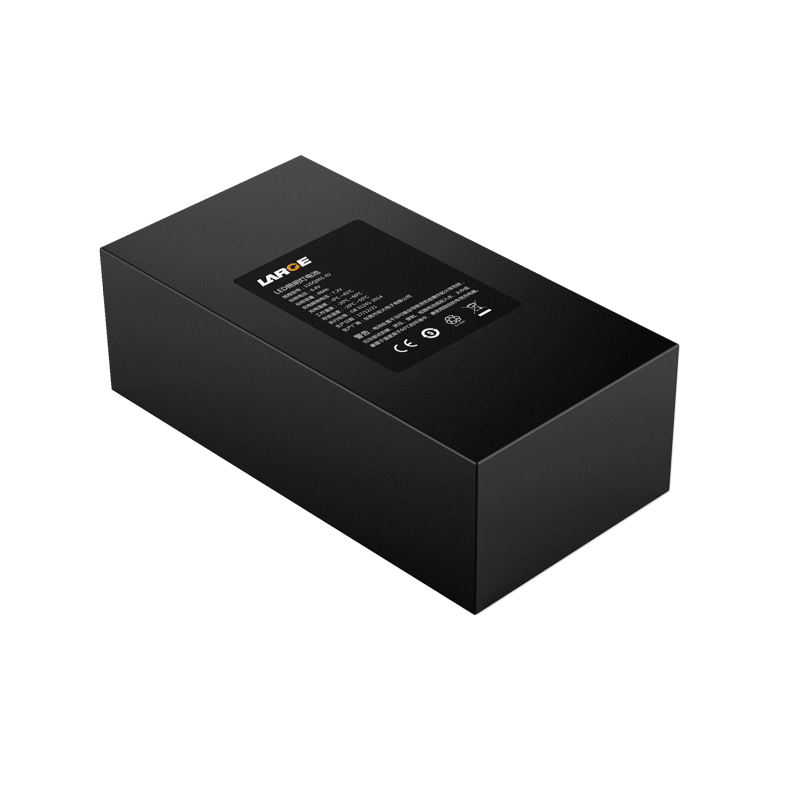

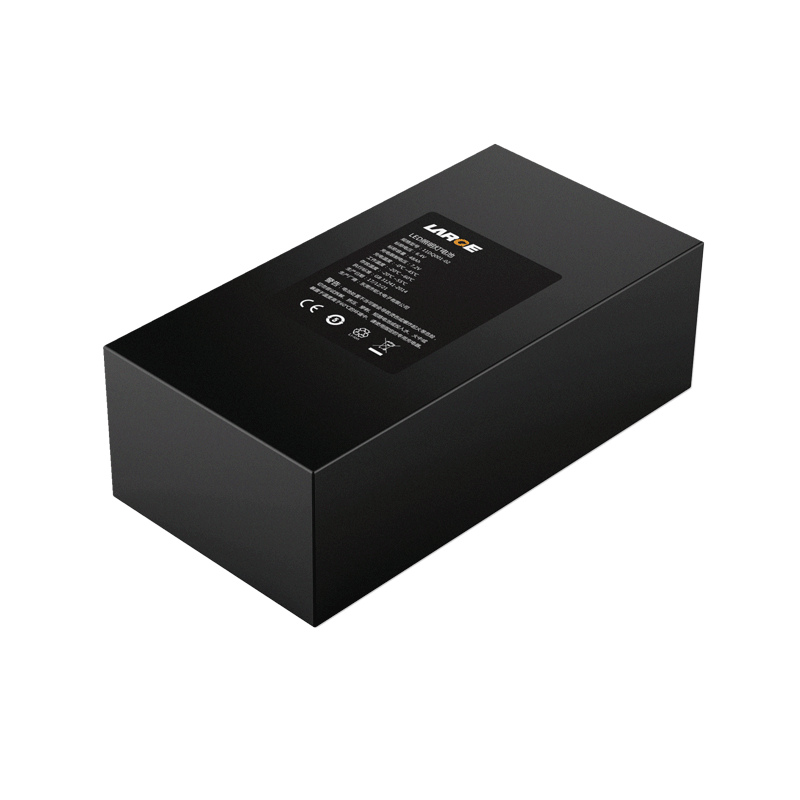

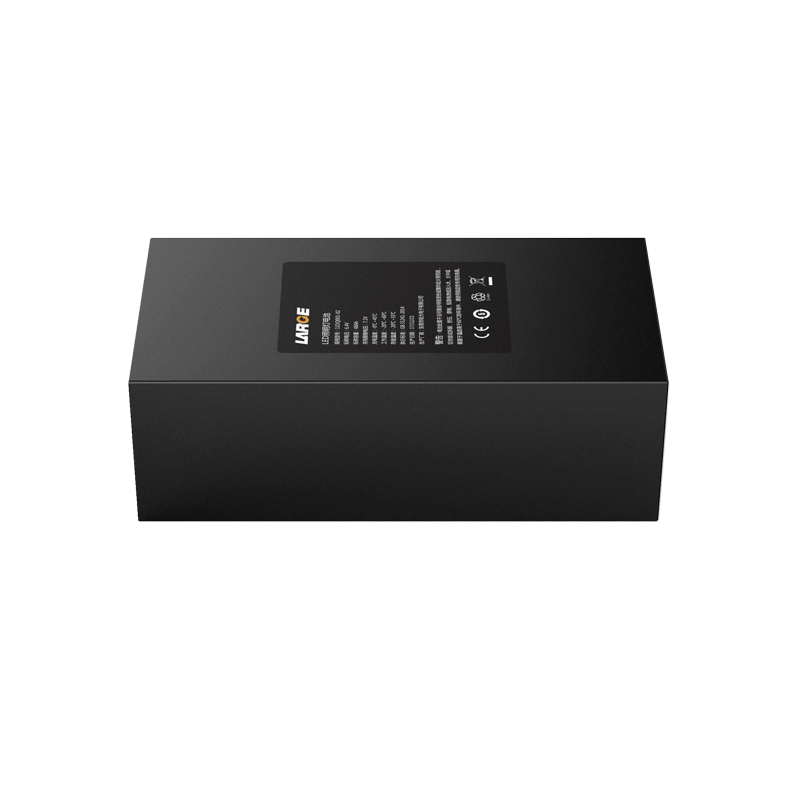

26650 6.4V 48Ah Lifepo4 Battery for LED

  • Model number:11DQ001-02

  • Nominal voltage:6.4V

  • Nominal capacity:48000mAh

  • Battery cell:26650/3.2V/3000mAh

  • Dimension:230*120*75mm(Max)

  • Application:LED light, testing equipment

Product Detail

Product number: 11DQ001-02

Cell model:26650/3.2V/3000mAh

Battery specification: 26650/2S16P/6.4V/48Ah

Nominal voltage:6.4V

Nominal capacity:48Ah

Charging voltage: 7.2V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 5A

End-off voltage: 5.0V

Internal resistance: ≤100mΩ

Battery weight: 3200g

Product dimension: 230*120*75mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: LED light, testing equipment

*
*
*
