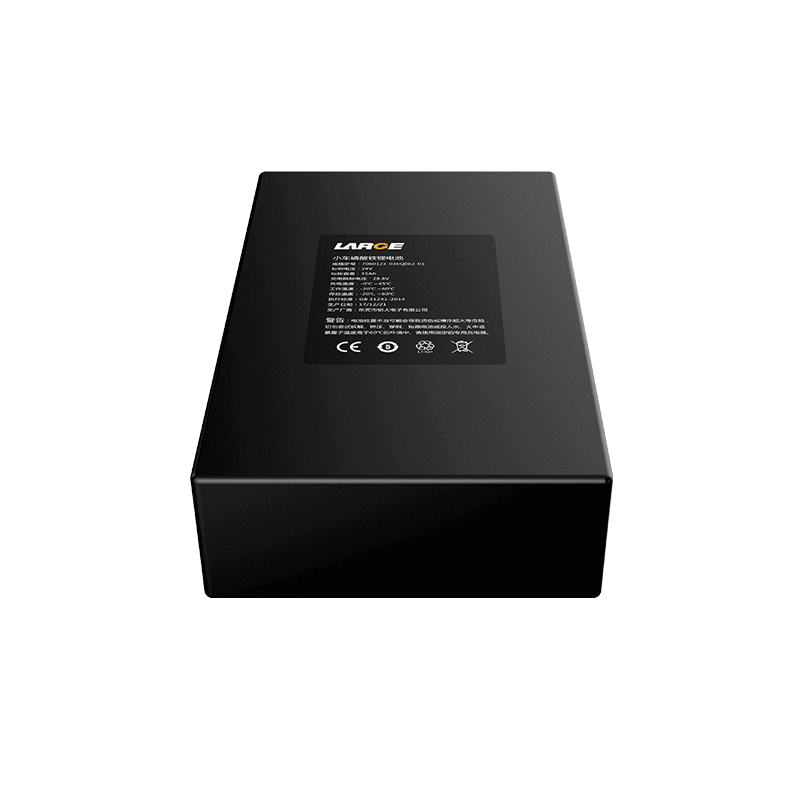

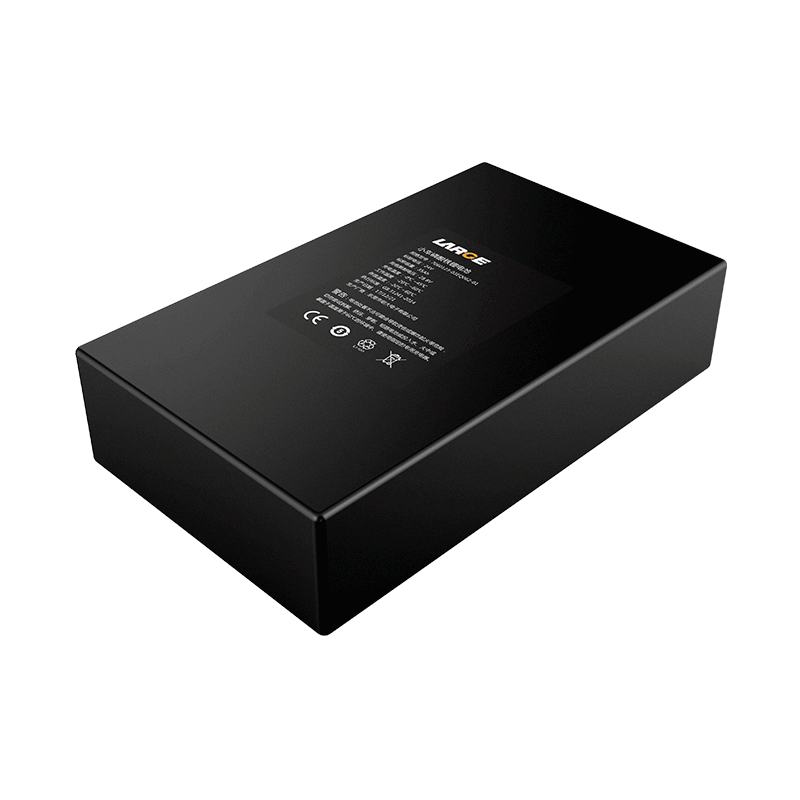

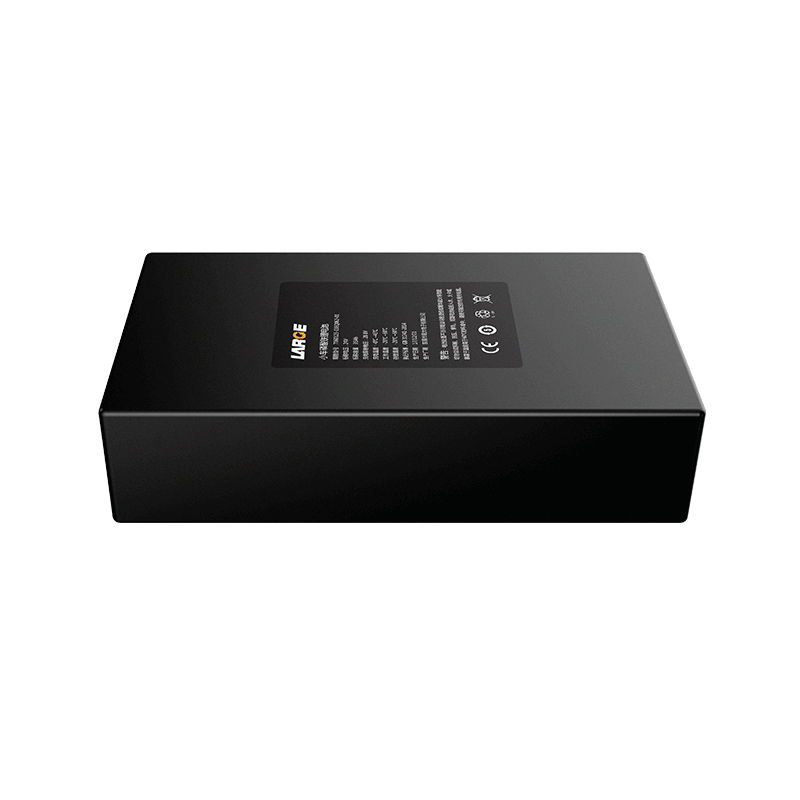

26650 24V 35Ah LiFePO4 Battery Lishen Battery AGV Lithium Ion Battery with RS485

  • Model number:03EQ062-01

  • Nominal voltage:24.0V

  • Nominal capacity:35000mAh

  • Battery cell:26650/3.2V/3500mAh

  • Dimension:342*205*75mm(Max)

  • Application:wide application, industrial equipment, AGV, etc.

Product Detail

Product number: 03EQ062-01

Cell model:26650/3.2V/3500mAh

Battery specification: 26650-8S10P/24V/35Ah

Nominal voltage:24V

Nominal capacity:35Ah

Charging voltage: 28.8V

Charging current: ≤7A

Discharging current: 35A

Instant discharging current: 50A

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 9kg

Product dimension: 342*205*75mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~60 ℃

Temperature protection: 65℃±5℃

Battery case: PVC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, 485 communication, etc.

Application field: wide application, industrial equipment, AGV, etc.


Product features

1. Communication function: show the battery voltage and capacity by LCD and RS485 communication protocol.

2. Output terminal: adopt output interface of leading wire to increase conductive reliability.

3. Data communication management: adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery pack has good security, its own handle, nice low-temperature performance and long cycle life.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
