Custom Lithium ion Battery Pack

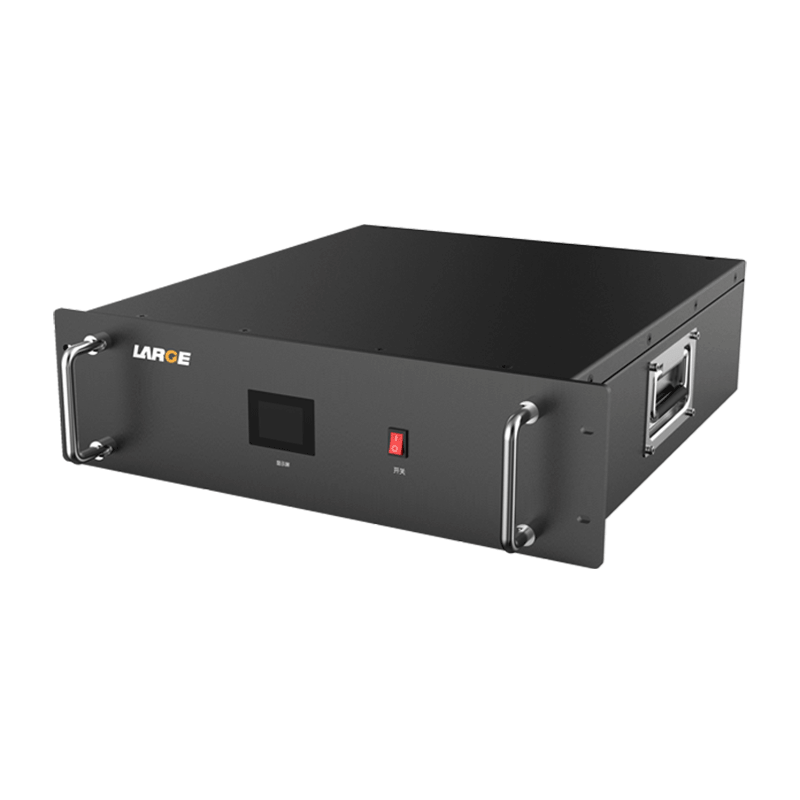

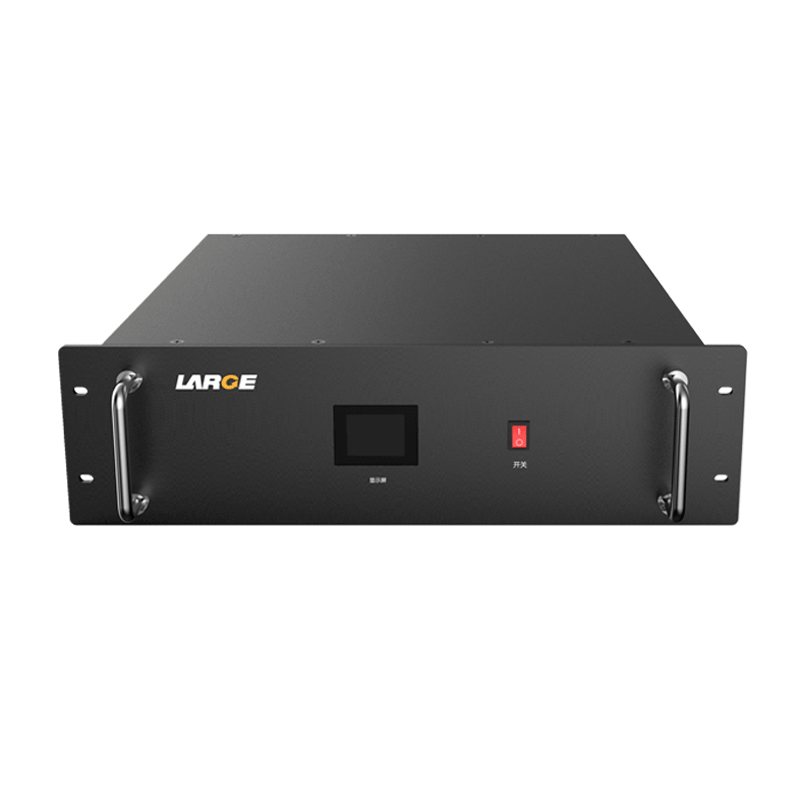

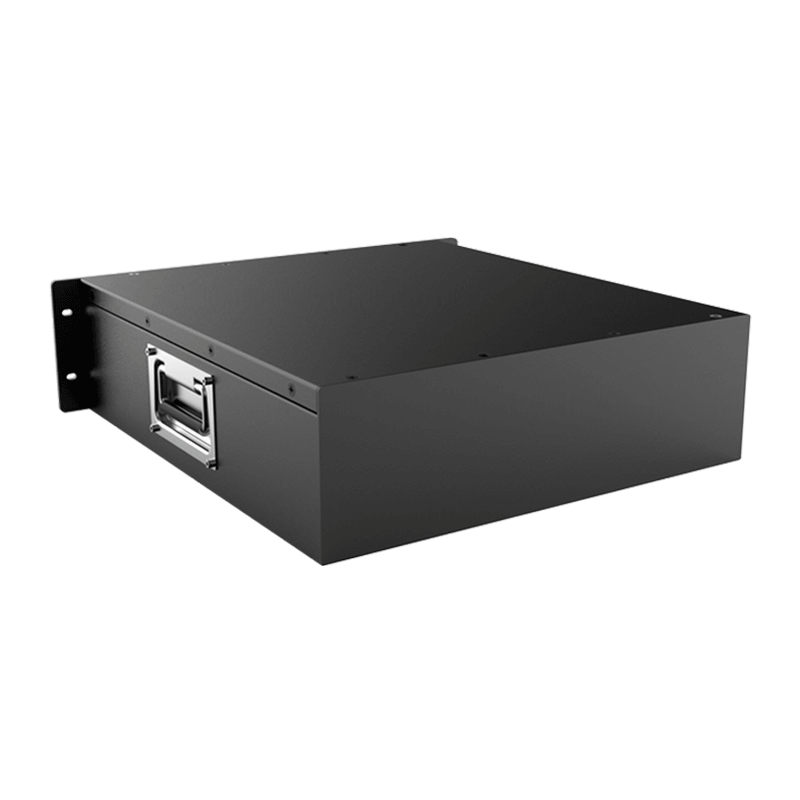

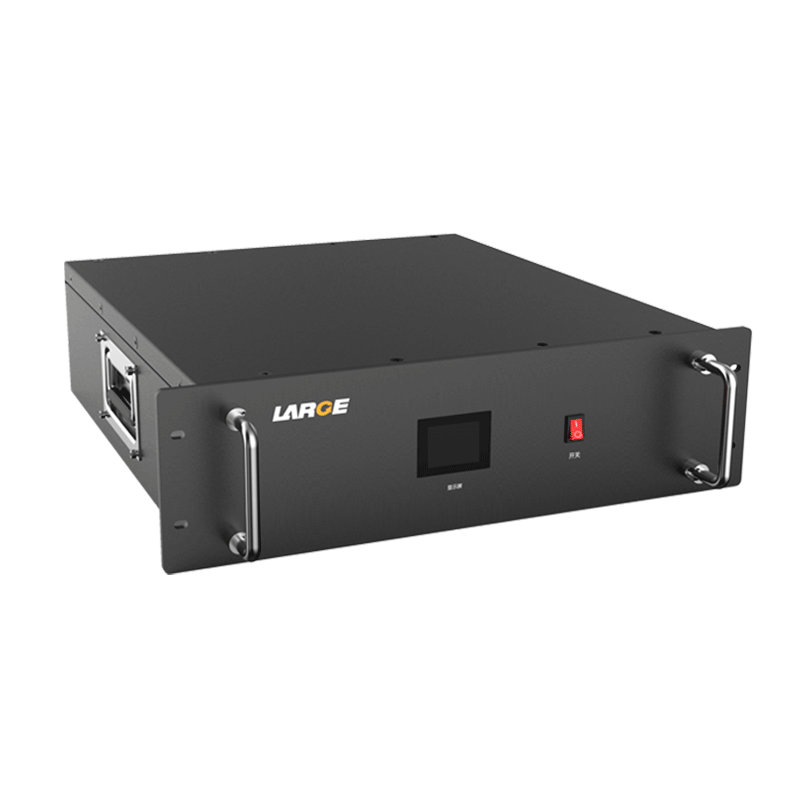

48V 50Ah LiFePO4 Battery Mobile Communication Base Station Lithium Ion Battery with RS485 Communication

  • Model number:03EQ065-01

  • Nominal voltage:48.0V

  • Nominal capacity:50000mAh

  • Battery cell:Fe25Ah/25Ah/3.2V

  • Dimension:482*477*133.2mm(Max)

  • Application:cold rolling and powder praying housing

Product Detail

Product number: 03EQ065-01

Cell model:Fe25Ah/25Ah/3.2V

Battery specification: Fe25Ah-15S2P/48V/50Ah

Nominal voltage:48V

Nominal capacity:50Ah

Charging voltage: 54V

Charging current: ≤10A

Discharging current: 50A

Instant discharging current: 300A

End-off voltage: 37.5V

Internal resistance: ≤200m?

Battery weight: 35kg

Product dimension: 482*477*133.2mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~60 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and powder praying housing

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, 485 communication, etc.

Application field: industrial equipment, emergency power supply of mobile communication, etc.


Product features

1. Communication function: show the battery voltage and capacity by LCD.

2. Output terminal of binding post: fuse large current output terminal of binding post to increase conductive reliability;

3. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery pack has good security, its own handle, nice low-temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
