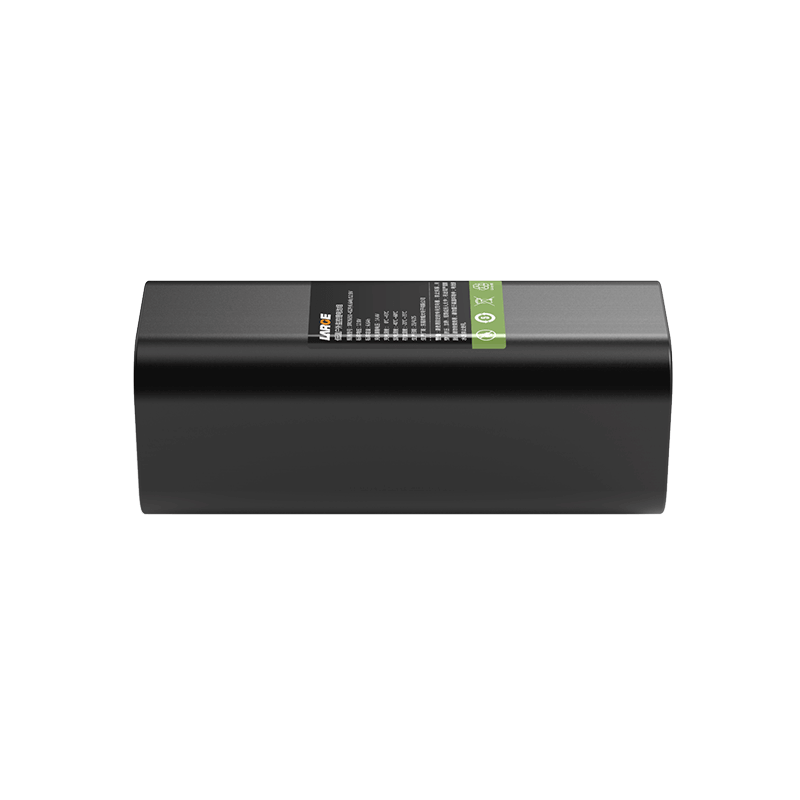

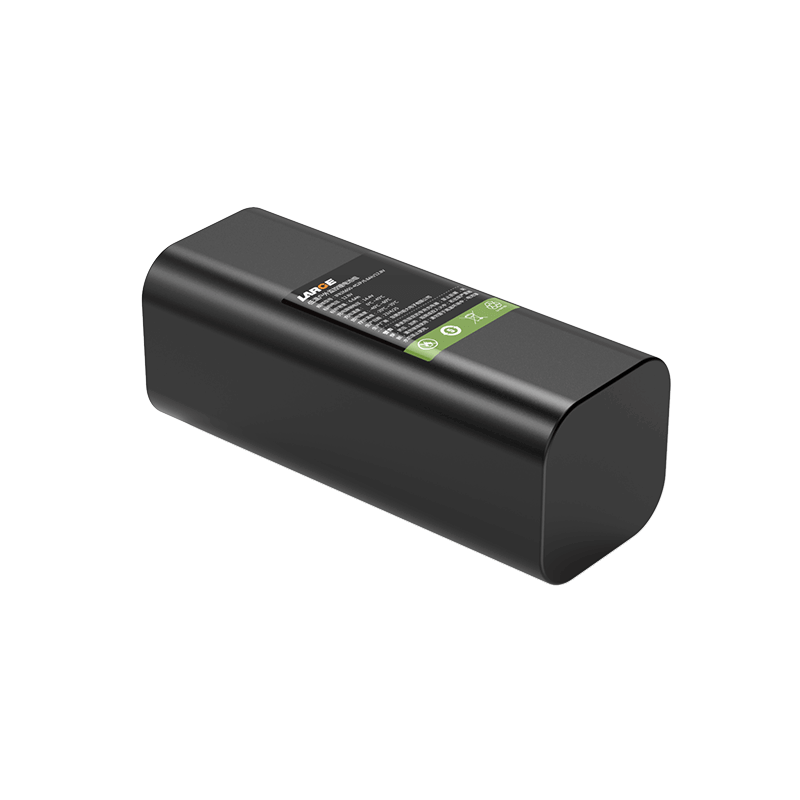

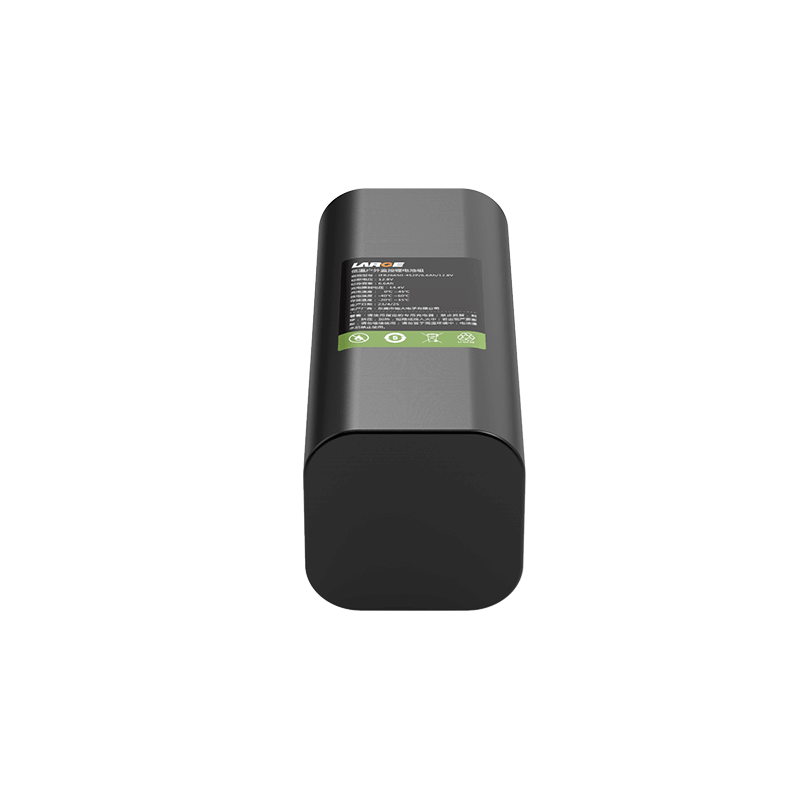

Low Temperature charge and discharge liFePO4 26650 12.8V 6.6Ah Outdoor Monitor Battery Pack
Product Number:
01WQ0103-01
Nominal voltage:
12.8V
Nominal capacity:
6.6Ah
Battery Configuration:
IFR26650-4S2P
Dimension:
55 × 55 × 138mm
Application:
outdoor monitoring equipment
Low Temperature Resistance, Stable Power Output, Multiple Protection System
Product Overview
This battery is designed for outdoor monitoring equipment, supporting continuous operation in harsh and low-temperature environments. With stable power output and reliable protection functions, it ensures long-lasting and dependable performance for outdoor applications.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 01WQ0103-01 |
| Cell Model | IFR26650/3300mAh/3.2V |
| Battery Configuration | IFR26650-4S2P |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 6.6Ah |
| Rated Energy | 84.48Wh |
| Charging Voltage | 14.4V |
| Discharge Cut-off Voltage | 10.0V |
| Standard Charging Current | ≤4.0A |
| Standard Discharge Current | 6.0A |
| Max Continuous Discharge Current | 8A |
| Internal Resistance | ≤240mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | -20 ~ 45℃ |
| Discharge Temperature | -40 ~ 60℃ |
| Storage Temperature | -20 ~ 35℃ |
| Dimensions | 55 × 55 × 138mm |
| Weight | 750g |
| Protection System | Short Circuit Protection, Overcharge Protection, Overdischarge Protection, Overcurrent Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
