Custom Lithium Ion Battery Pack

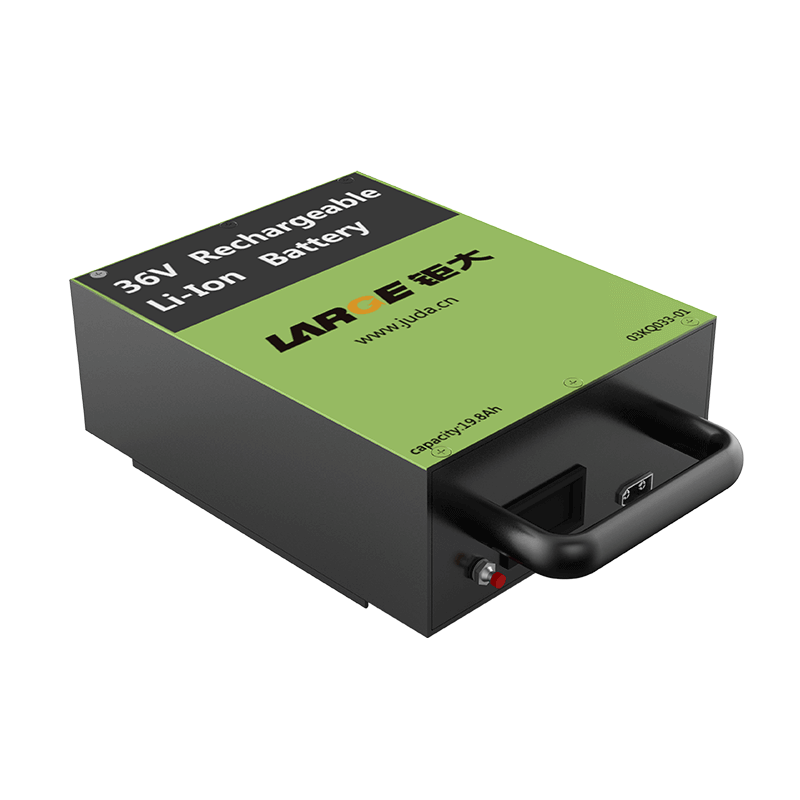

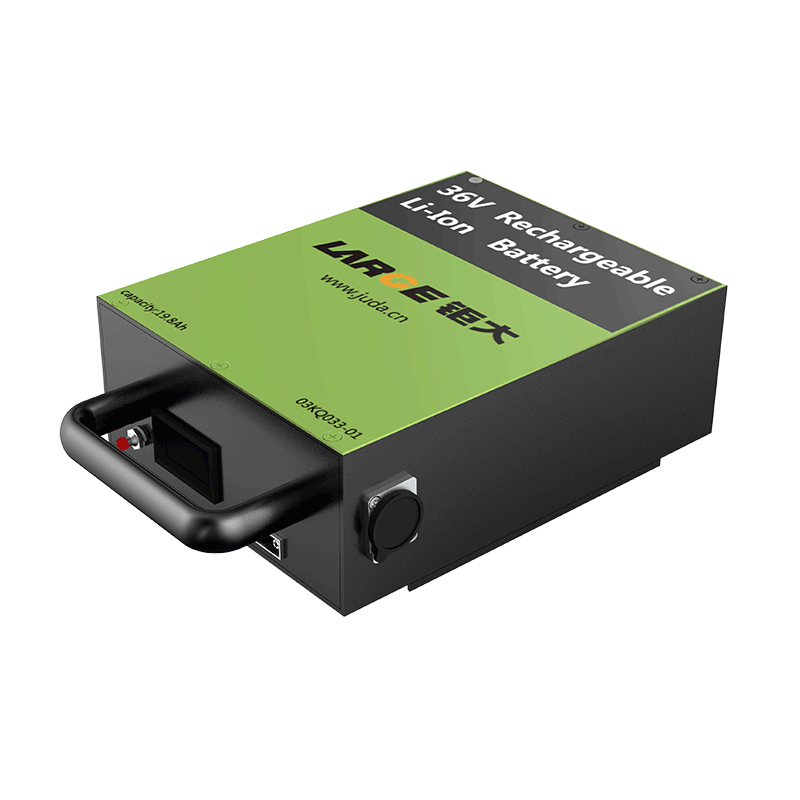

36V 19.8Ah 18650 Low Temperature Lithium Ion Battery for Electric Wrench

  • Model number:03KQ033-01

  • Nominal voltage:36.0V

  • Nominal capacity:19800mAh

  • Battery cell:18650/3.7V/2200mAh

  • Dimension:232*180*80mm(Max)

  • Application:tightening device of railway, electric wrench

Product Detail

Product number: 03KQ033-01

Cell model:18650/3.7V/2200mAh

Battery specification: 18650-10S9P/36V/19.8Ah

Nominal voltage:36V

Nominal capacity:19.8Ah

Charging voltage: 42V

Charging current: ≤10A

Discharging current: 10A

Instant discharging current: 20A

End-off voltage: 25V

Internal resistance: ≤200mΩ

Battery weight: 5Kg

Product dimension: 232*180*80mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: aluminum alloy housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: tightening device of railway, electric wrench
