22 Years' Battery Customization

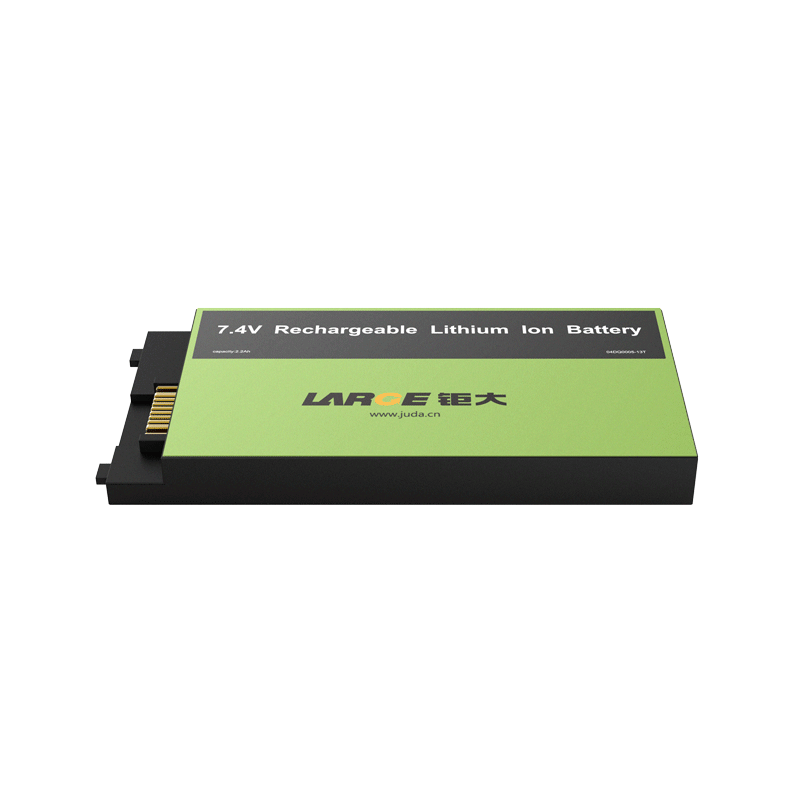

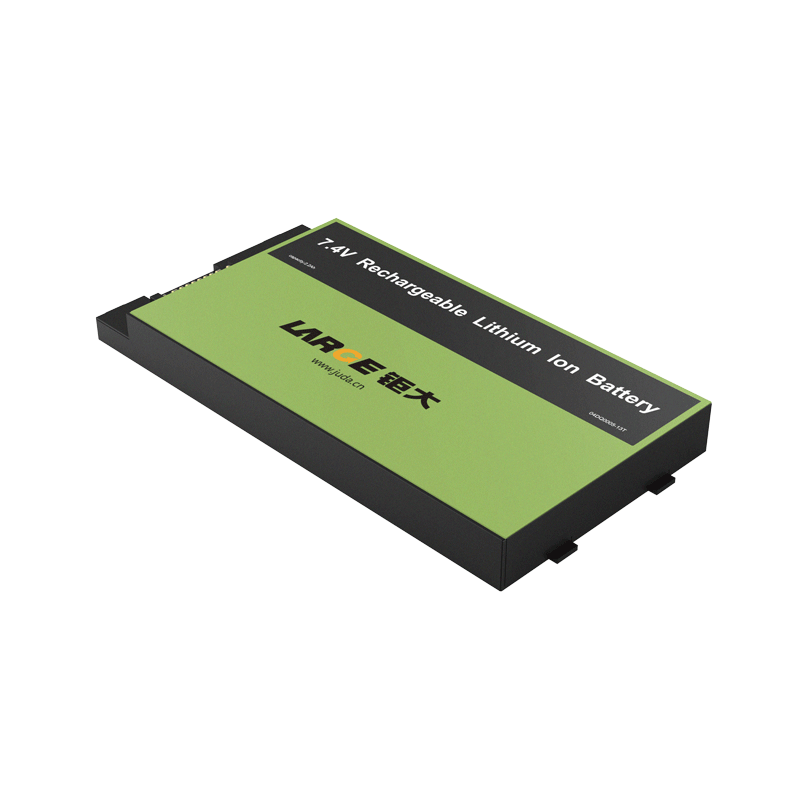

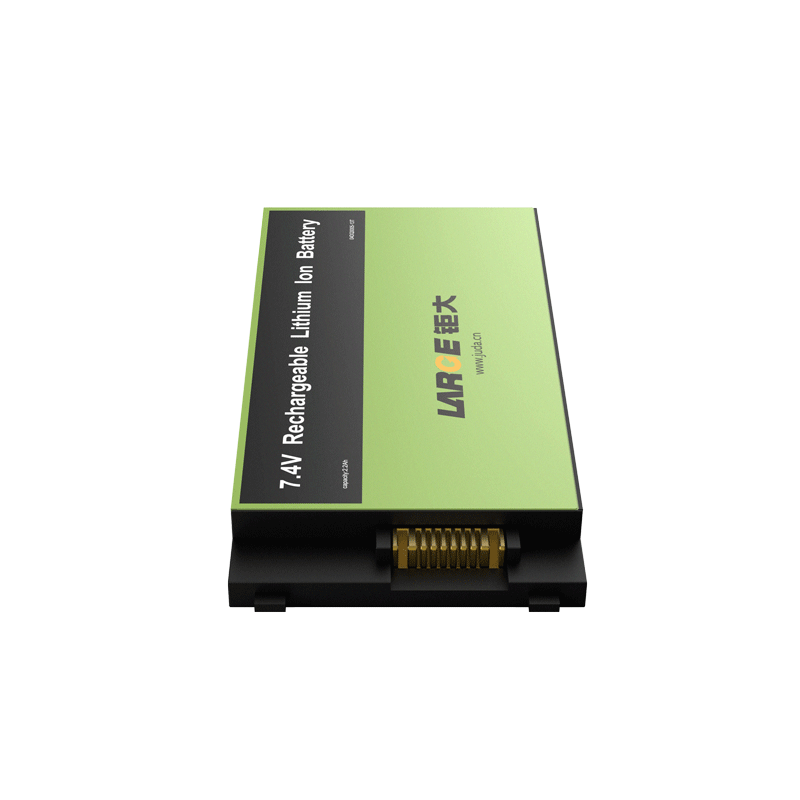

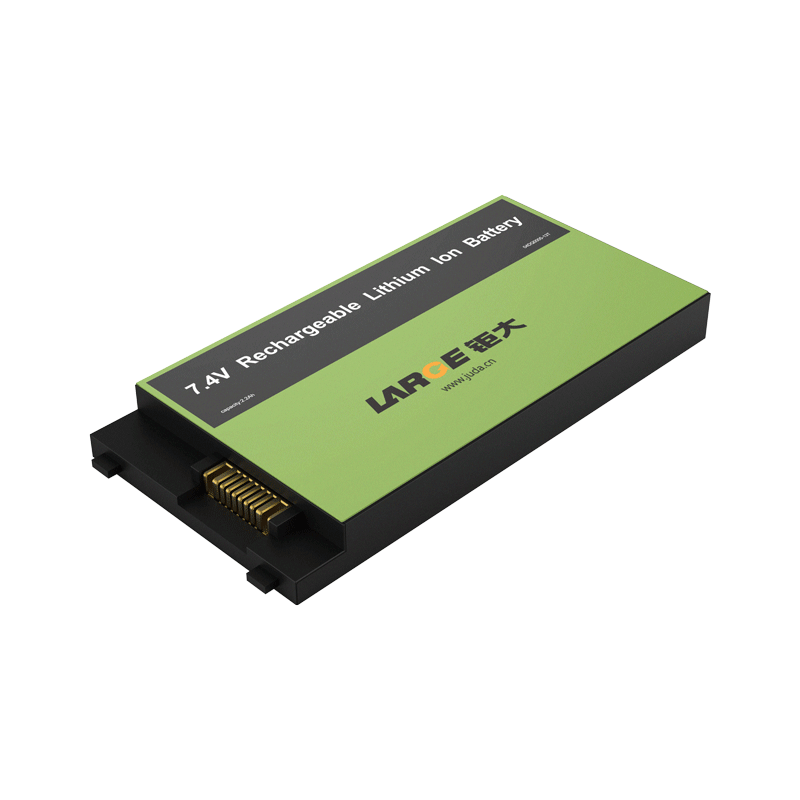

7.4V 6Ah Low Temperature Battery for Mobile Terminal -40℃ Low Temperature Discharge

7.4V 6Ah Low Temperature Battery for Mobile Terminal -40℃ Low Temperature Discharge
7.4V 6Ah Low Temperature Battery for Mobile Terminal -40℃ Low Temperature Discharge
7.4V 6Ah Low Temperature Battery for Mobile Terminal -40℃ Low Temperature Discharge
7.4V 6Ah Low Temperature Battery for Mobile Terminal -40℃ Low Temperature Discharge

Product Detail

Product number: 08DQ0002-01

Cell model:3068120/3.7V/3000mAh

Battery specification: 3068120-2S2P/7.4V/6000mAh

Nominal voltage:7.4V

Nominal capacity:6Ah

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 1A

Instant discharging current: 6A

End-off voltage: 5.0V

Internal resistance: ≤180mΩ

Battery weight: 260g

Product dimension: 140*71.1*13.85mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~55 ℃

Storage temperature: -20~45 ℃

Battery case: engineering plastic

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, I2C communication protocol (SMBUS), etc.

Application field: special mobile terminal, reinforced panel


Product features

1. Hardware output terminal: adopt gold plating sheet output mode to increase conductive reliability.

2. Battery adapts the temperature: battery discharges at -40℃, and discharge current maintain 70% with 2A capacity.

3. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery pack has good security, nice low-temperature performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
