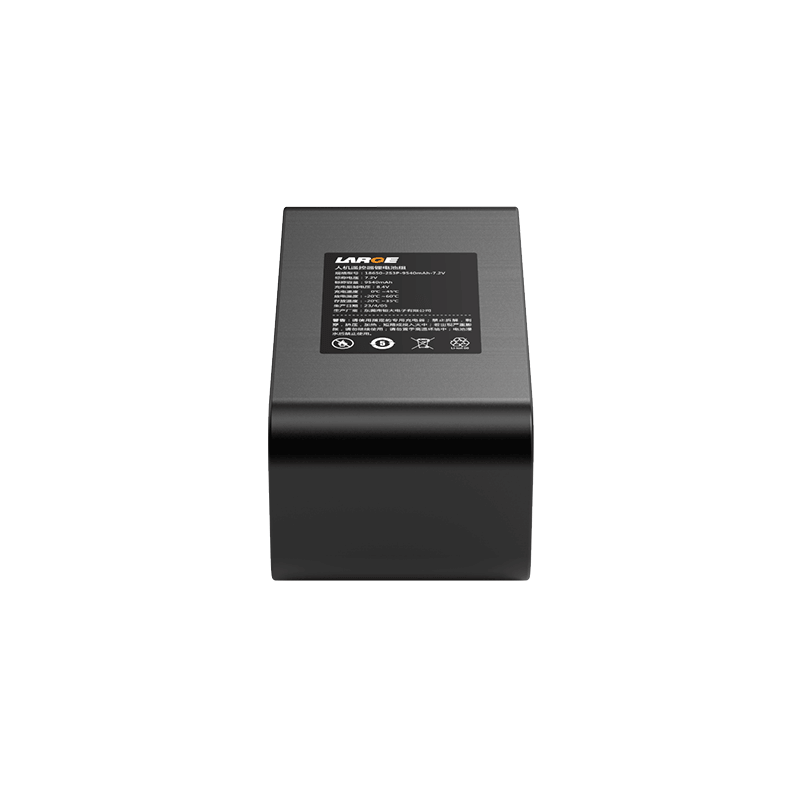

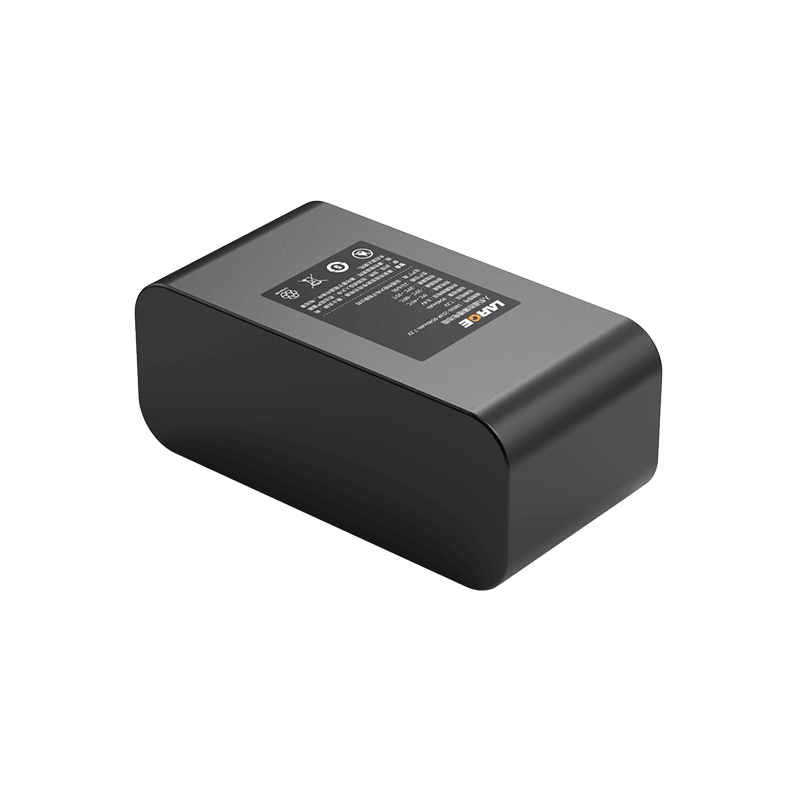

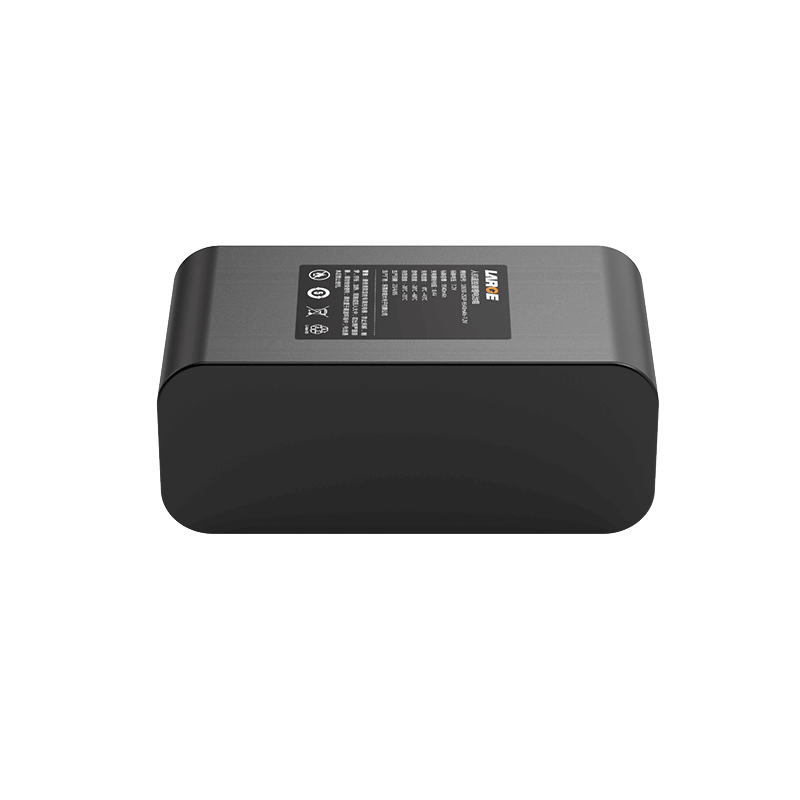

Low Temperature LiFePO4 26650 6.4V 15Ah Smart Video Surveillance Battery

Low Temperature LiFePO4 26650 6.4V 15Ah Smart Video Surveillance Battery
Low Temperature LiFePO4 26650 6.4V 15Ah Smart Video Surveillance Battery
Low Temperature LiFePO4 26650 6.4V 15Ah Smart Video Surveillance Battery
Low Temperature LiFePO4 26650 6.4V 15Ah Smart Video Surveillance Battery

Product Detail

Product number: 05DQ0068-03

Cell model: 26650-3300mAh-3.2V

Battery specifications: 26650-2S5P-15Ah-6.4V

Product size: 140*57*85mm (Max)

Nominal voltage: 6.4V

Nominal capacity: 15Ah

Finished internal resistance: ≤180mΩ

Charging voltage: 7.2V

Charging current: ≤3.6A

Discharge current: ≤3.6A

Discharge cut-off voltage: 4.0V

Battery weight: 1000g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Applications: power/national road and other intelligent video surveillance equipment, security equipment


Product Features

1.The battery pack is protected by epoxy plate and connected by special nickel sheet, which has good shock resistance and impact resistance.

2.Adopt MOLEX plug output mode to increase electrical conductivity reliability;

3.-20℃ charging, -40℃ discharging

4.Use special lithium-ion battery protection chip, with high stability, high precision monitoring, precise control and protection functions, to eliminate security risks;

5.Low temperature discharge performance is good, -40℃ discharge capacity is more than 50%;

6.The battery pack has nice safety, good discharge performance and long cycle life;

7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.

*
*
*
*
*
