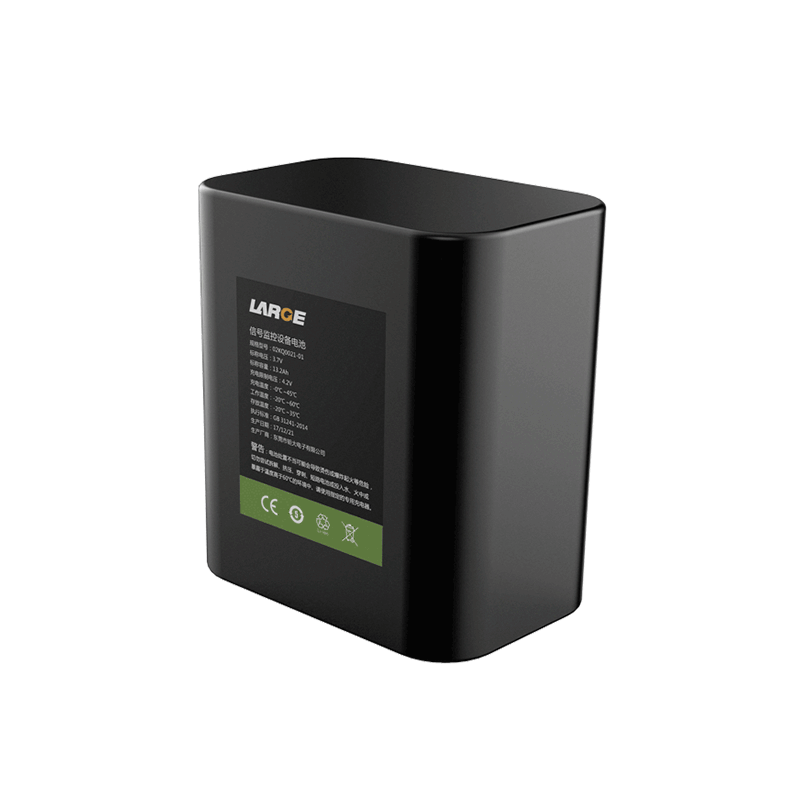

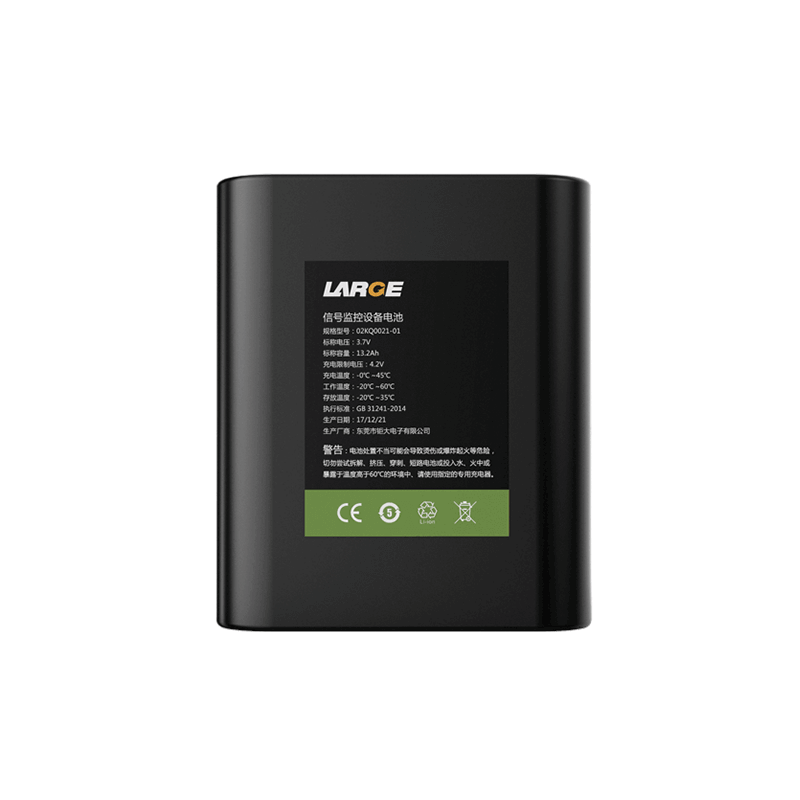

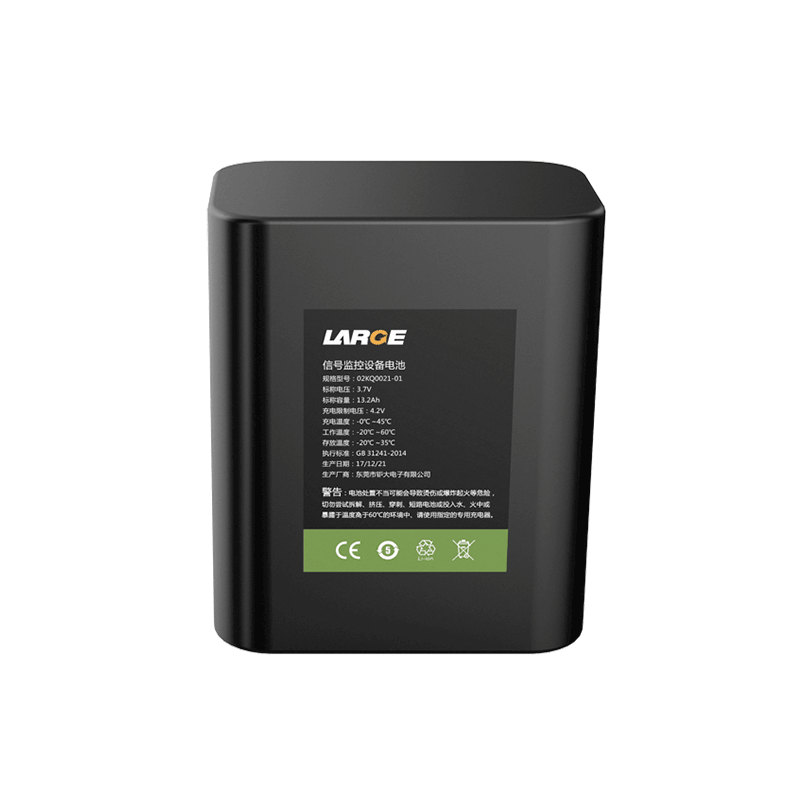

Custom Lithium Ion Battery Pack

18650 3.7V 13.2Ah Low Temperature Battery Signal Monitor

  • Model number:02KQ0021-01

  • Nominal voltage:3.7V

  • Nominal capacity:13200mAh

  • Battery cell:724261/2000mAh/3.7V (low temperature -40℃)

  • Dimension:67.5*56.9*37.5mm(Max)

  • Application:handheld battery of navigation equipment

Product Detail

Product number: 02KQ0019-01

Cell model724261/2000mAh/3.7V (low temperature -40)

Battery specification: 724261/2P/4000mAh/3.7V (low temperature -40)

Nominal voltage3.7V

Nominal capacity4000mAh

Charging voltage: 4.2V

Charging current: 2.0A

Discharging current: 4.0A

Instant discharging current: 6.0A for 1mS

End-off voltage: 2.8V

Internal resistance: 150mΩ

Battery weight: about 90g

Product dimension: 63*42.5*15mmMax

Charging temperature045

Discharging temperature: -4060 ℃(-40 800mA discharge60%

Storage temperature: -2035

Temperature protection: 55℃±2

Battery case: PVC

Lithium-ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection, charge and discharge short circuit protection, charge and discharge temperature protection, etc.

Application field: handheld battery of navigation equipment

*
*
*
