Custom Lithium Ion Battery Pack

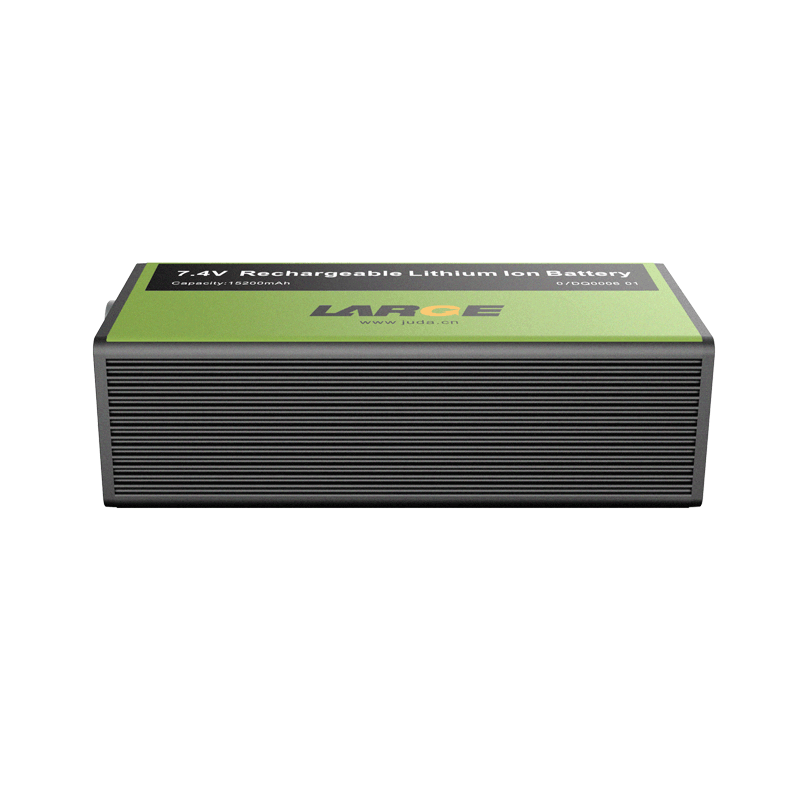

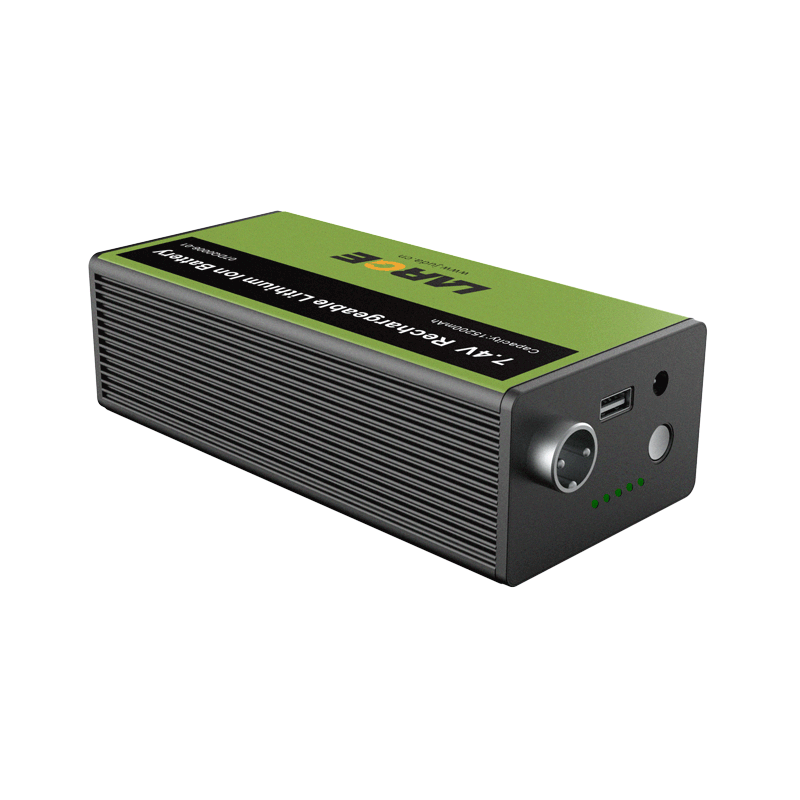

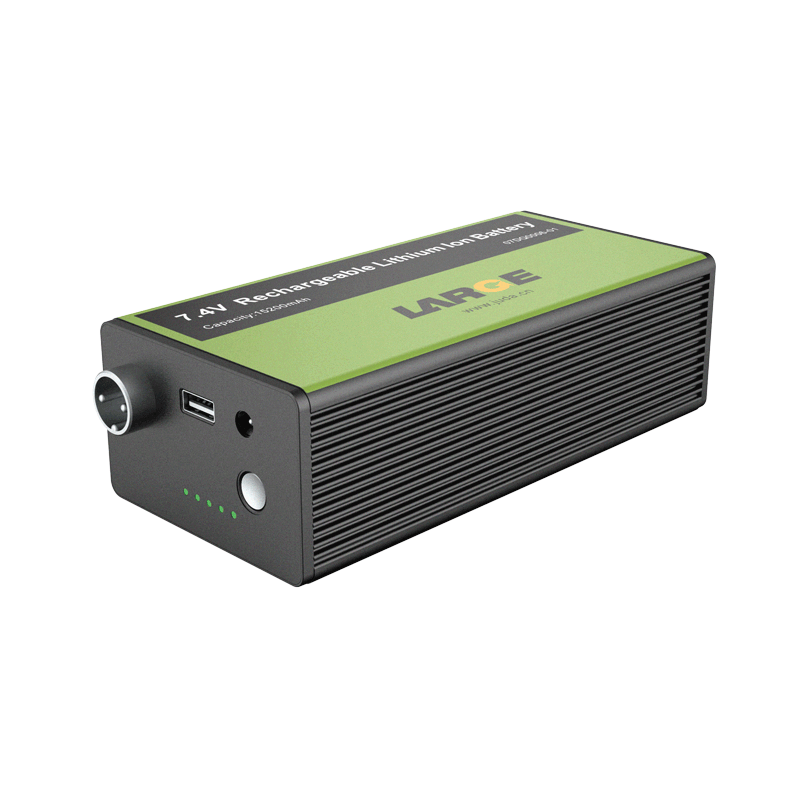

18650 7.4V 15200mAh Low Temperature Battery for Backup Power of Interphone

  • Model number:07DQ0006-01

  • Nominal voltage:7.4V

  • Nominal capacity:15200mAh

  • Battery cell:18650/3.7V/2200mAh

  • Dimension:172*52.5*82.8mm(±0.3mm)

  • Application:outdoor adventure, police patrol, scientific investigation, emergency rescue, outdoor interphone power bank, etc.

Product Detail

Cell model:18650/3.7V/2200mAh

Battery specification: 18650/2S7P/15200mAh/7.4V

Nominal voltage:7.4V

Nominal capacity:15200mAh

Charging voltage: 8.4V

Charging current: ≤4A

Discharging current: ≤4A

End-off voltage: 4.8V

Internal resistance: ≤180mΩ

Battery weight: 0.8Kg

Product dimension: 172*52.5*82.8mm(±0.3mm)

Charging temperature:0~45℃

Discharging temperature: -40~60℃

Storage temperature: -20~45℃

Battery case: aluminium alloy

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, etc.

Application field: outdoor adventure, police patrol, scientific investigation, emergency rescue, outdoor interphone power bank, etc.


Product features

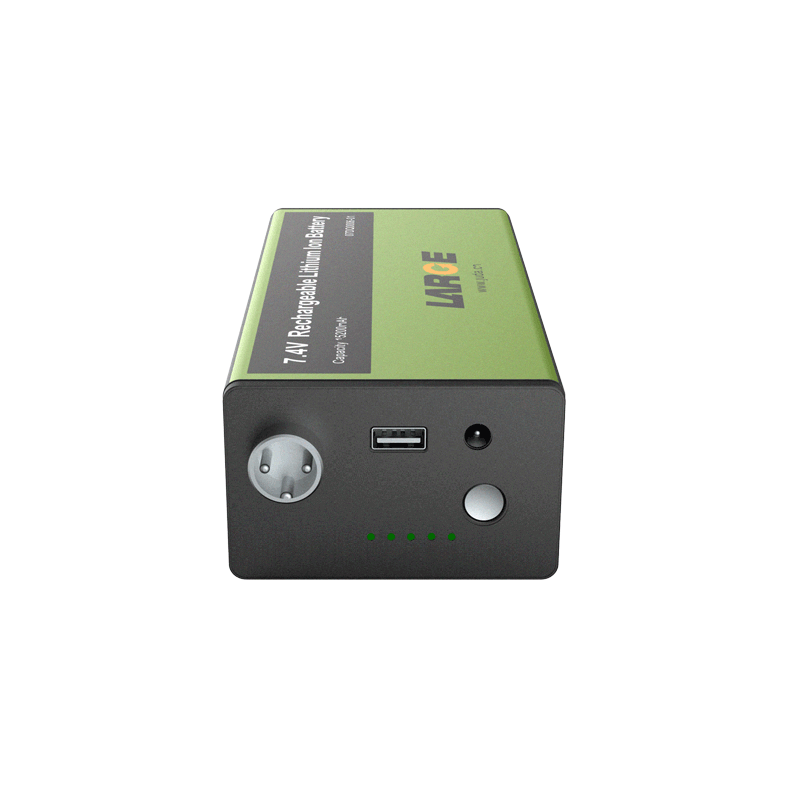

Charger connector: adopt general DC5.5-2.1 terminal.

Output terminal: adopt 2pin aviation plug output mode.

USB charge function: compatible tradition 5V USB charge mode, and support mobile phone charge.

LED power display: display battery charge status and charge process so as to improve product recognition effect.

The battery pack has good security, nice performance and long cycle life. It can work at -40℃.

The battery pack comply to GB 31241、GB/T18287 national standard.


*
*
*
