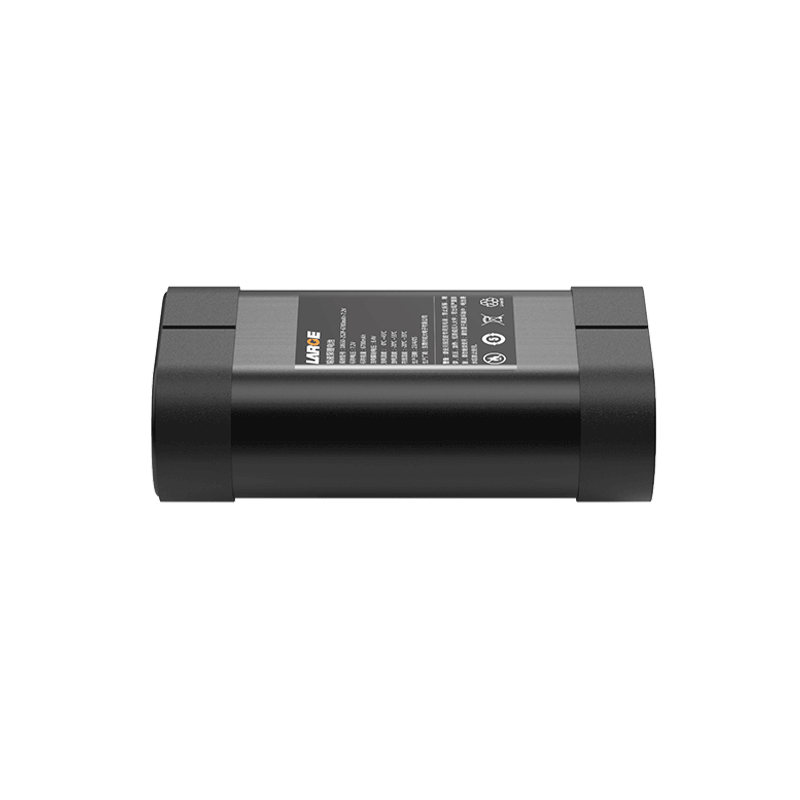

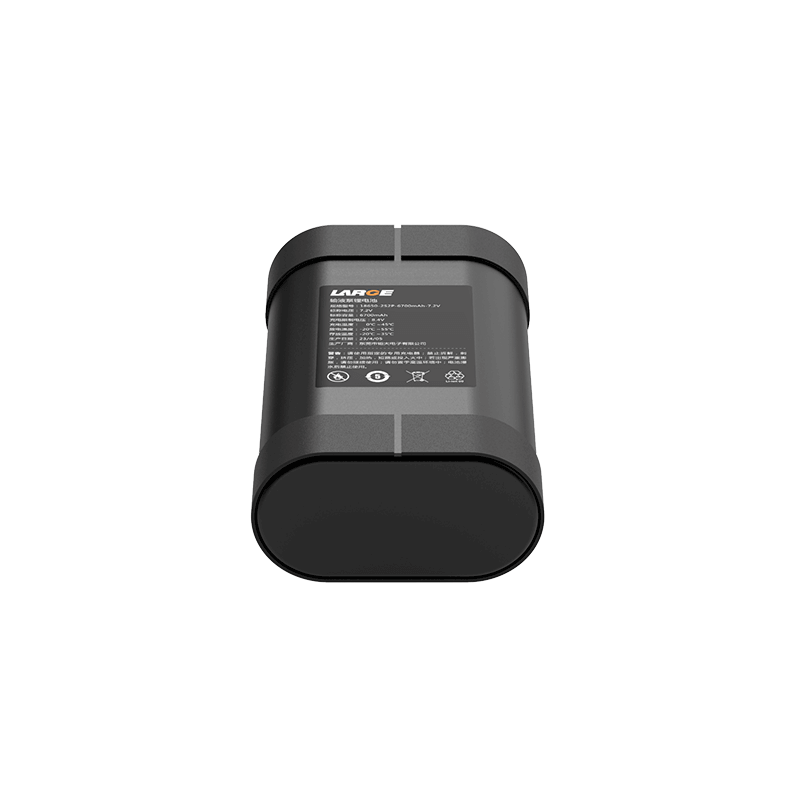

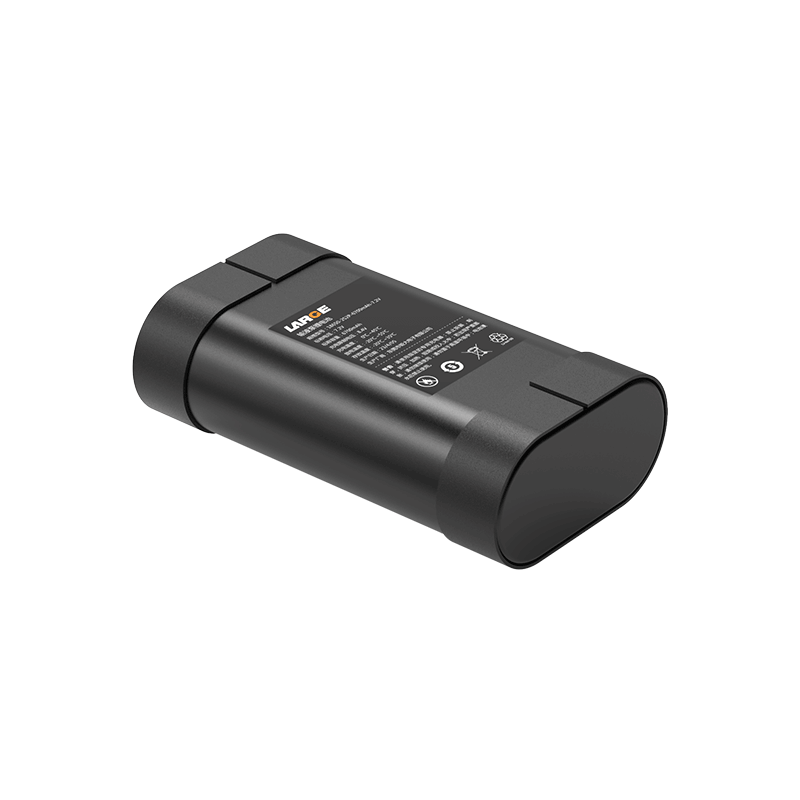

18650 3.6V 6000mAh Security Monitoring Equipment Lithium-ion Battery Pack
Product Number:
01DQ0040-43
Nominal voltage:
3.6V
Nominal capacity:
6000mAh
Battery Configuration:
18650-1S2P
Dimension:
23 × 39 × 68.5 mm
Application:
security monitoring devices
Compact PVC Case, USB Charging Support, Long Cycle Life
Product Overview
This battery is specially designed for security monitoring devices, suitable for video surveillance, mobile security, and high-frequency data transmission scenarios. Featuring stable output, long runtime, and a compact structure, it supports reliable continuous operation.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 01DQ0040-43 |
| Cell Model | 18650/3250mAh/3.6V |
| Battery Configuration | 18650-1S2P |
| Nominal Voltage | 3.6V |
| Nominal Capacity | 6000mAh |
| Rated Energy | 21.6Wh |
| Standard Charging Current | ≤2.6A |
| Standard Discharge Current | 2.6A |
| Max Continuous Discharge Current | 5A |
| Discharge Cut-off Voltage | 3.0V |
| Internal Resistance | ≤250 mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 60℃ |
| Storage Temperature | -20 ~ 25℃ |
| Dimensions | 23 × 39 × 68.5 mm |
| Weight | 130 g |
| Battery Case | PVC |
| Protection System | Power management, short circuit, overcharge, overdischarge, overcurrent, USB charging |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
