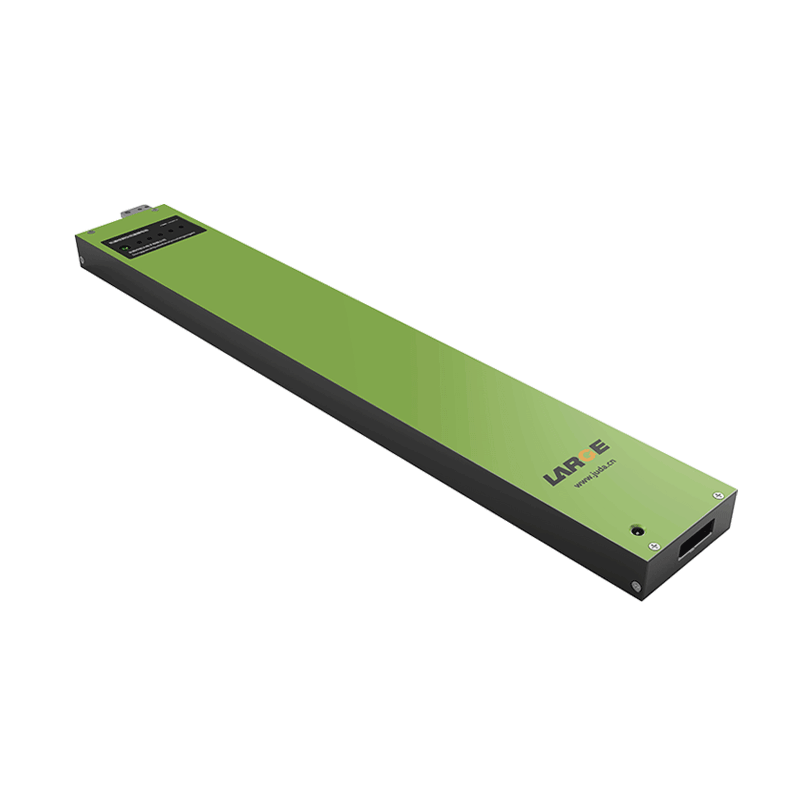

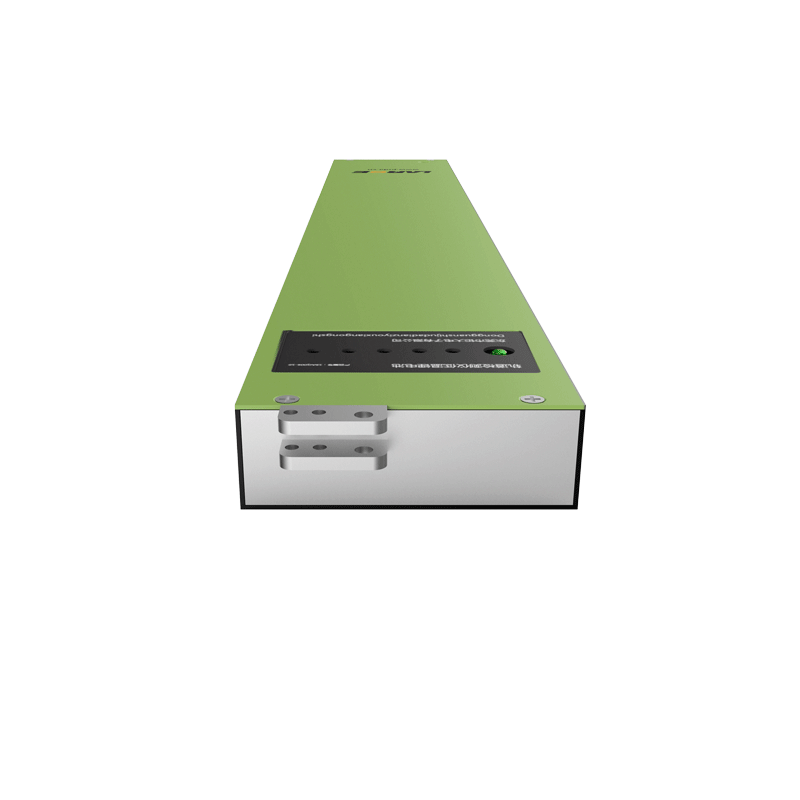

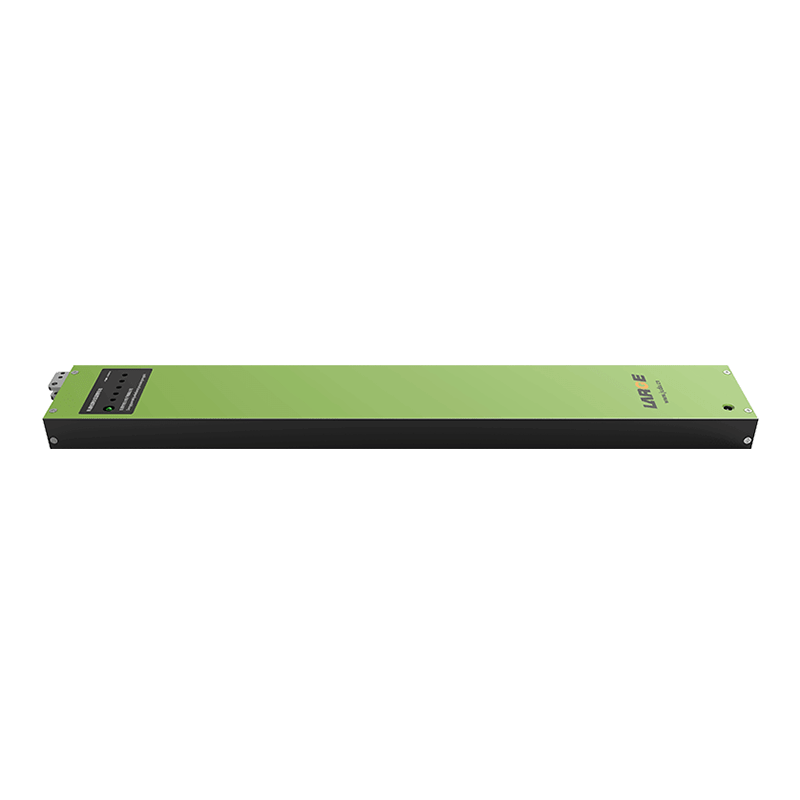

Custom Lithium Ion Battery Pack

21.6V 8800mAh 18650 Low Temperature Lithium Ion Battery for Track Detector

  • Model number:19AQ006-10

  • Nominal voltage:21.6V

  • Nominal capacity:8800mAh

  • Battery cell:18650/3.7V/2200mAh

  • Dimension:492*78*26mm(Max)

  • Application:railway track detection

Product Detail

Product number: 19AQ006-10

Cell model:18650/3.7V/2200mAh

Battery specification: 18650-6S4P/21.6V/8800mAh

Nominal voltage:21.6V

Nominal capacity:8800mAh

Charging voltage: 25.2V

Charging current: ≤4.4A

Discharging current: 8A

Instant discharging current: 12A

End-off voltage: 15V

Internal resistance: ≤250mΩ

Battery weight: 1.5Kg

Product dimension: 492*78*26mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60 ℃

Storage temperature: -40~35 ℃

Temperature protection: 65℃±5℃

Battery case: aluminum alloy housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, capacity display, etc.

Application field: railway track detection


*
*
*
