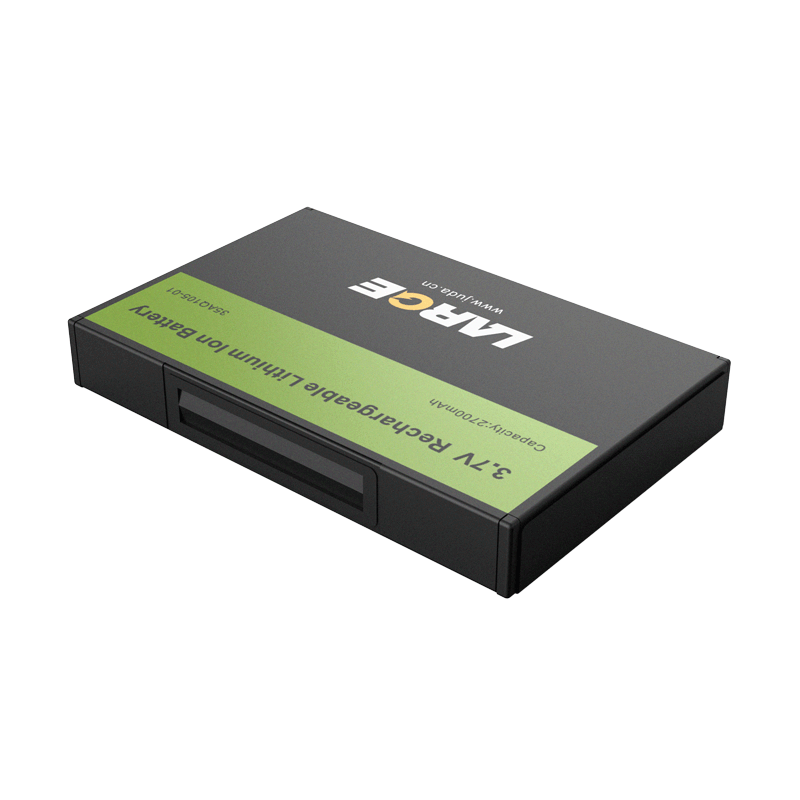

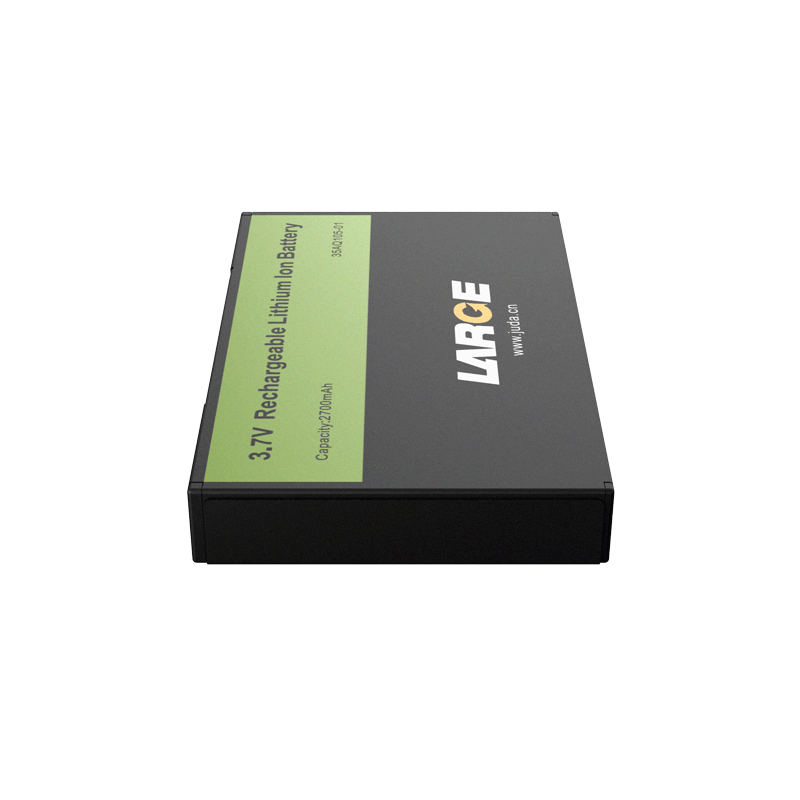

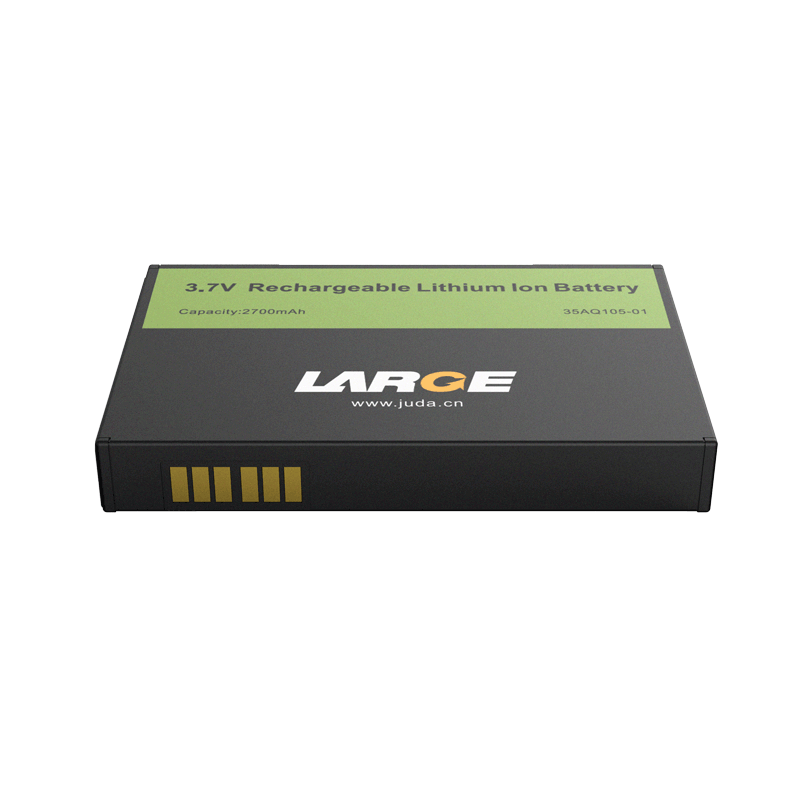

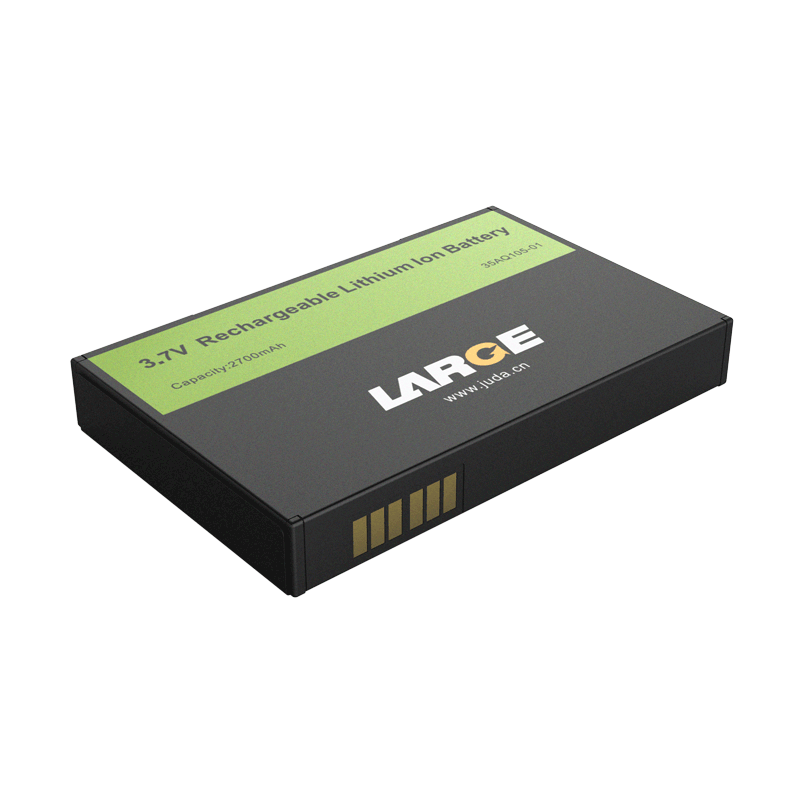

3.7V 2700mAh Low Temperature Battery for Handheld Big Dipper Terminal

Product Detail

Product number: 35AQ105-01

Cell model:926840/2700mAh/3.7V

Battery specification: 926840-1S1P/2700mAh/3.7V

Nominal voltage:3.7V

Nominal capacity:2700mAh

Charging voltage: 4.2V

Charging current: 540mA

Discharging current: 540mA

Instant discharging current: 3200mA@200ms

End-off voltage: 2.5V

Internal resistance: ≤180mΩ

Battery weight: 75g

Product dimension: 71*46*10mm(Max)

Charging temperature:0~+45℃

Discharging temperature: -40~+55 ℃

Storage temperature: -20~+35 ℃

Temperature protection: 65℃±5℃

Battery case: engineering plastic PC+ABS

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, I2C communication, etc.

Application field: industrial device, handhold terminal device, etc.

Parameter function: short circuit protection, overcharge protection, over discharge protection, over current protection, I2C communication, etc.

Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Adopt military low temperature cell, which can discharge at -40℃, and has long cycle life.
