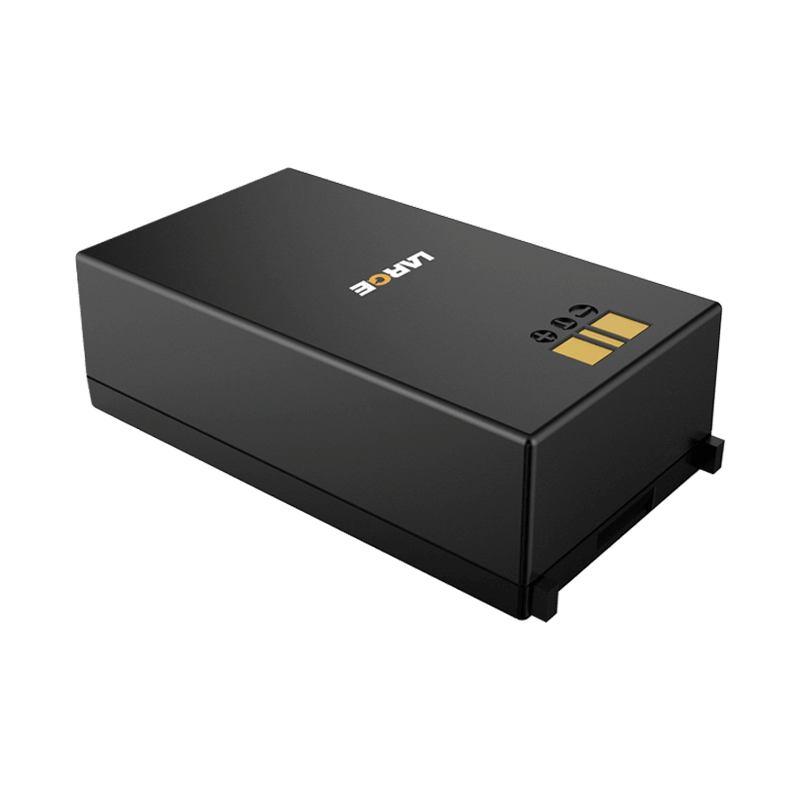

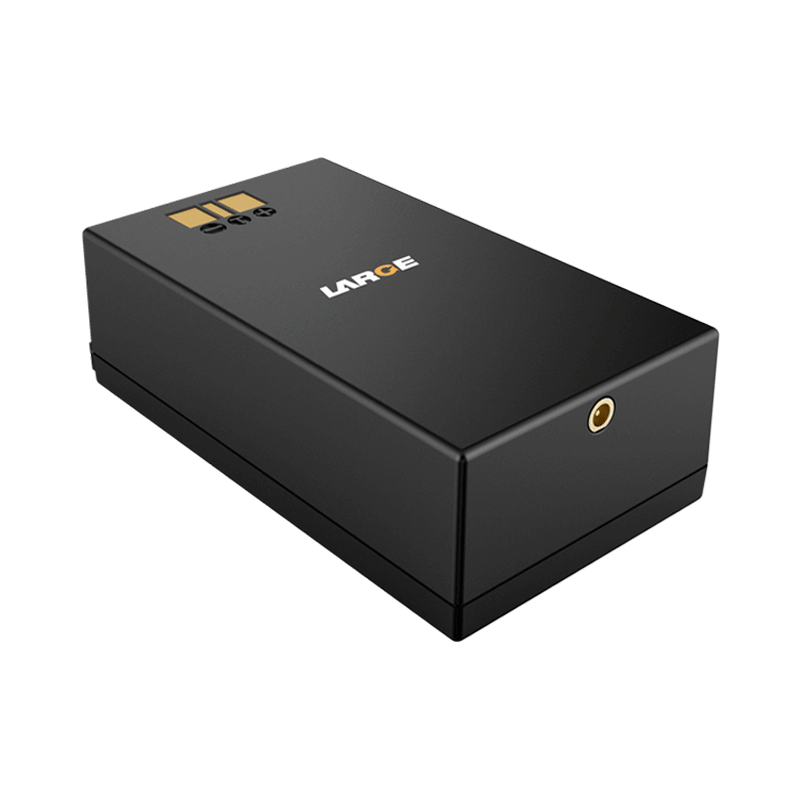

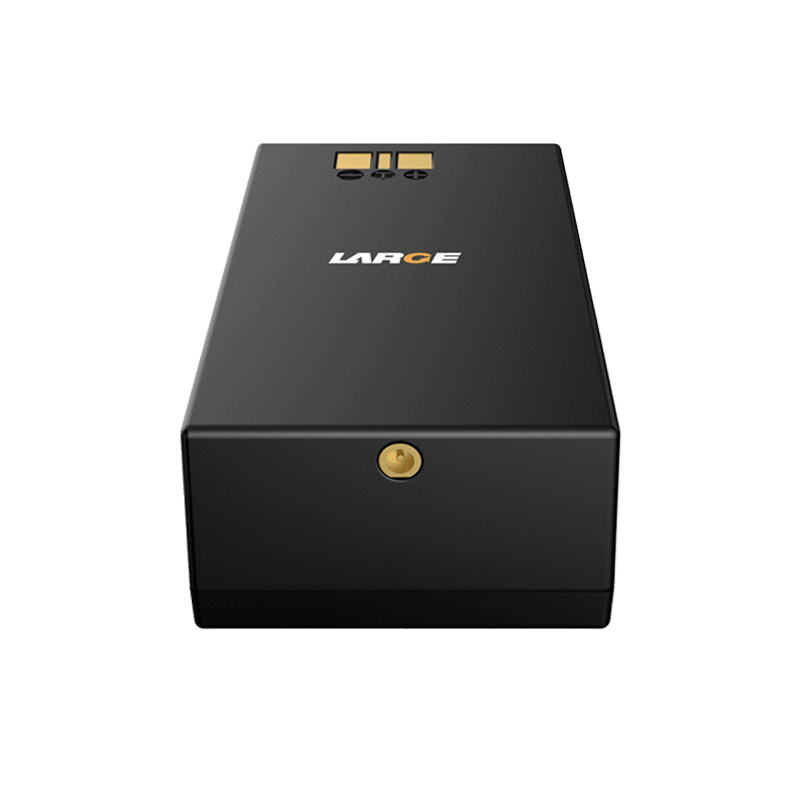

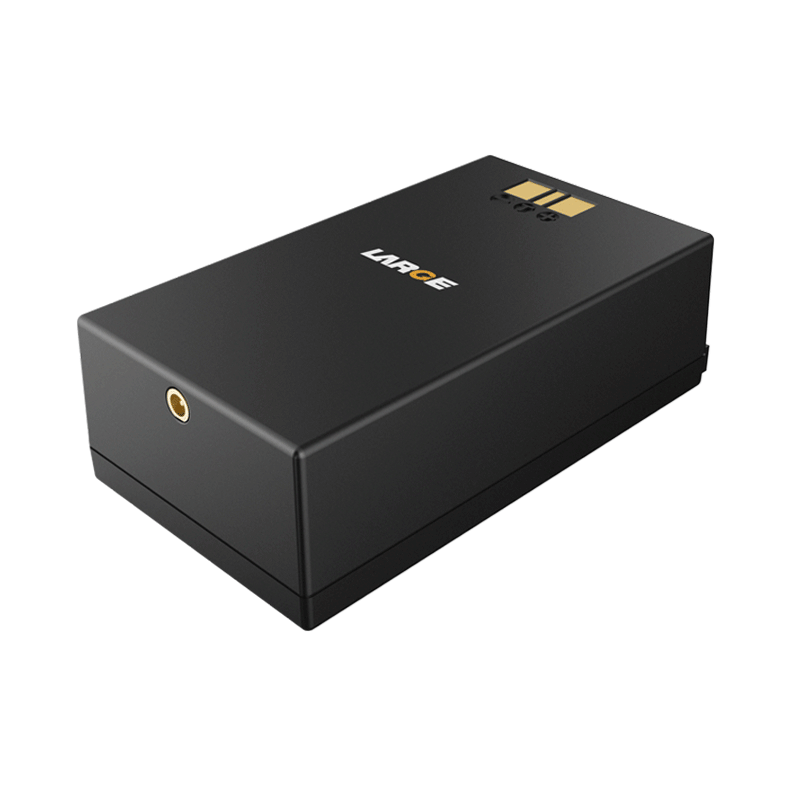

7.2V 2600mAh Lithium Ion Battery
Product Number:
03EQ072-01
Nominal voltage:
7.2V
Nominal capacity:
2600mAh
Battery Configuration:
18650-2S1P
Dimension:
71.3 × 40.3 × 22.8 mm
Application:
Electronic Tag of Internet of Things
UL94-V0 flame-retardant, Multi-level protection, Stable 2S output
Product Overview
Electrical Specifications
| Attribute | Parameter |
| Product Number | 03EQ072-01 |
| Cell Model | 18650 / 3.6V / 2600mAh |
| Battery Configuration | 18650-2S1P |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 2.6Ah |
| Rated Energy | 18.72Wh |
| Charging Voltage | 8.4V |
| Discharge Cut-off Voltage | 6V |
| Charging Current | ≤0.5A |
| Discharge Current | 0.5A |
| Internal Resistance | ≤100mΩ |
Mechanical & Environmental
| Attribute | Parameter |
| Charging Temperature | 0 ~ 45℃ |
| Discharge Temperature | -20 ~ 60℃ |
| Storage Temperature | -20 ~ 60℃ |
| Dimensions | 71.3 × 40.3 × 22.8 mm (Max) |
| Weight | 100g |
| Material | ABS+PC Flame-retardant Housing |
| Protection System | Short Circuit / Over-charge / Over-discharge / Over-current / Temperature Protection |
Application Background
This battery solution is designed for IoT electronic label devices, widely used in warehouse management, asset tracking, and industrial identification applications.
Electronic labels typically require long-term standby or intermittent wake-up operation, maintaining stable power during data collection and information updates, with high requirements for battery life, low self-discharge, and wide temperature adaptability.
Project Challenges
- The device requires long-term standby operation with high demand for battery endurance
- Stable voltage is required during intermittent communication and data refresh cycles
- Harsh warehouse and industrial environments require strong temperature adaptability
- Large-scale deployment demands high consistency and safety performance
Customized Battery Solution
- High-voltage platform: 7.2V output design for stable power supply of electronic labels
- Flame-retardant housing: ABS+PC UL94 V-0 enclosure for enhanced structural safety
- Multi-level protection: overcharge, over-discharge, overcurrent, short-circuit, and temperature protection
- Wide-temperature compact design: -20～60℃ operation range for space-limited devices
Application Results
- Improved continuous operating capability and extended single-cycle runtime
- Enhanced data refresh and communication stability, reducing disconnection risk
- Improved reliability in complex temperature environments
- Compact design increases device integration flexibility
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
