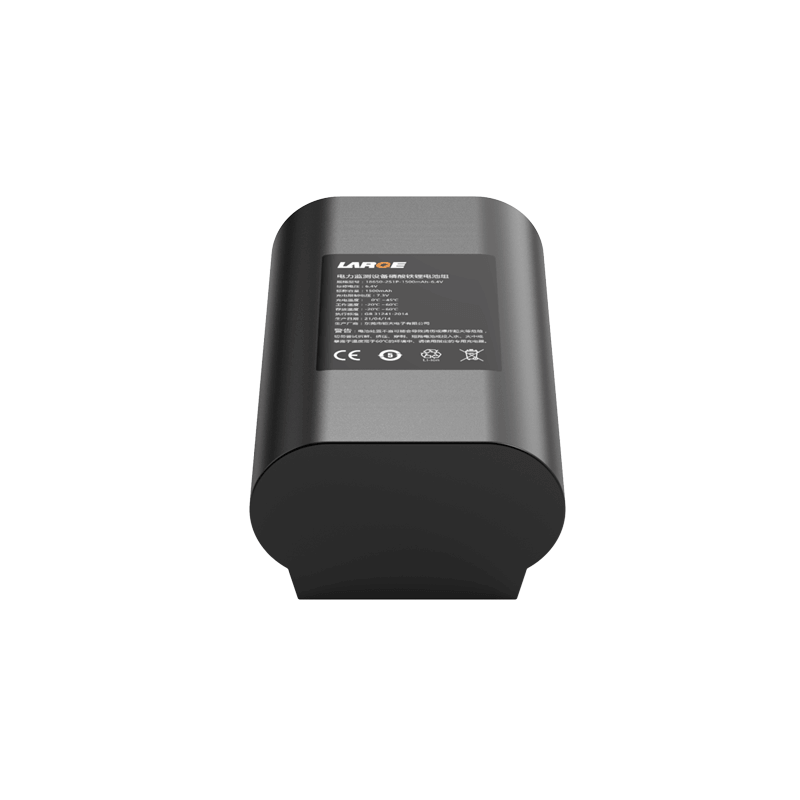

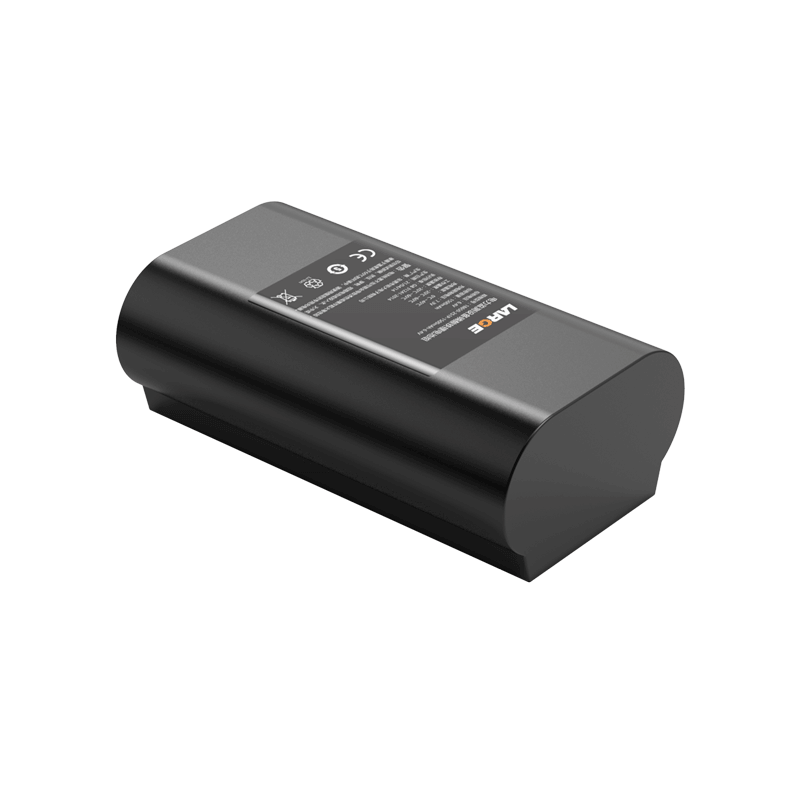

18650 6.4V 1500mAh Samsung Battery for Power Monitoring Equipment
Product Number:
34AQ020-03
Nominal voltage:
6.4V
Nominal capacity:
1500mAh
Battery Configuration:
18650-2S1P
Dimension:
67 × 37.5 × 19.7 mm (Max)
Application:
power testing equipment
Stable Power Output, PVC Heat Shrink Pack, Multi Protection System
Product Overview
This battery is designed for power testing equipment, supporting portable inspection and continuous measurement applications. Featuring stable power output and a compact PVC-wrapped structure, it ensures reliable long-duration operation in demanding testing environments.
Electrical Specifications
| Attribute | Parameter |
|---|---|
| Product Number | 34AQ020-03 |
| Cell Model | 18650-1500mAh-3.2V |
| Battery Configuration | 18650-2S1P |
| Nominal Voltage | 6.4V |
| Nominal Capacity | 1500mAh |
| Rated Energy | 9.6Wh |
| Charging Voltage | 7.3V |
| Standard Charging Current | ≤1.6A |
| Standard Discharge Current | ≤1.6A |
| Discharge Cut-off Voltage | 5.0V |
| Internal Resistance | ≤280mΩ |
Mechanical & Environmental
| Attribute | Parameter |
|---|---|
| Charging Temperature | 0～45℃ |
| Discharge Temperature | -20～60℃ |
| Storage temperature | -20～35℃ |
| Dimensions | 67 × 37.5 × 19.7 mm (Max) |
| Weight | 610g |
| Battery Case | Blue PVC Heat Shrink Film |
| Protection System | Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection |
We support flexible customization based on your project requirements, including:
- Voltage range: 3.2V – 72V
- Capacity range: 100mAh – 100Ah
- Electrical performance design: Charge/discharge parameters, C-rate, internal resistance, temperature performance
- Mechanical design: Appearance, dimensions, housing material, and integrated structural engineering
- BMS design: Battery protection, cell balancing, and communication protocols (SMBus / I2C / UART)
Get a Custom Battery Solution
Tell us about your project needs. Our engineers will provide a tailored battery solution and quotation within 24 hours.
