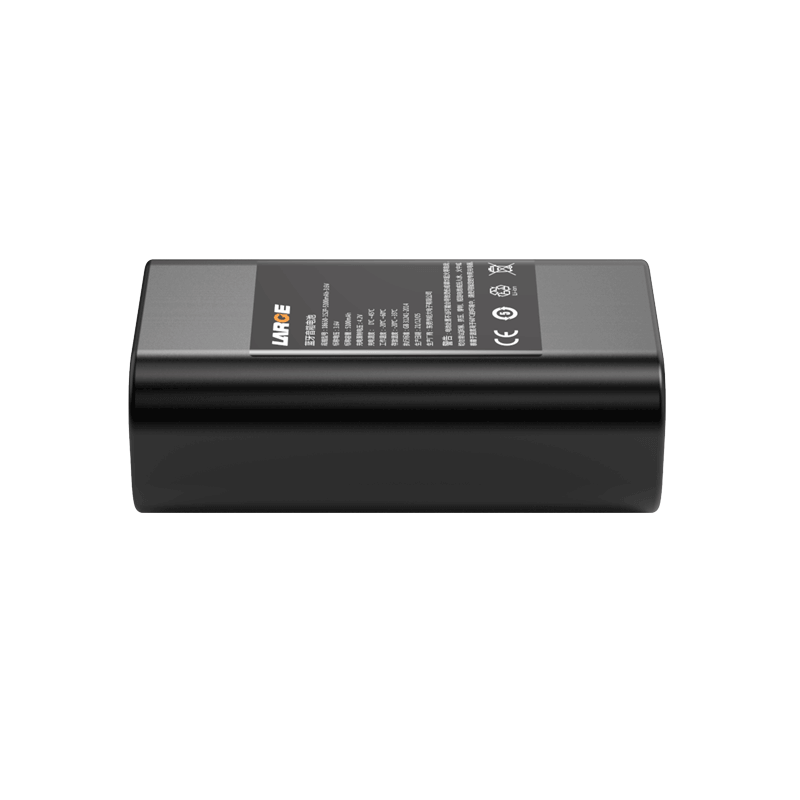

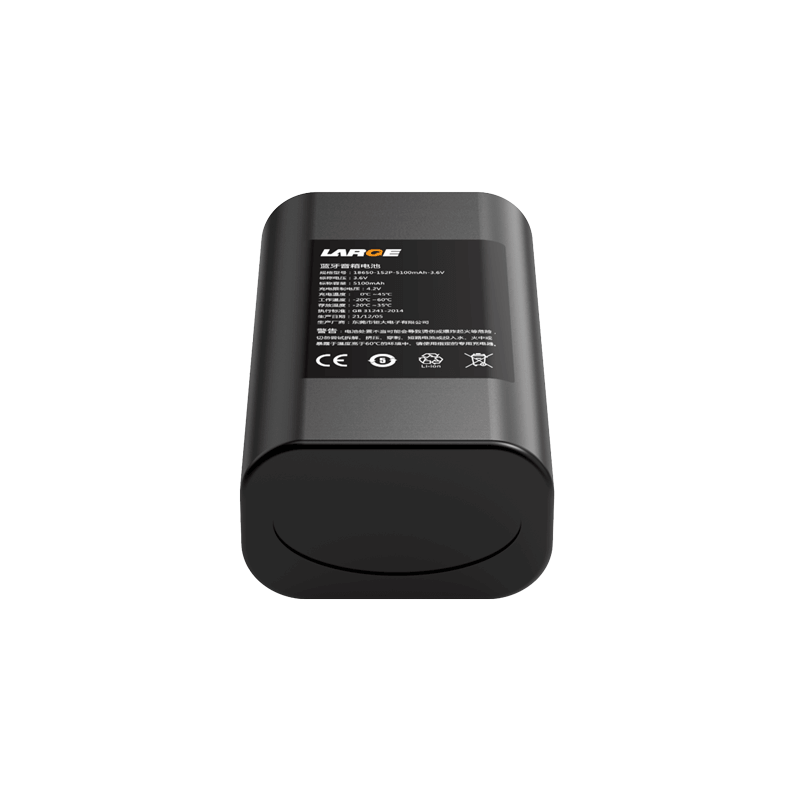

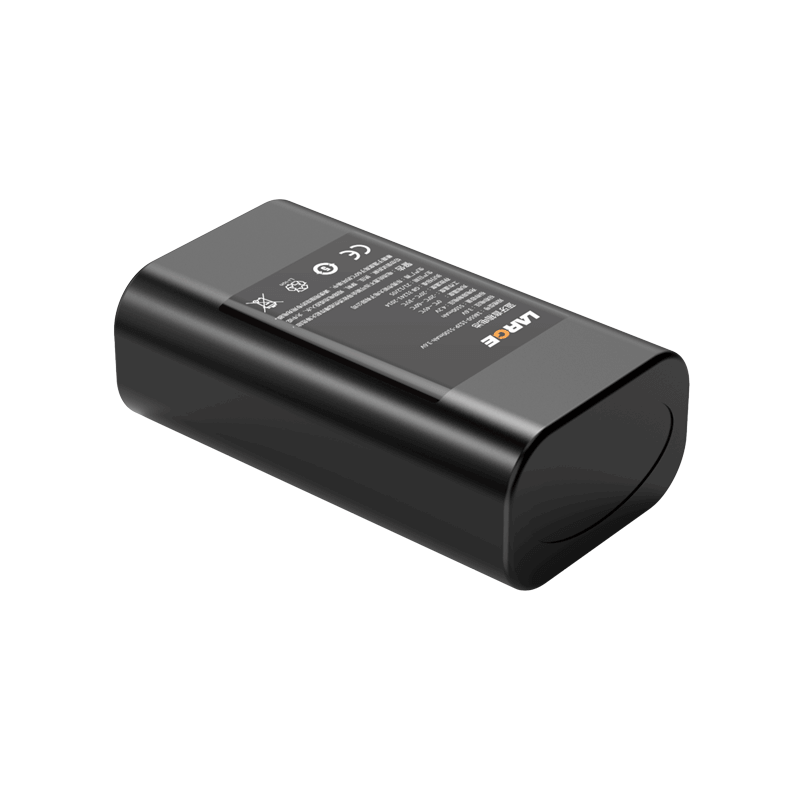

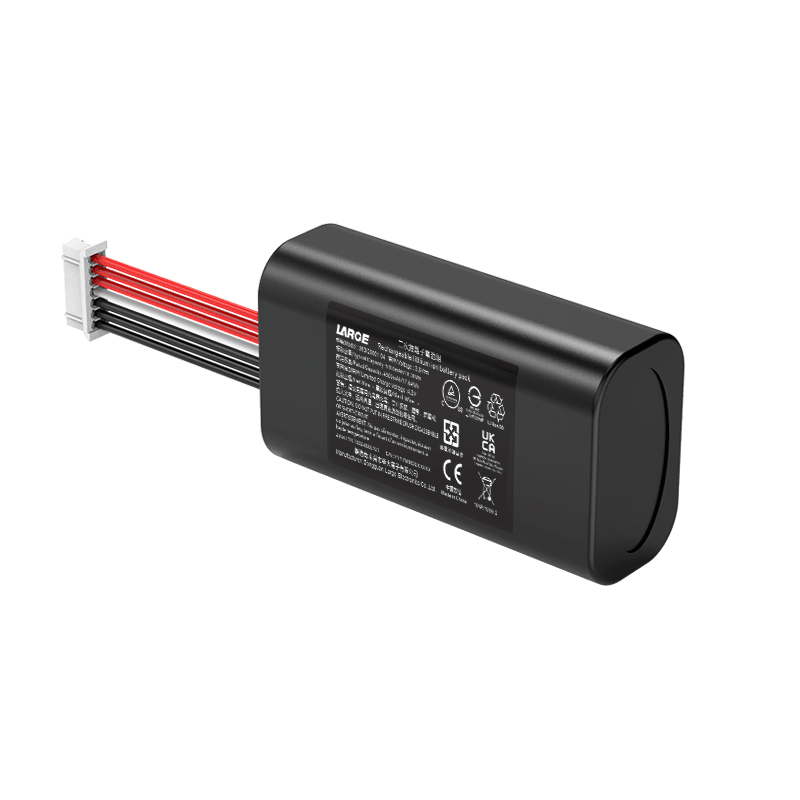

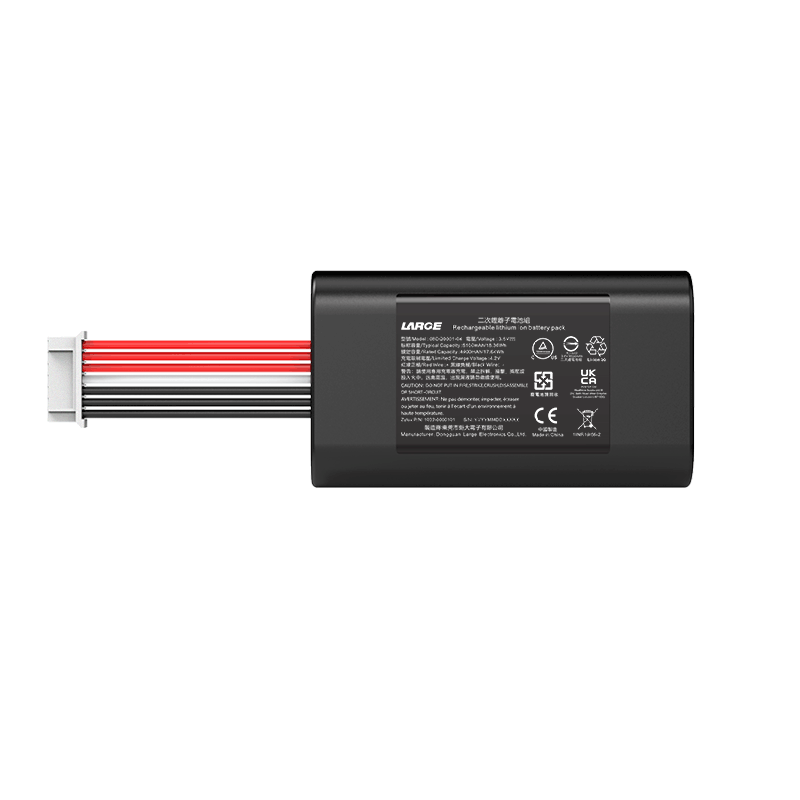

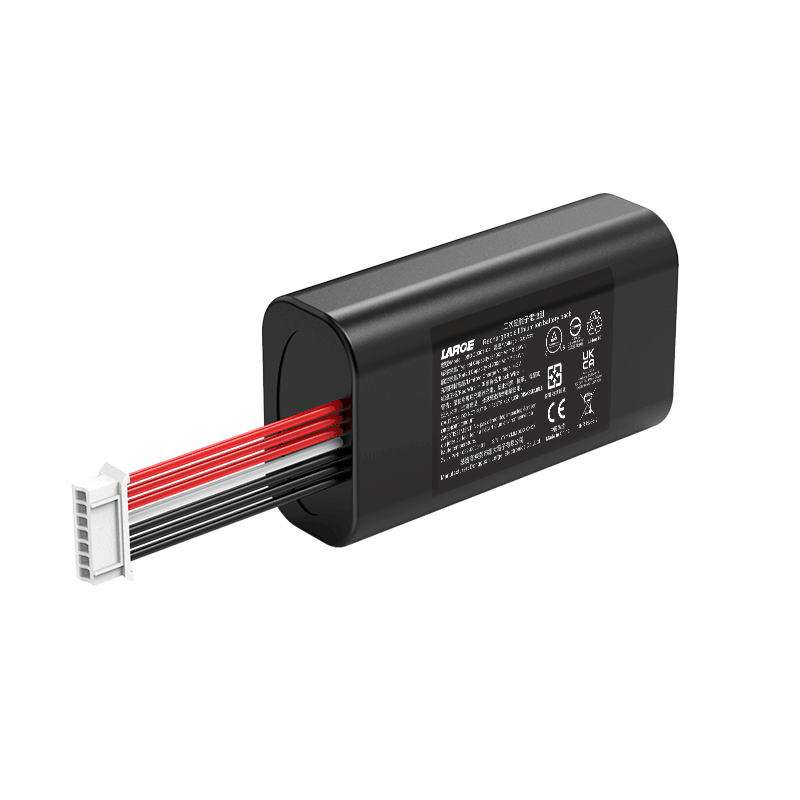

18650 5100mAh 3.6V Lithium-ion Battery for Bluetooth Speaker

18650 5100mAh 3.6V Lithium-ion Battery for Bluetooth Speaker
18650 5100mAh 3.6V Lithium-ion Battery for Bluetooth Speaker
18650 5100mAh 3.6V Lithium-ion Battery for Bluetooth Speaker
18650 5100mAh 3.6V Lithium-ion Battery for Bluetooth Speaker

Product Detail

Product number: 08DQ0001-04

Cell model: 18650-2550MAH-3.6V

Specification: 18650-1S2P-5100MAH-3.6V

Product size: 68*38*23mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 5100mAh

Charging voltage: 4.2V

Charging current: ≤ 2.4A

Discharge current: ≤ 2.4A

Discharge cut-off voltage: 4.2V

Finished product internal resistance: ≤120mΩ

Battery weight: 100G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Bluetooth speakers, handheld devices, portable devices


Product Features

1.Blue PVC heat shrinkable film is simple, reliable and easy to install.

2.Connector output terminal: The JST plug is used to output data to increase the reliability of electrical conduction.

3.Battery management: Adopt protective chip dedicated for lithium battery, which has good stability, high precision monitoring, precise control, and ESD protection, eliminating safety risks to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
